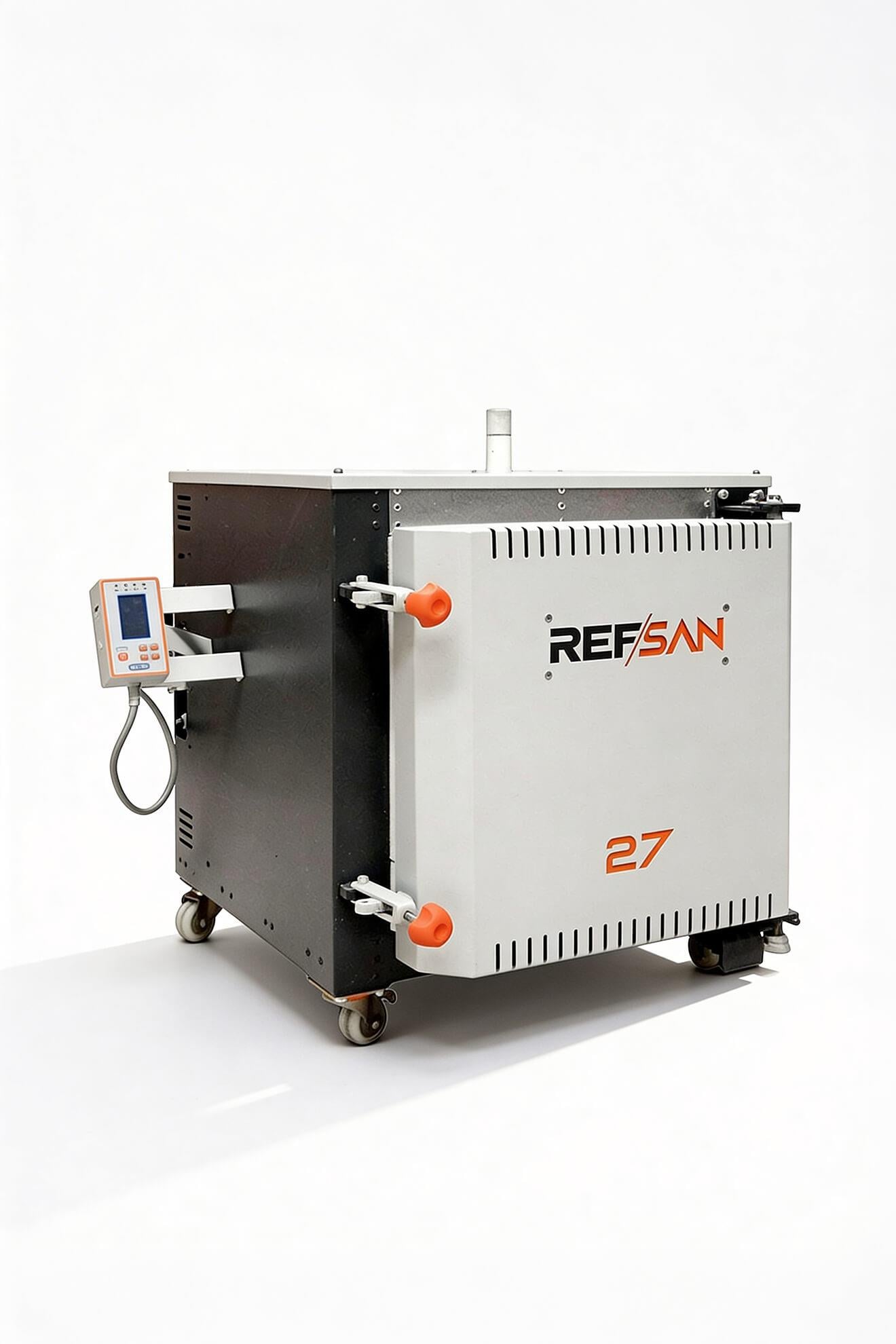

27 Liter Front-Loading • 1320°C Porcelain, Stoneware and High-Fire Kiln
RD27 Porcelain Kiln is a 27-liter front-loading chamber kiln developed for the controlled firing of porcelain, stoneware, high-fire clay bodies and glazes. With a maximum operating temperature of 1320°C, it can be used for both low-fire and high-fire glaze and clay applications. Due to its compact capacity, it is more suitable for porcelain samples, glaze and clay recipe testing, small-batch product firings and R&D work than high-volume production. It can also be used in a home environment when the required installation and electrical conditions are provided.
RD27 offers a wide operating temperature range for firing ceramic bodies that require high temperatures, such as porcelain and stoneware. It can be used for small porcelain forms, test tiles, mugs, bowls, small vases and various sample pieces.
Its 27-liter internal capacity is useful for users who want to test a new porcelain clay body, stoneware body or glaze recipe before operating a larger kiln.
With a maximum temperature of 1320°C, it can be used with porcelain, stoneware, high-fire clay bodies and high-fire glazes as well as low-fire ceramic clay bodies and low-fire glazes. The firing temperature specified by the manufacturer of each material should be followed.
The 1430°C-resistant high-density alumina bricks used in the RD27 firing chamber help retain heat inside the kiln during firings up to 1320°C. A robust insulation structure is particularly important for high-fire porcelain and stoneware firings.
The Kanthal A1 heating elements used in the heating system are high-quality resistance elements preferred for high-temperature applications. The coordinated operation of the heating elements, insulation, thermocouple and control system supports consistent and repeatable results in high-fire applications.
RD27 combines a 27-liter working capacity, 1320°C maximum temperature, programmable control system and high-temperature-resistant kiln components. Its design is suitable for controlled testing of porcelain, stoneware, high-fire glazes and clay bodies.
With the RF860 controller, temperature increases, target temperatures and hold times can be adjusted according to the porcelain or stoneware firing program.
The thermocouple system measures the temperature inside the kiln and helps the programmed firing curve progress in a controlled manner.
The 1430°C-resistant high-density alumina brick structure helps retain heat inside the kiln during high-fire applications.
The Kanthal A1 heating element system is used to reach the high temperatures required for porcelain and stoneware firing.
Provides a practical internal capacity for controlled firing of porcelain samples, glaze test tiles, small products and new clay recipes.
The front-opening door design makes it easy to place products, kiln shelves and test samples into the firing chamber.
Can be used for controlled firing and maturation of porcelain bodies with temperature programs suitable for their specific recipes.
Allows high-fire stoneware clay bodies and compatible glazes to be fired within their required temperature ranges.
Suitable for small-scale testing of porcelain clay, stoneware, high-fire glazes, pigments and various raw material recipes.
With a maximum temperature of 1320°C, the RD27 can also be used to fire low-fire ceramic clay bodies and low-fire glazes with suitable temperature programs.
High-fire glazes used for porcelain and stoneware applications can be fired with programs suitable for the firing range specified by the manufacturer.
High-temperature clay bodies such as porcelain and stoneware can be fired up to 1320°C according to their specified technical firing values.
With SuperWise technology, the temperature data and firing program progress of the RD27 porcelain kiln can be monitored from a mobile device. During long high-fire cycles, you can remotely view the kiln's current temperature and the current stage of the program.
The REFSAN RF860 controller is included as standard equipment. WiFi-enabled TC75, TC95 and TX95 controller options are optional.
High-temperature kiln construction and control systems suitable for porcelain, stoneware and high-fire ceramic applications.
High-temperature-resistant internal kiln structure constructed without fiber-based insulation materials.
The front-loading chamber design features a door safety system for safe operation.
The controller and temperature measurement system enable firing programs to be managed according to the specified temperatures and hold times.
The RD16, RD27 and RD50 porcelain kilns offer compact capacity options for different sample and product quantities. With its 27-liter internal capacity, the RD27 is a balanced option for porcelain and stoneware samples, glaze tests and small-batch high-fire applications.
