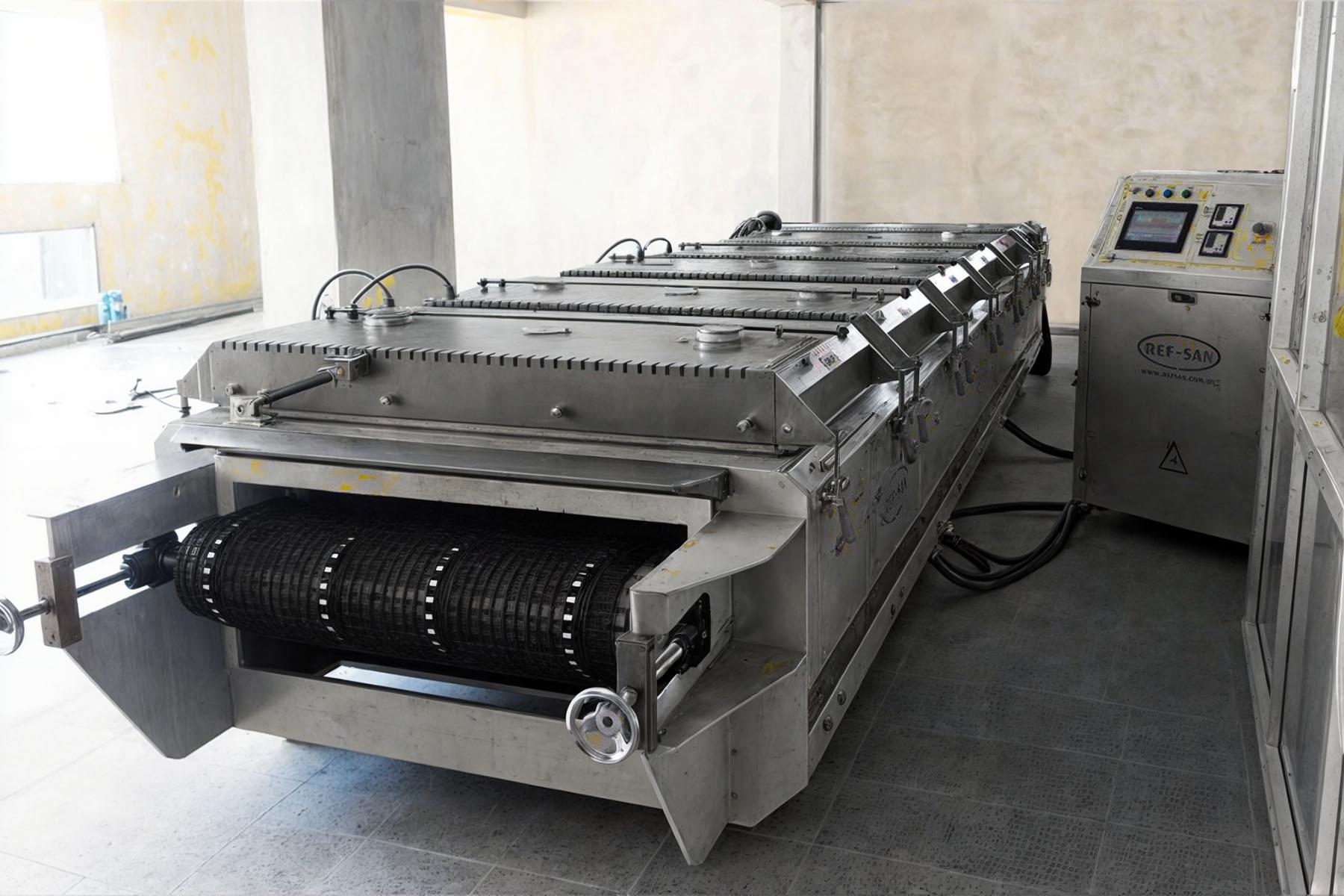

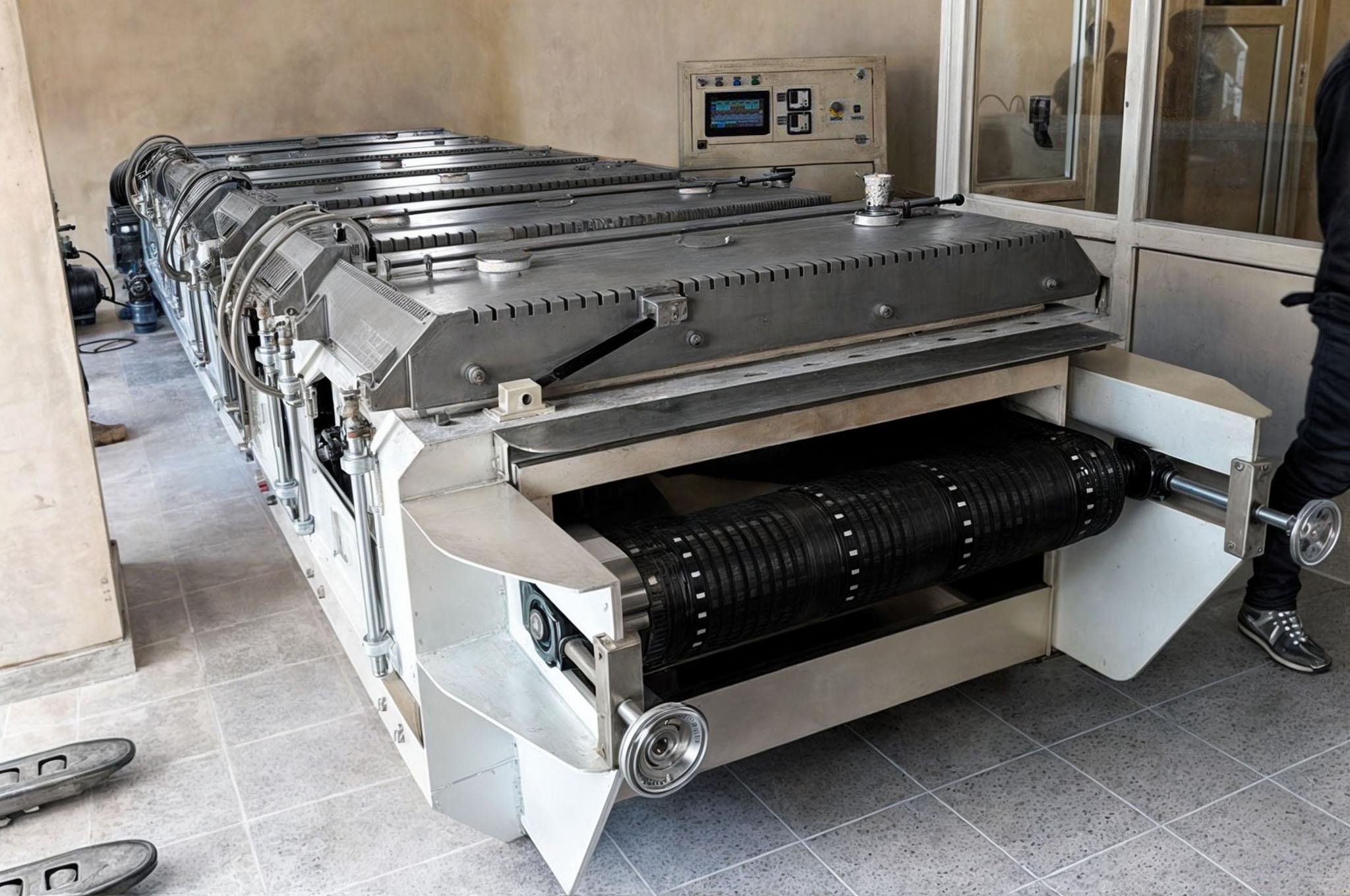

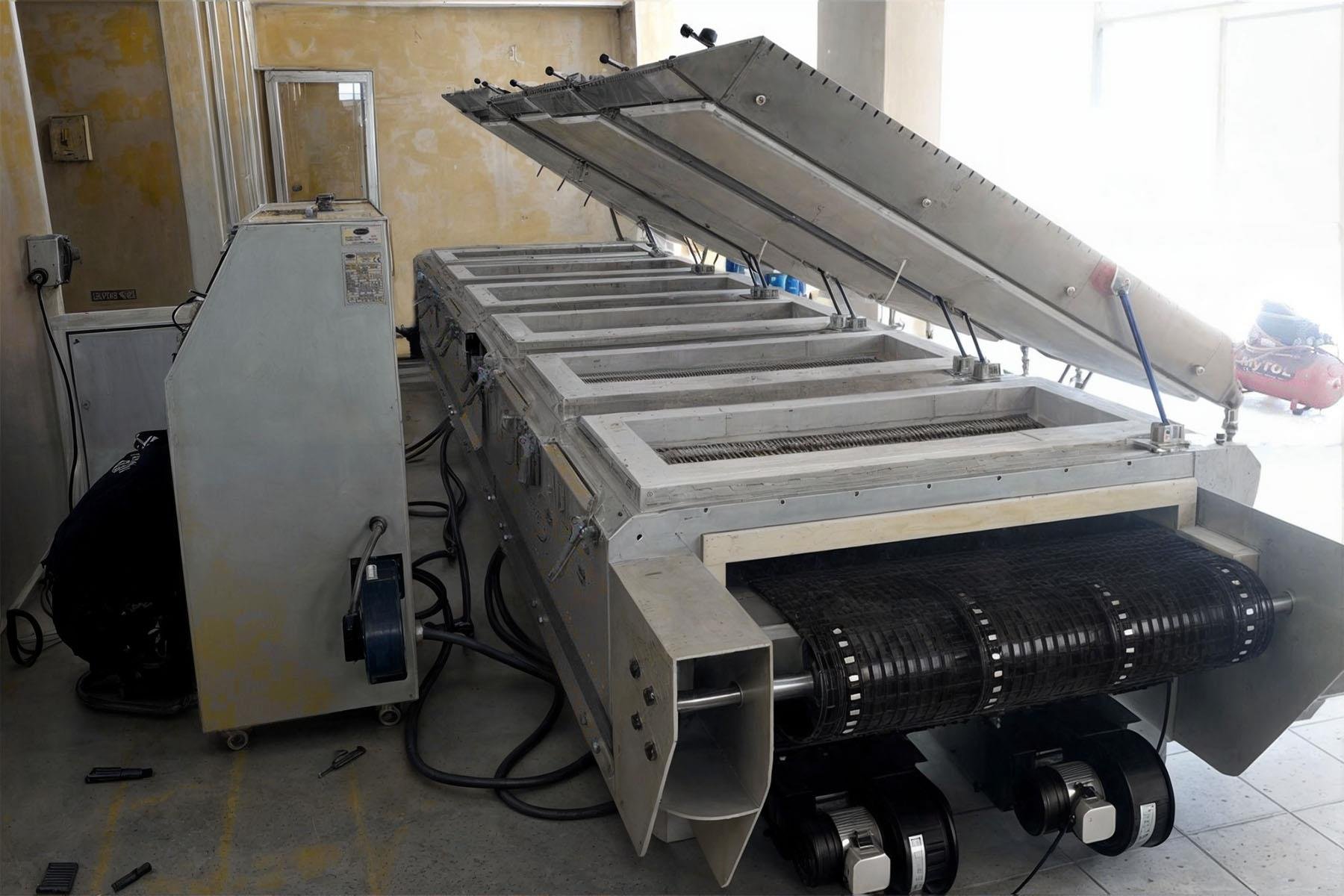

TUNNEL FURNACE WITH WIRE CONVEYOR
TUNNEL FURNACE WITH WIRE CONVEYOR

TUNNEL FURNACE WITH WIRE CONVEYOR (R6949)

0.00
Brand : REFSAN
Price : 0,00€
Barkod : 8681910620612

Tunnel Kiln Technical Specifications



Kiln Type : Wire Belt System

Depending on the shape and thickness of the product, the belt speed and temperature are adjusted by the operator




Note :

Please contact for different sizes. 0.274.225 17 18
24 months or 36 months leasing is recommended. 1% VAT.

Kiln Type
TUNNEL FURNACE
Maximum Temperature
1100°C
Inner Dimensions (WxDxH)
100x2500x35cm
Power
400V
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
TOP+FLOOR
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Total Length
27 mt
Chamber Length
2500cm
