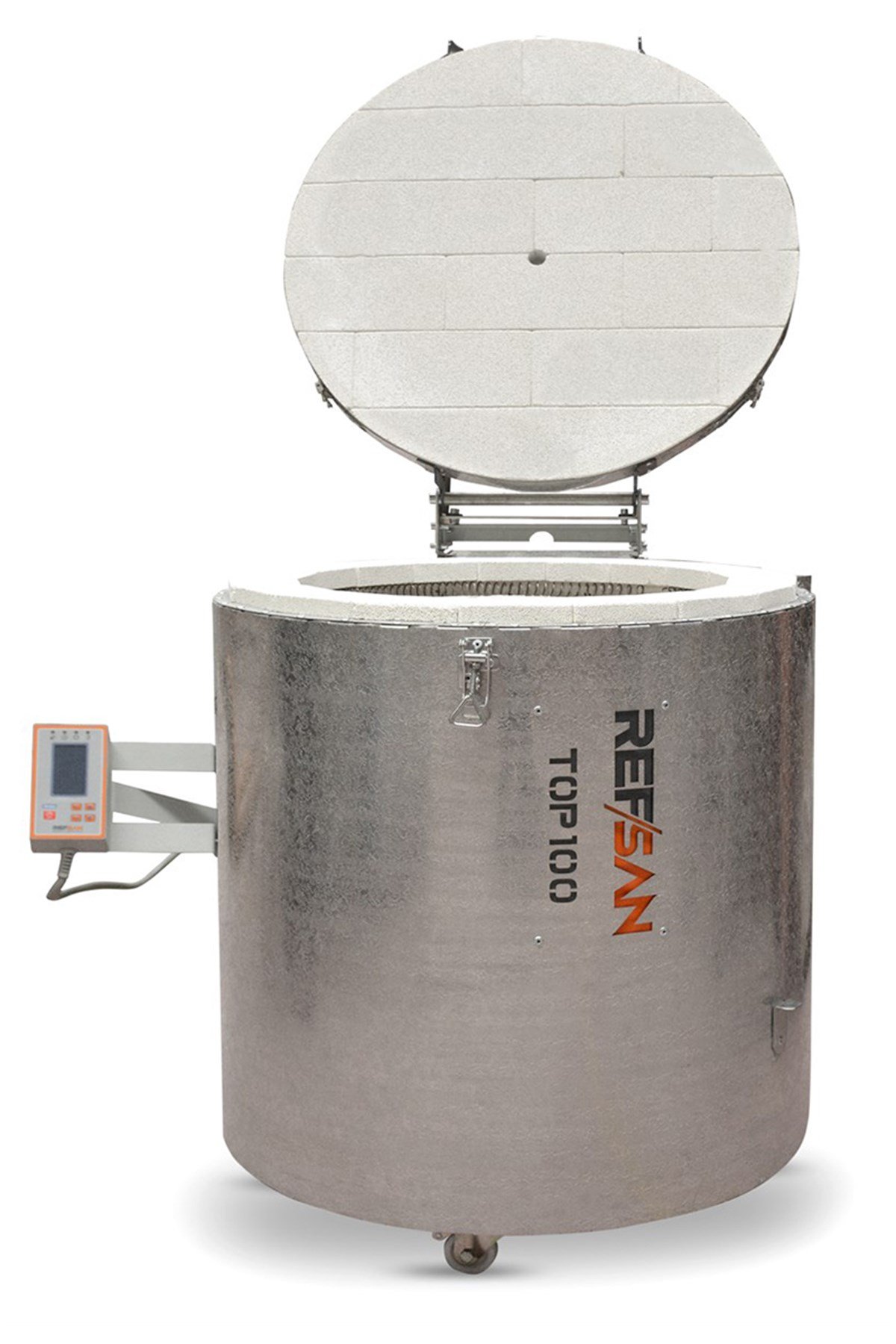

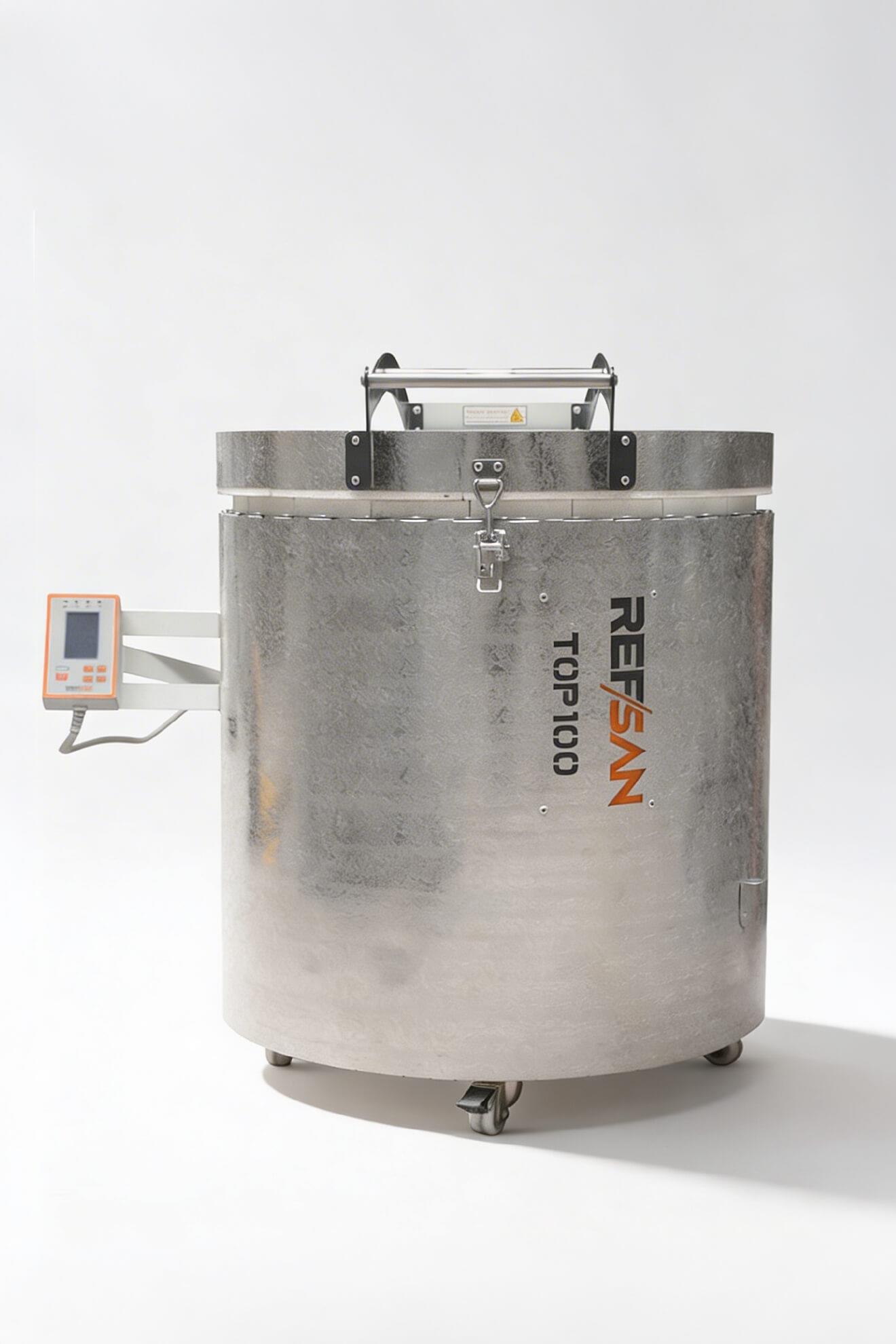

Top 100 Top Loading Kiln (R11730)

3.3
Brand : REFSAN
Discount Rate : %15 Discount
Price : 4.248,00€
Discounted : 3.600,00€
Barkod : 8681910644076
Refsan Logo

TOP SERIES

Top-Loading Kilns

TOP100 Large Internal Capacity, Maximum Efficiency

TOP100 offers the ideal balance of capacity and performance for workshops transitioning into professional production. Thanks to its 480 mm internal chamber diameter, large plates, vases and specially shaped pieces can be placed with ease.

With its advanced digital programmer, users can save 5 different firing programs, access reports from the last 8 firings and manage processes with greater control. Reaching working temperatures up to 1320 °C, it delivers reliable and professional results in high-temperature ceramic applications, especially porcelain.

Portable Design
Insulation

High Heat Insulation and Kanthal A1 Resistance System

The 1430 °C resistant alumina brick system used on the inner surface of the kiln provides strong insulation and stable performance at high temperatures. The insulation structure is designed with user health in mind, avoiding carcinogenic substances and fiber-based materials. Kanthal A1 resistance wires provide balanced heat distribution during professional firing processes.

Manage Your Kiln Without Being Tied to the Workshop

With REFSAN WiFi kilns and the SuperWise app, monitor your firing process instantly from your phone. Easily check temperature, program status and operating data to manage your kiln more safely and efficiently.

Real-Time Temperature Monitoring
Remote Start and Stop
Power and Voltage Analysis
Safe Firing Control
The REFSAN RF860 programmer is included as standard equipment. WiFi-supported TC75, TC95 and TX95 options can be added optionally.
SuperWise App

"Zero Risk" Standard in Your Workshop

Your health is our standard.

100% European Alumina Brick

European Alumina Brick

An insulation system designed with health sensitivity in mind.

Safety Lock

Safety Lock

A safety structure that automatically cuts power when the lid is opened.

Smart Control

Smart Control

A stable and safe operating experience with advanced protection algorithms.

Technical Specifications

TOP 80 TOP 80
TOP 100 TOP 100
TOP 140 TOP 140
Internal Diameter
Internal Diameter
Internal Diameter
480 mm
480 mm
550 mm
Internal Height
Internal Height
Internal Height
460 mm
575 mm
575 mm
Power
Power
Power
9 kW
10 kW
12 kW
Mug Capacity
Mug Capacity
Mug Capacity
68 pcs ~
85 pcs ~
130 pcs ~
Weight
Weight
Weight
130 kg ~
160 kg ~
180 kg ~
WiFi Kilns Logo

Programmer Options

Features
REFSAN RF860

TC75

TC95

TX95
Display Type Digital, 9-line information display LED 2.8-inch TFT Color 4.1-inch High Resolution
Program / Step Count 5 Programs / 15 Sets 6 Programs / 4 Steps 20 Programs / 20 Steps 100 Programs / 50 Steps
WiFi & Remote Monitoring - Available Available Available
Power and Voltage Monitoring - - - Available (Smart Analysis)
Detailed Kiln Analysis Last 8 reports Available Available Available
TOP series kilns include the REFSAN RF860 programmer as standard equipment. TC75, TC95 and TX95 options are optional for WiFi features.
```
Model
TOP100
Kiln Type
TOP LOADING
Volume
100 LT.
Maximum Temperature
1200°C 1320°C
Inner Diameter
480 mm
Inner Height
575 mm
Outer Height
940 mm
Outer Dimensions (WxDxH)
90x70x95cm
Weight
160 kg
Phase
Three-phase Single-phase
Power
230V 400V
Cable Thickness - Fuse
230V TOP Model İçin; Kablo Kalınlığı 3X10 - Sigorta (Amper) 1X50 400V TOP Model İçin; Kablo Kalınlığı 5X4 - Sigorta (Amper) 3X25
Connected Load kW
10kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Structure of Body
Stainless Steel (304 Grade)
Contact Type
SSR
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Control Unit ( Optional)
Bentrup TC705 ( Germany)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
38cm Ø Diameter Round Kiln Shelf
