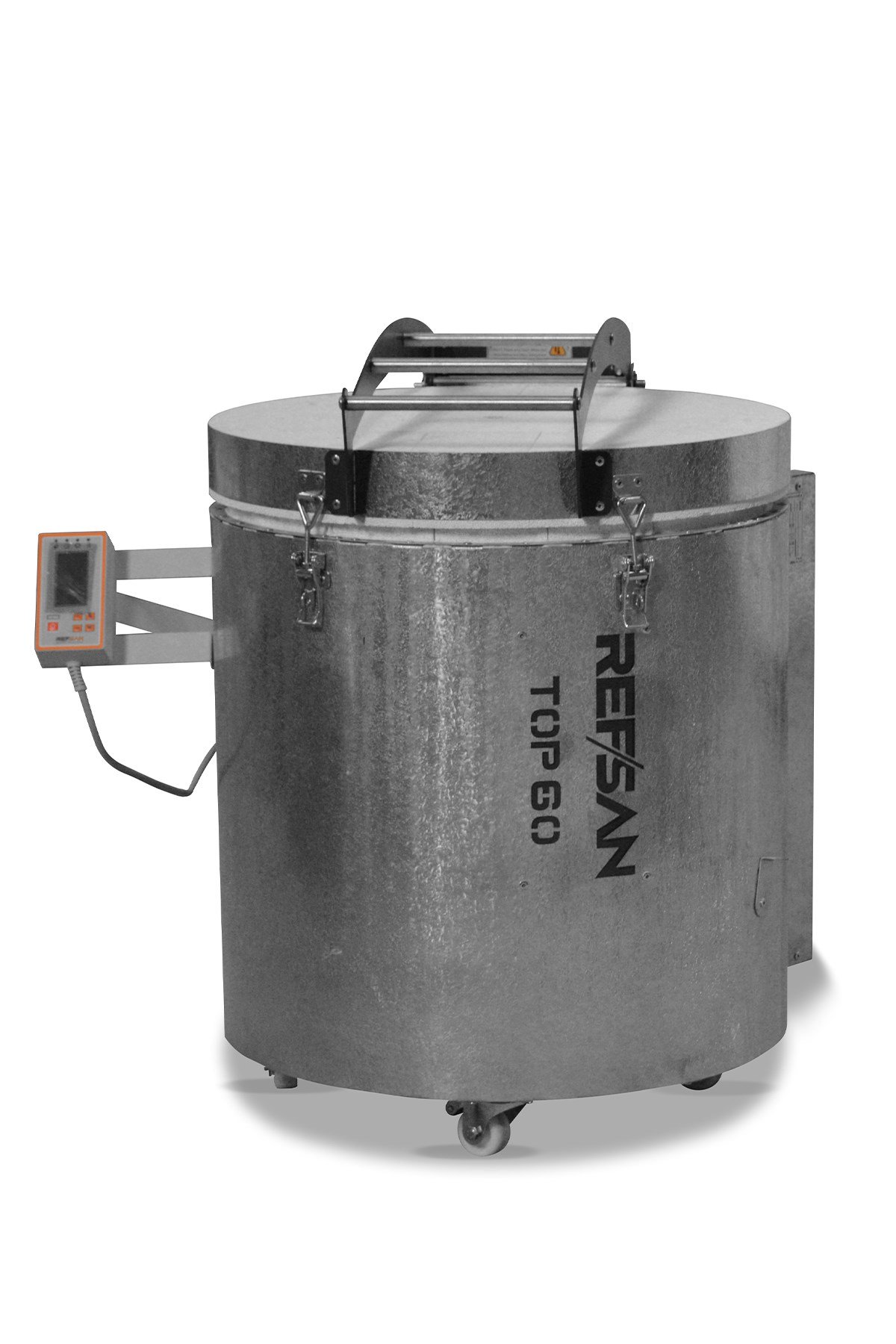

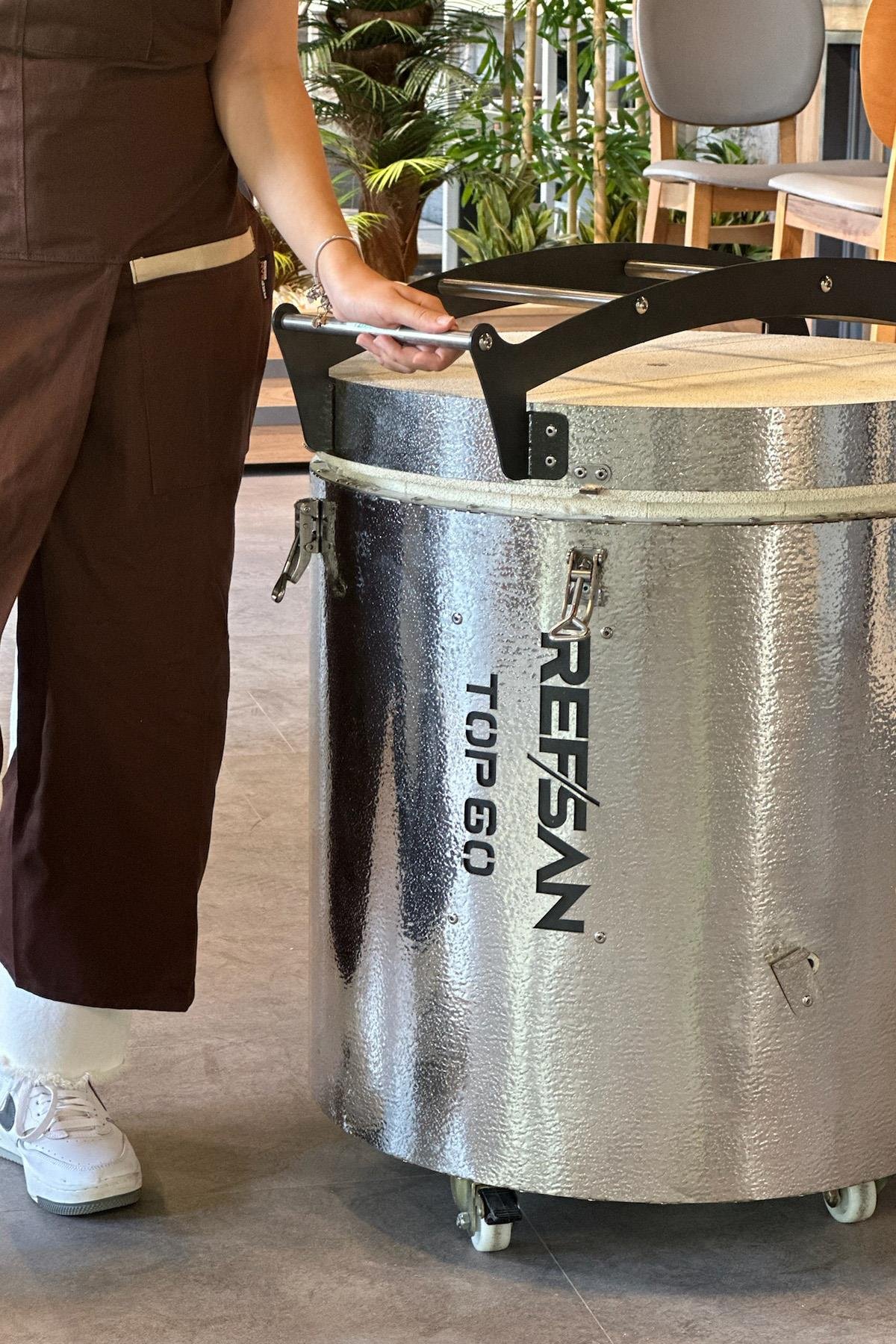

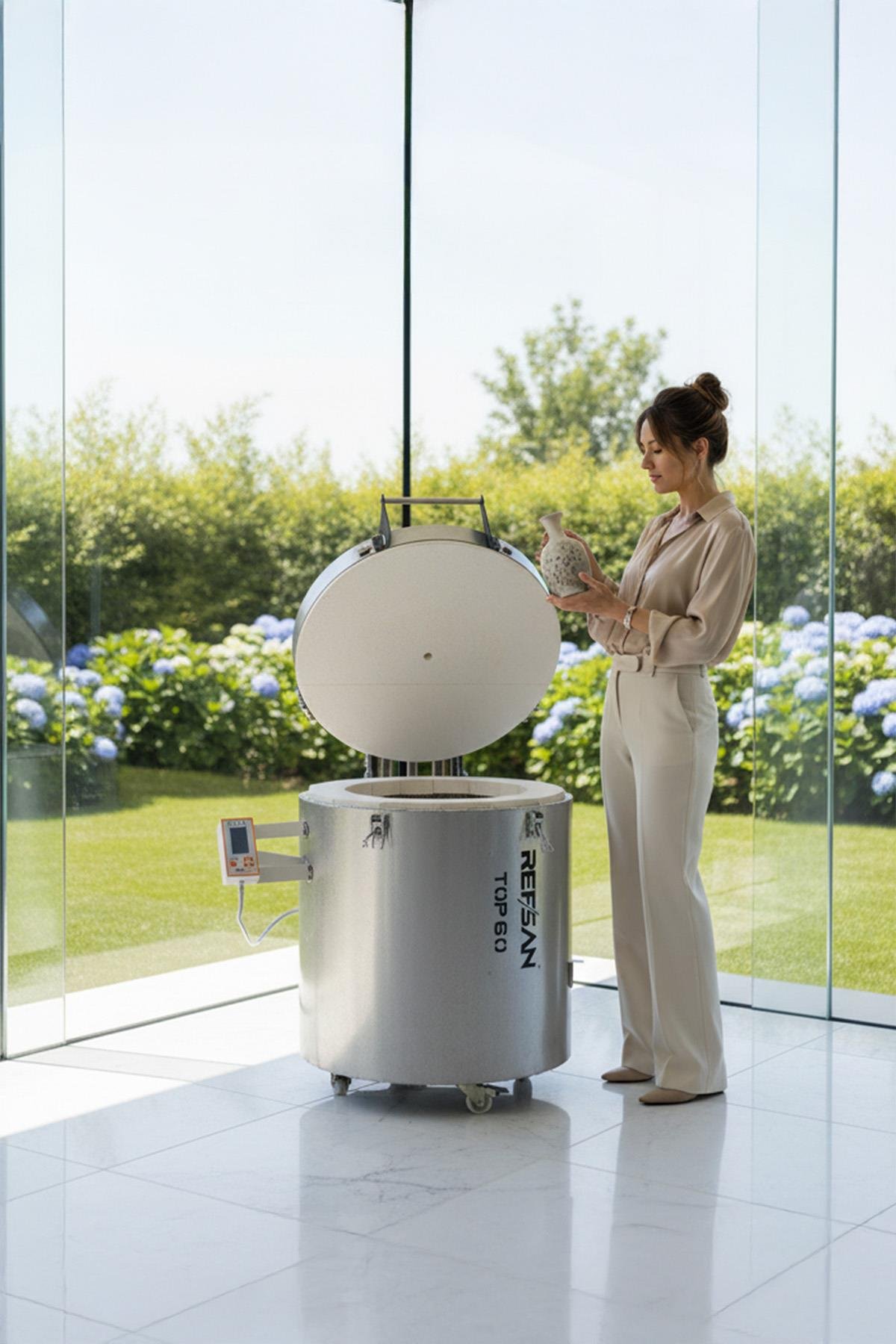

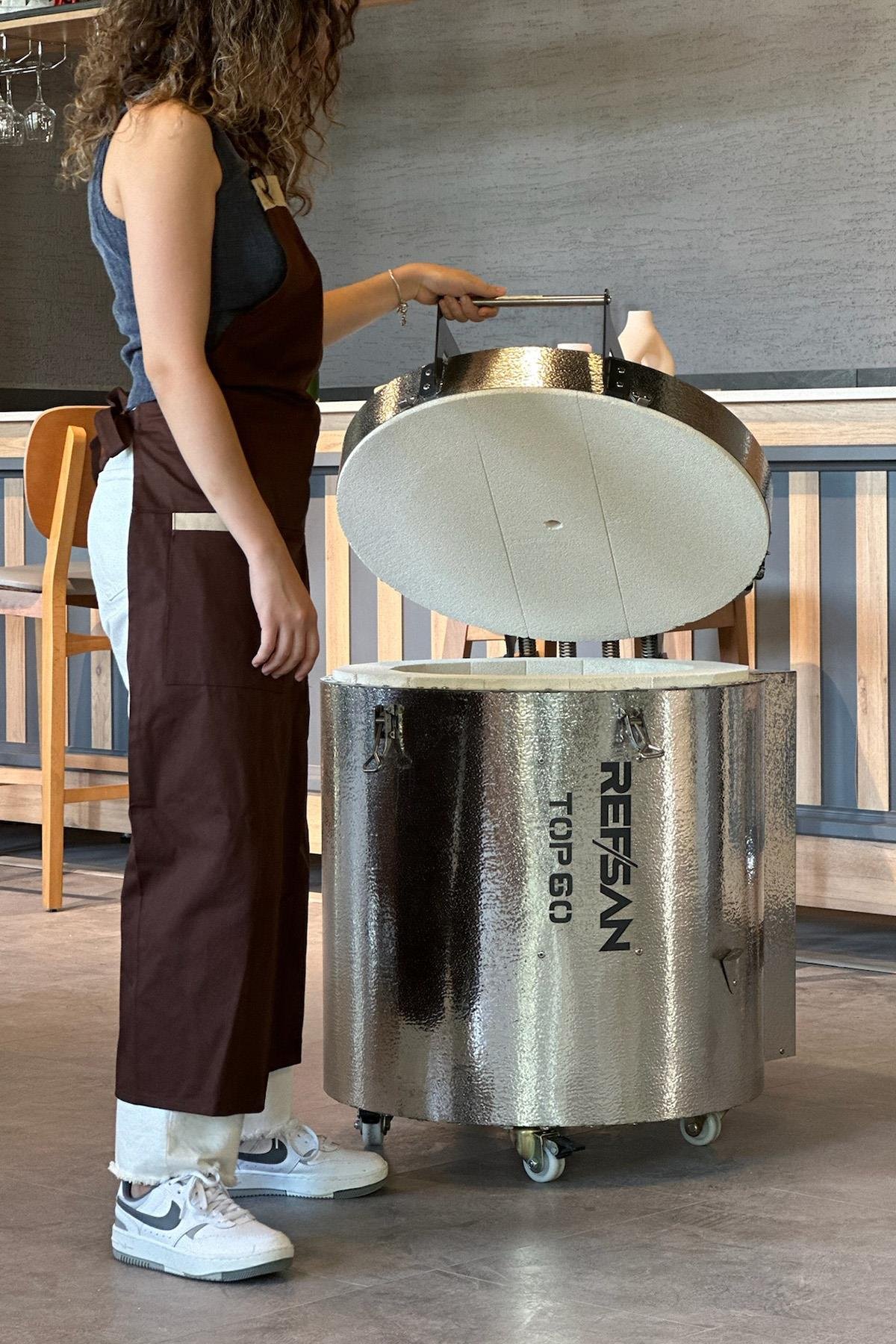

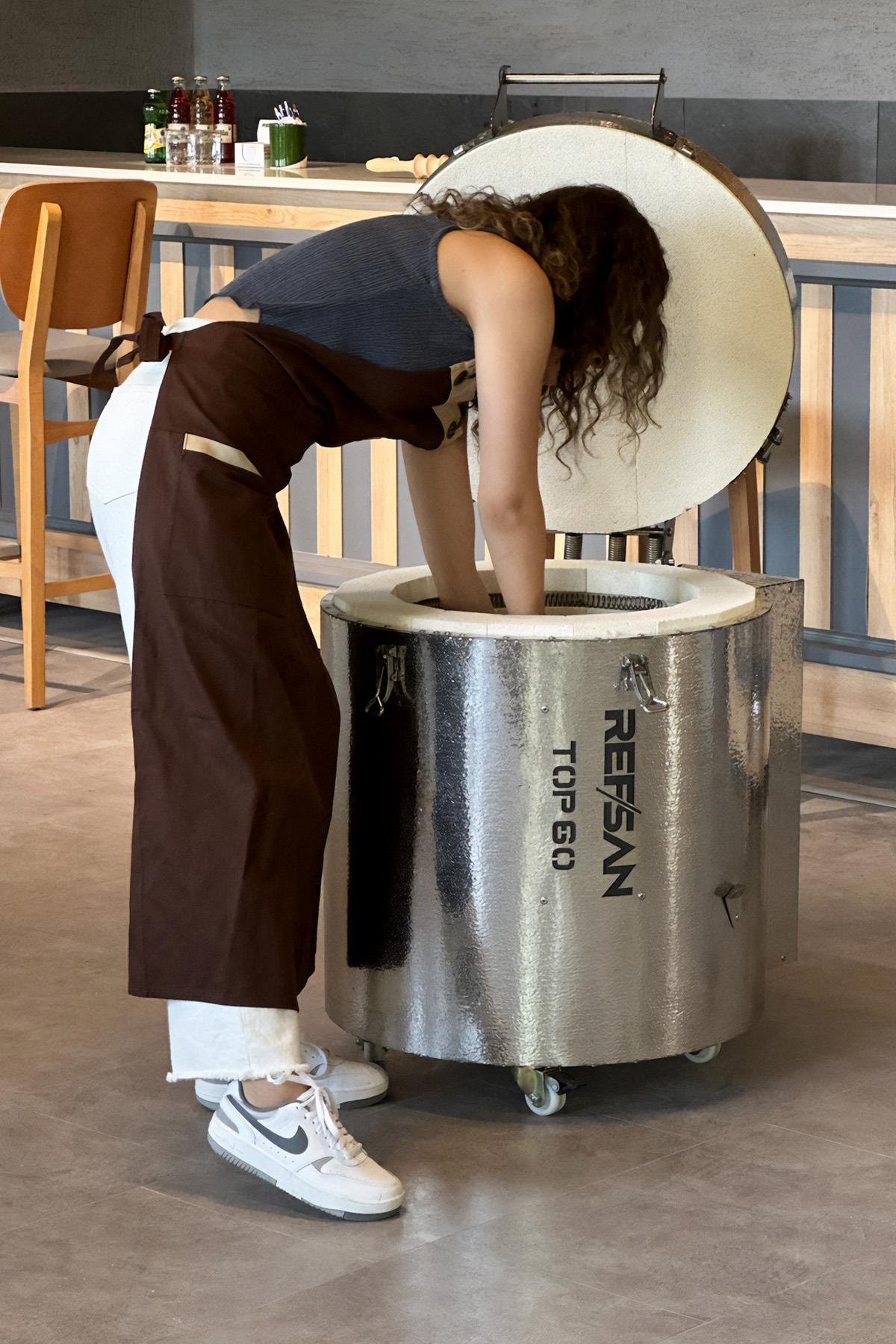

Top 60 Top Loading Kiln
Top 60 Top Loading Kiln
Top 60 Top Loading Kiln

TOP LOADING KILNS



Top-loading kilns are preferred by studio artists, workshops, and potters with its decorative designs, low weights, low energy consumptions, and high-temperature ranges.

Refsan has been producing top-loading kilns that their temperatures between 30-1300°C, and volumes between 16 up to 270 liters. The top-loading kilns quality that is produced by Refsan is preferred and approved by the ceramic artists and potters.

All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate



Model
TOP60
Kiln Type
TOP LOADING
Volume
60 LT.
Maximum Temperature
1200°C 1320°C
Inner Diameter
410 mm
Inner Height
460 mm
Outer Height
830 mm

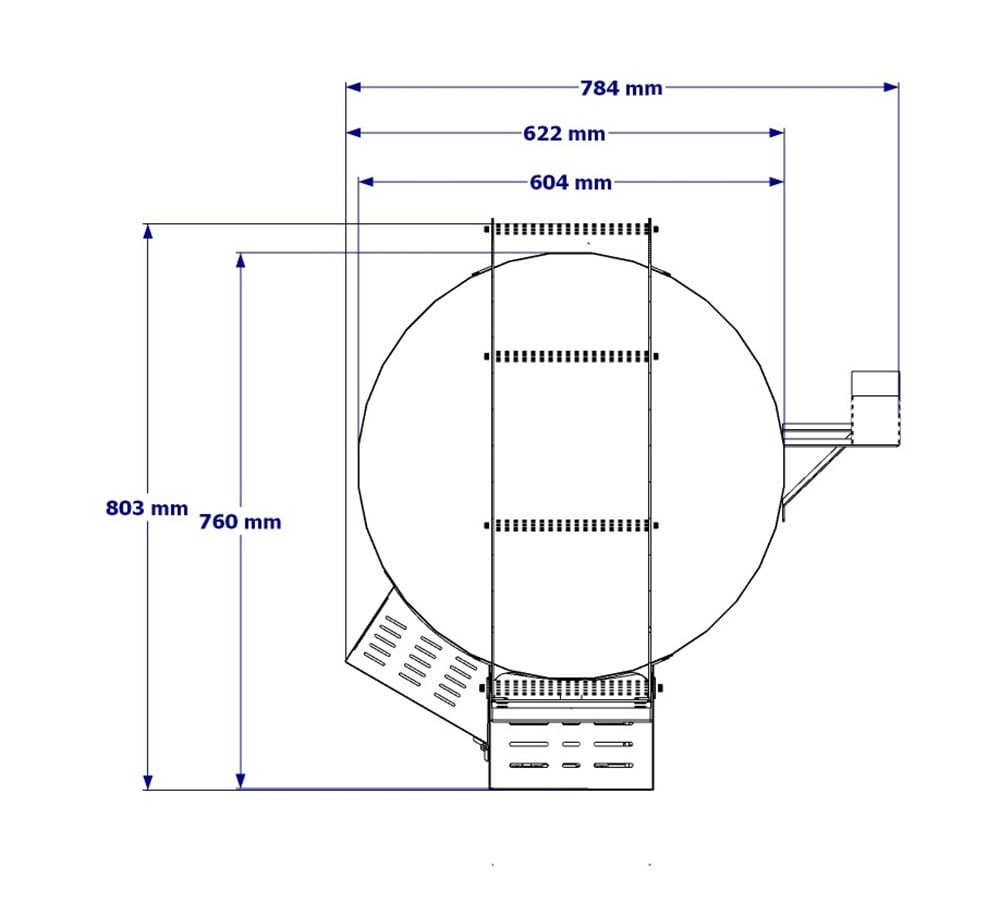

Outer Dimensions (WxDxH)
85x60x80cm
Weight
120 kg
Phase
Three-phase Single-phase
Power
400V 230V
Cable Thickness - Fuse
230V TOP Model İçin; Kablo Kalınlığı 3X6 - Sigorta (Amper) 1X40 400V TOP Model İçin; Kablo Kalınlığı 5X2,5 - Sigorta (Amper) 3X20
Connected Load kW
7kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Themocouple Count
1 (Middle-Back)

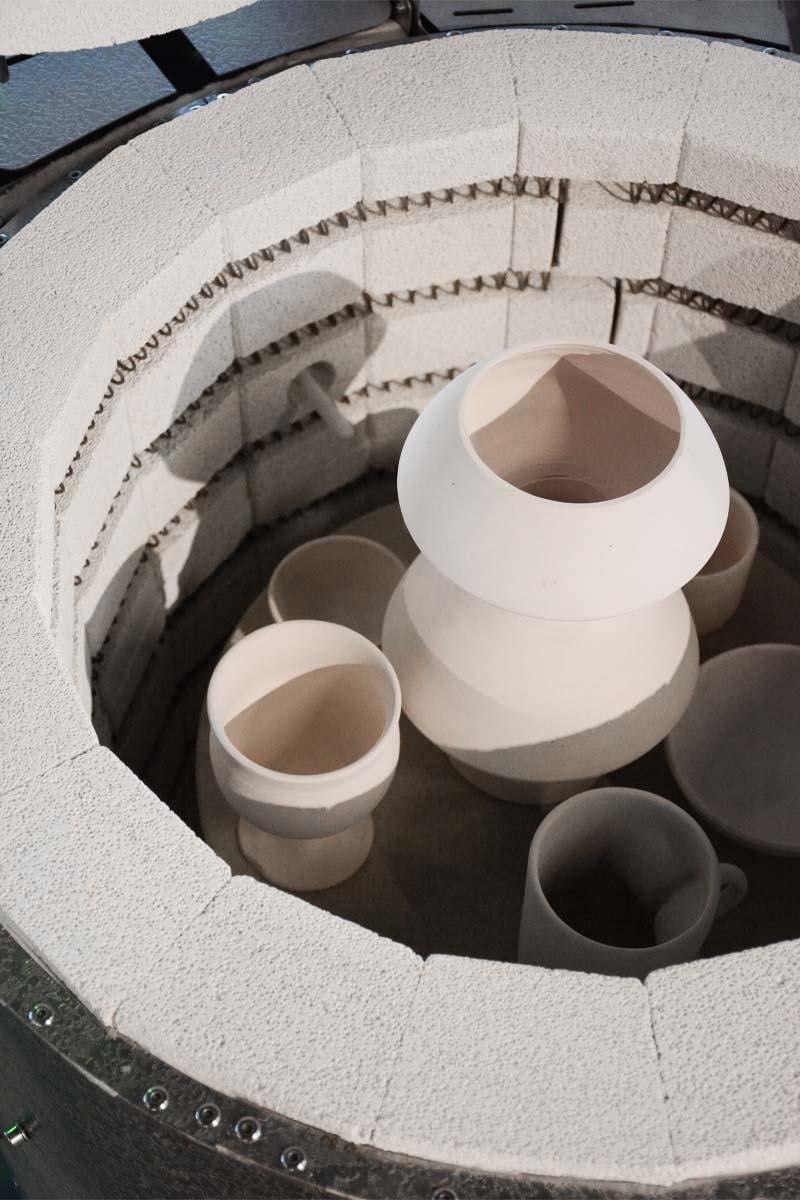

Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Structure of Body
Stainless Steel (304 Grade)
Contact Type
SSR
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
35cm Ø Diameter Round Kiln Shelf
