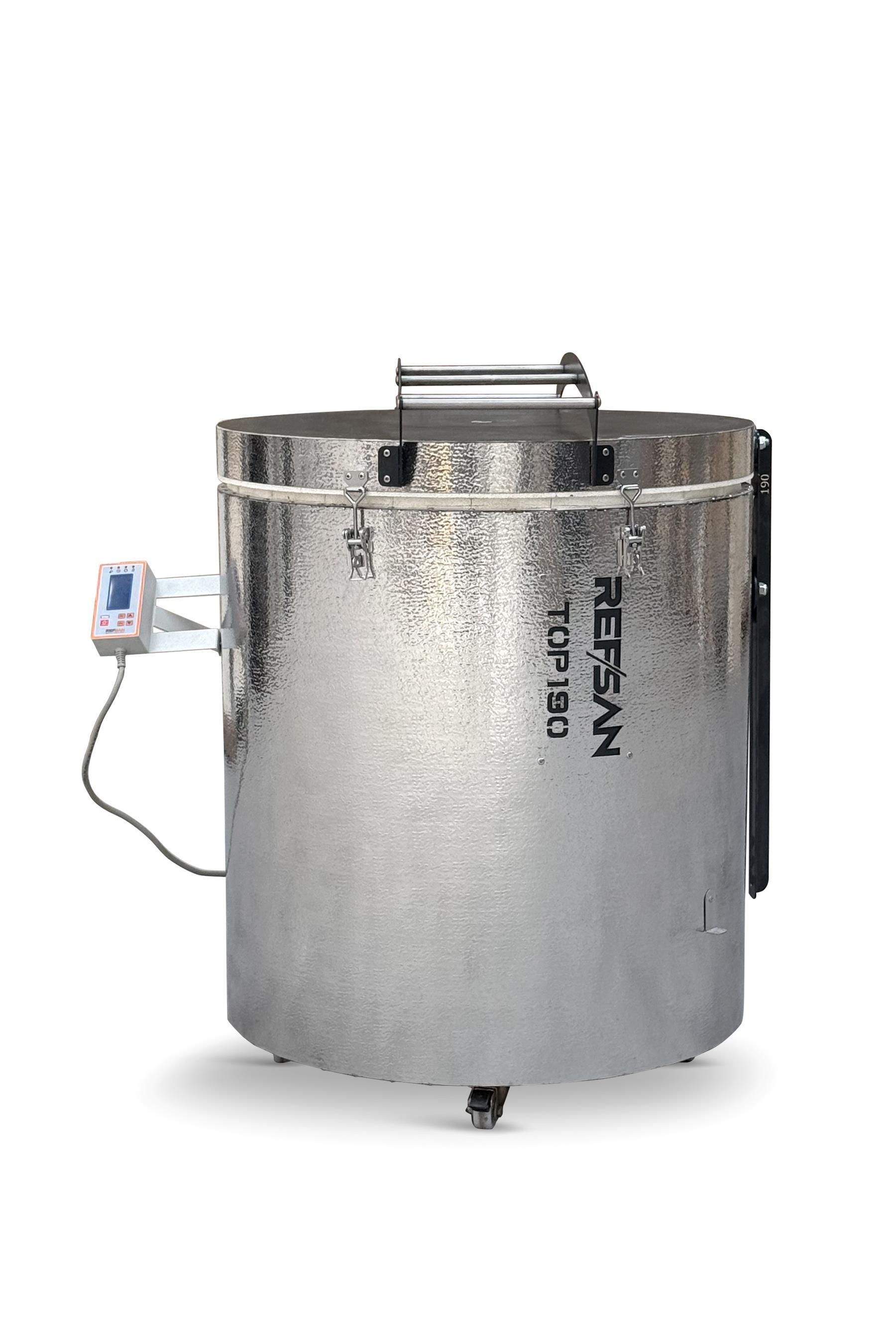

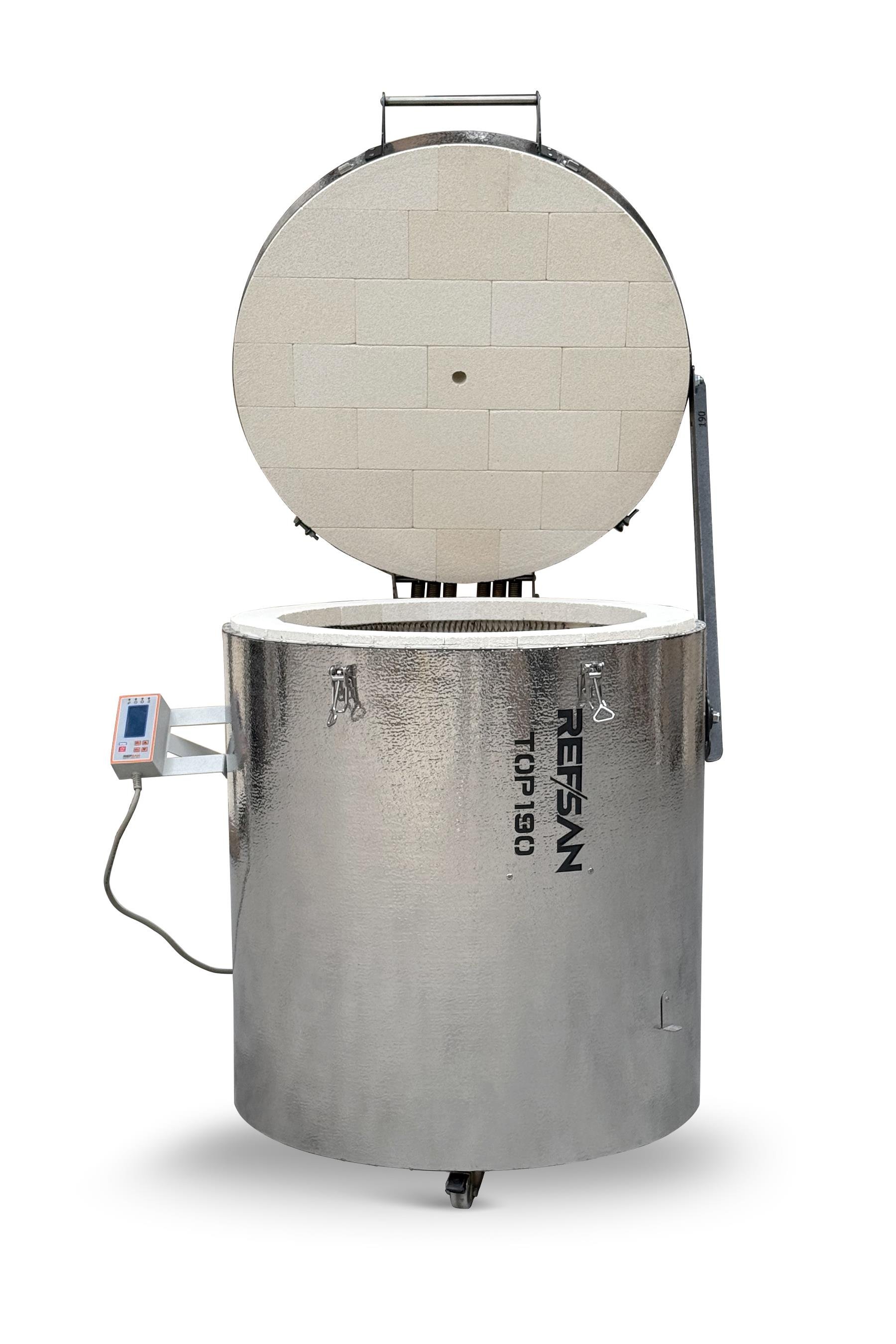

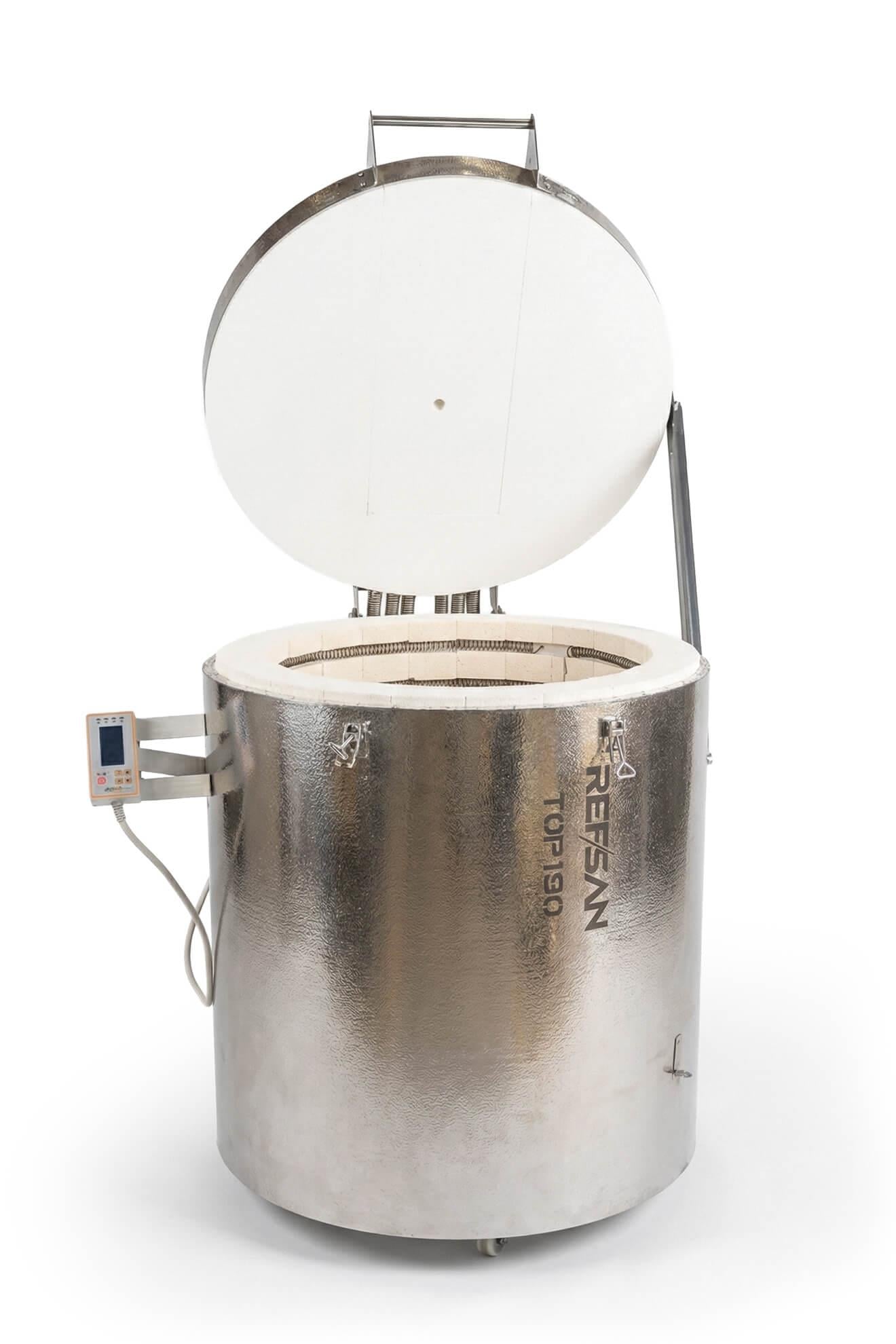

Top 190 Top Loading Kiln (R11193)

5.0
Brand : REFSAN
Discount Rate : %14 Discount
Price : 5.556,00€
Discounted : 4.788,00€
Barkod : 8681910644106
Refsan Logo

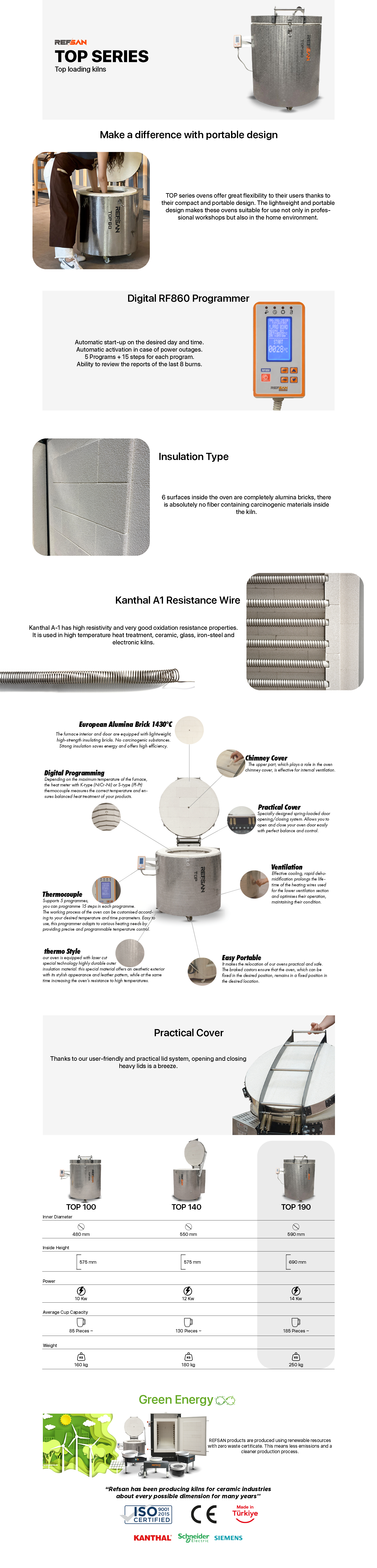

TOP SERIES

Top-Loading Kilns

TOP 190 High-Level Performance for Serial Production

Developed for professional production facilities, academic institutions and high-volume workshops, this model delivers maximum time and energy efficiency in large-batch ceramic, stoneware and porcelain firings thanks to its spacious 190-liter internal capacity. It meets high-capacity demands in intensive production processes and provides uninterrupted, stable and efficient operating performance.

Its 3-phase 400 V electrical connection ensures reliable and balanced operation even under high power requirements, while the advanced digital programmer allows flexible firing programs to be created and previous firing records to be tracked in detail. By providing homogeneous heat distribution in high-temperature firings, it helps achieve consistent results in professional production processes.

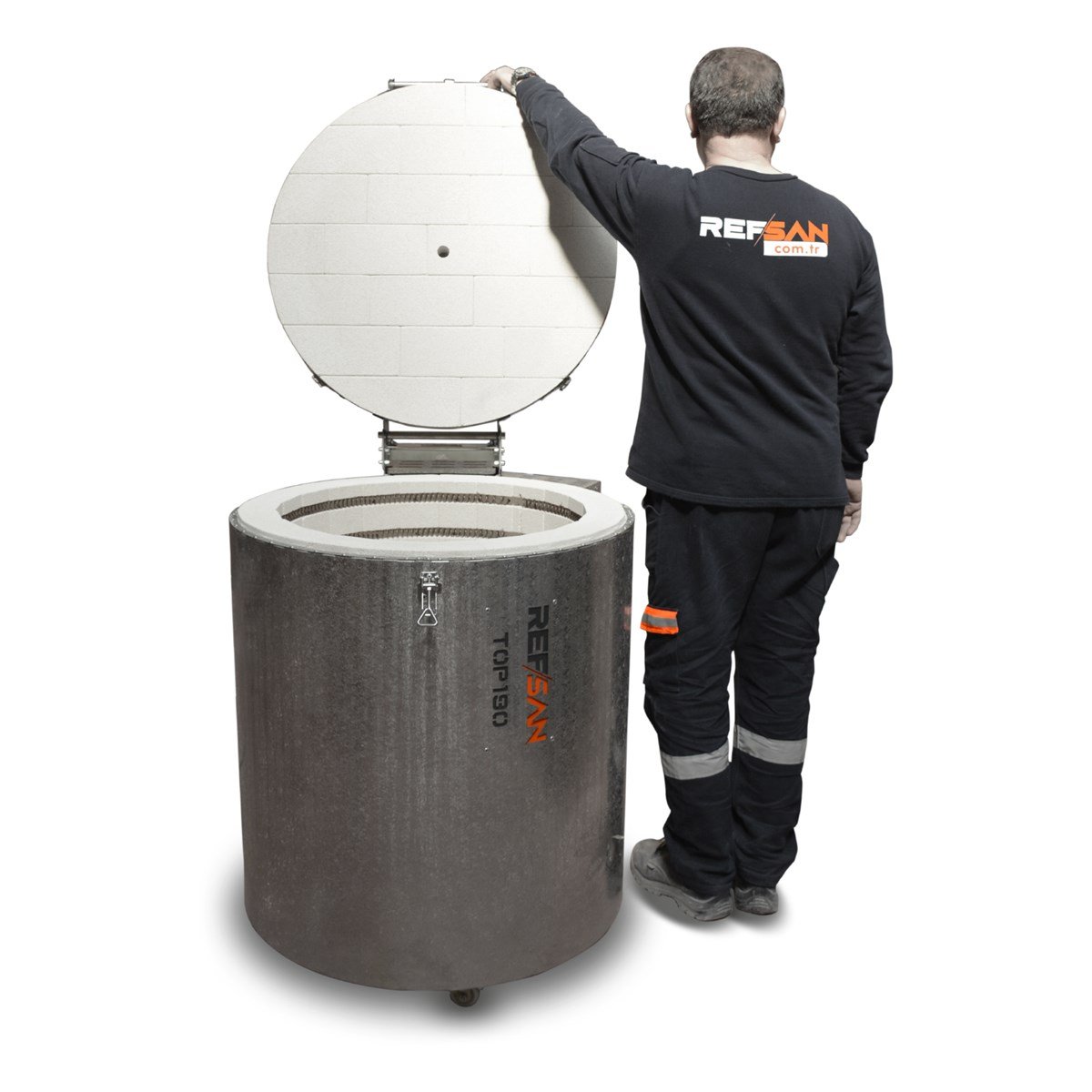

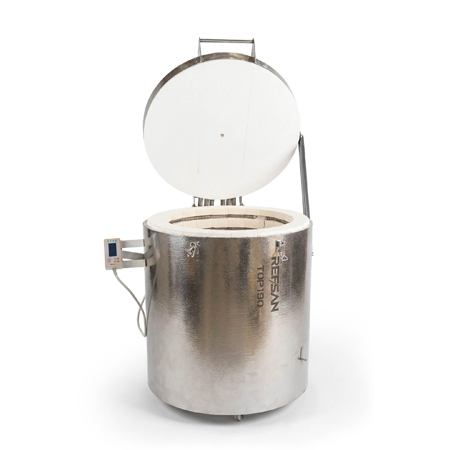

Portable Design
Insulation

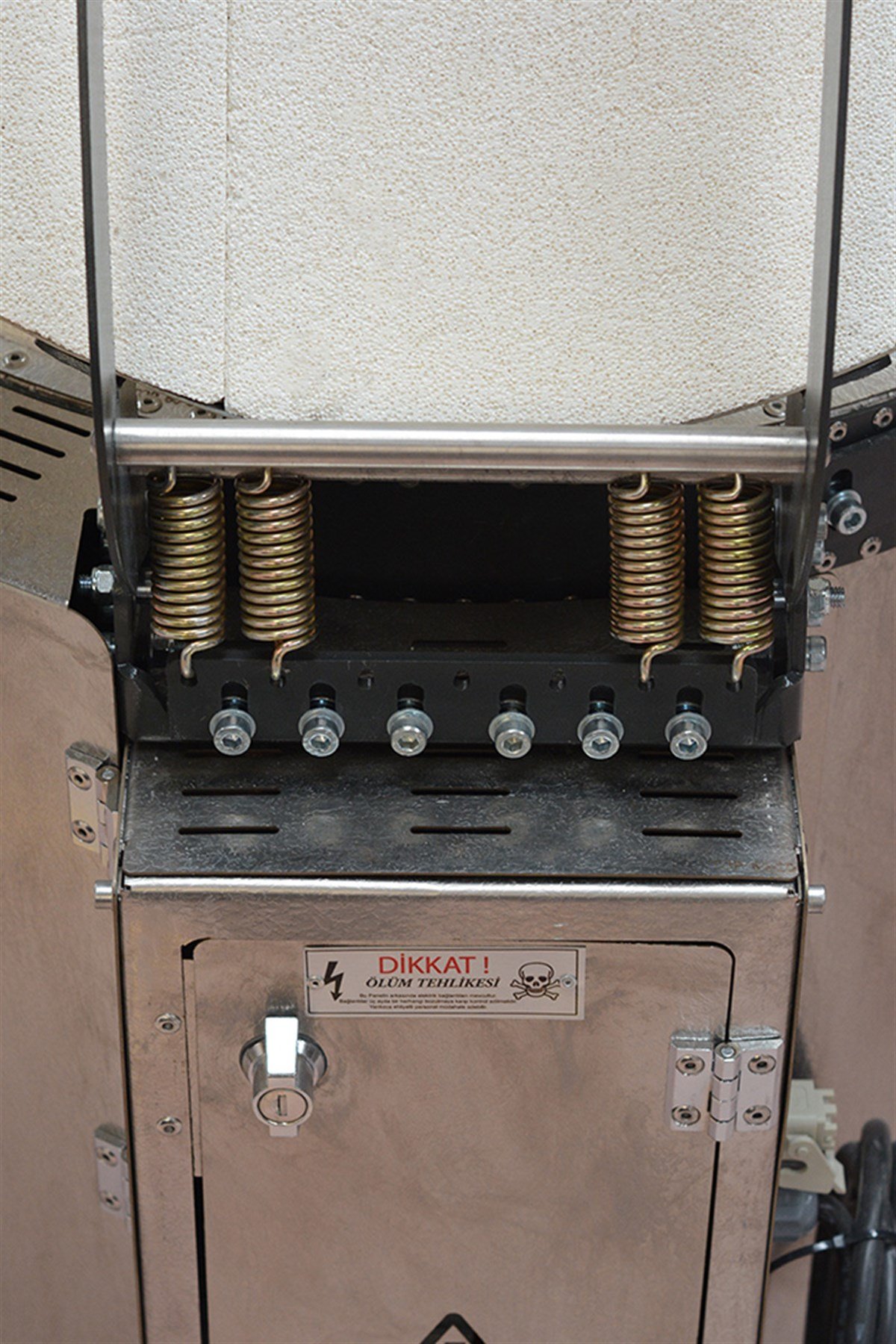

High Heat Insulation and Kanthal A1 Resistance System

The 1430 °C resistant alumina brick system used on the inner surface of the kiln provides strong insulation and stable performance at high temperatures. The insulation structure is designed with user health in mind, avoiding carcinogenic substances and fiber-based materials. Kanthal A1 resistance wires provide balanced heat distribution during professional firing processes.

Manage Your Kiln Without Being Tied to the Workshop

With REFSAN WiFi kilns and the SuperWise app, monitor your firing process instantly from your phone. Easily check temperature, program status and operating data to manage your kiln more safely and efficiently.

Real-Time Temperature Monitoring
Remote Start and Stop
Power and Voltage Analysis
Safe Firing Control
The REFSAN RF860 programmer is included as standard equipment. WiFi-supported TC75, TC95 and TX95 options can be added optionally.
SuperWise App

The "Zero Risk" Standard in Your Workshop

Your health is our standard.

100% European Alumina Brick

European Alumina Brick

An insulation system designed with health sensitivity in mind.

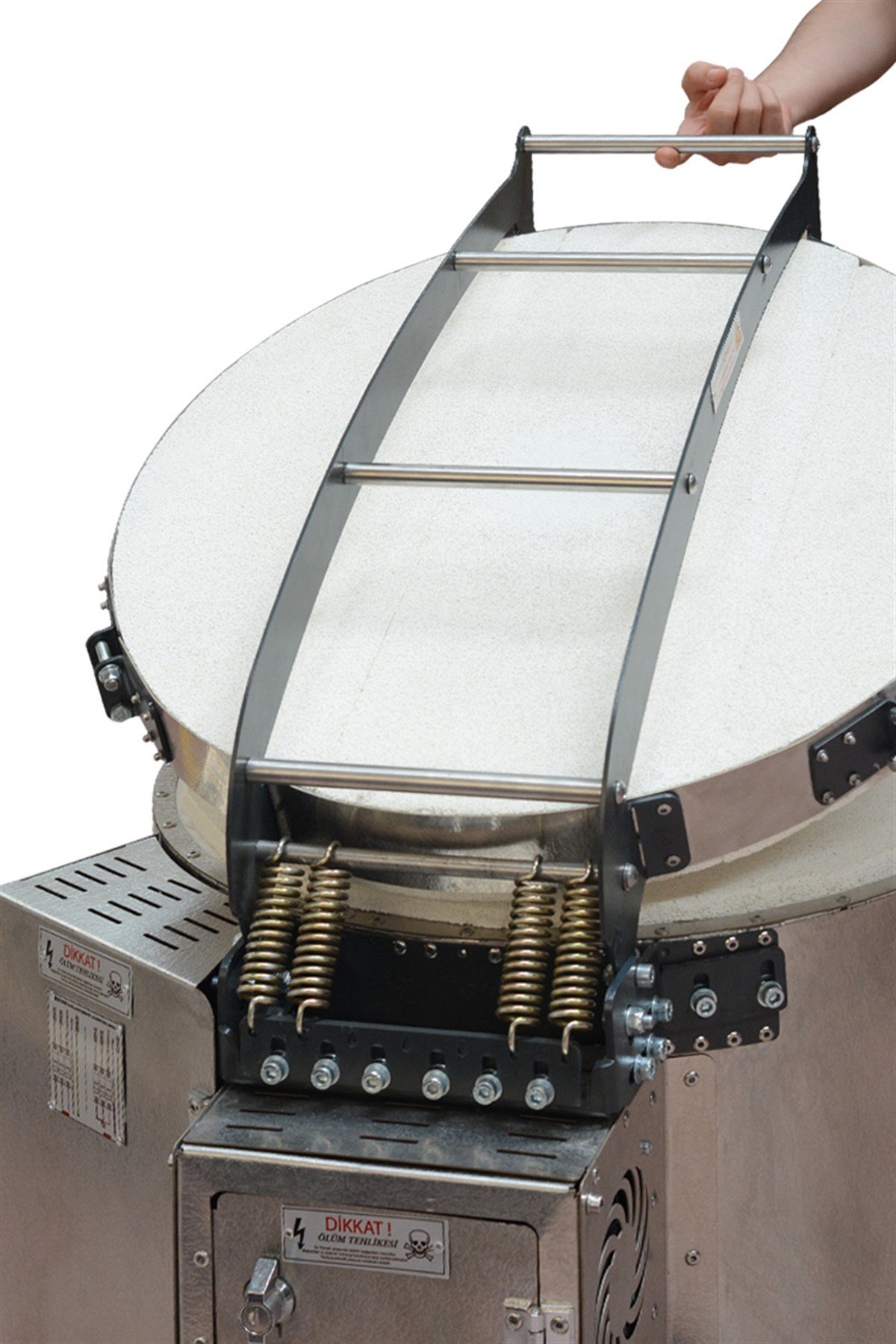

Safety Lock

Safety Lock

A safety structure that automatically cuts power when the lid is opened.

Smart Control

Smart Control

A stable and safe operating experience with advanced protection algorithms.

Technical Specifications

TOP 100 TOP 100
TOP 140 TOP 140
TOP 190 TOP 190
Internal Diameter
Internal Diameter
Internal Diameter
480 mm
550 mm
690 mm
Internal Height
Internal Height
Internal Height
575 mm
575 mm
690 mm
Power
Power
Power
10 kW
12 kW
14 kW
Mug Capacity
Mug Capacity
Mug Capacity
85 pcs ~
130 pcs ~
185 pcs ~
Weight
Weight
Weight
160 kg ~
180 kg ~
250 kg ~
WiFi Kilns Logo

Programmer Options

Features
REFSAN RF860

TC75

TC95

TX95
Display Type Digital, 9-line information display LED 2.8-inch TFT Color 4.1-inch High Resolution
Program / Step Count 5 Programs / 15 Sets 6 Programs / 4 Steps 20 Programs / 20 Steps 100 Programs / 50 Steps
WiFi & Remote Monitoring - Available Available Available
Power and Voltage Monitoring - - - Available (Smart Analysis)
Detailed Kiln Analysis Last 8 reports Available Available Available
TOP series kilns include the REFSAN RF860 programmer as standard equipment. TC75, TC95 and TX95 options are optional for WiFi features.
```
Model
TOP190
Kiln Type
TOP LOADING
Volume
190 LT.
Maximum Temperature
1200°C 1320°C
Inner Diameter
590 mm
Inner Height
690 mm
Outer Height
970 mm
Weight
250 Kg.
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
400V TOP Model İçin; Kablo Kalınlığı 5X6 - Sigorta (Amper) 3X32
Connected Load kW
14kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Structure of Body
Stainless Steel (304 Grade)
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit ( Optional)
Bentrup TC705 ( Germany)
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
Çap 55cm Yuvarlak
