Top 16 Top Loading Kiln (R11187)

4.0
Brand : REFSAN
Discount Rate : %15 Discount
Price : 2.130,00€
Discounted : 1.800,00€
Barkod : 8681910643987

TOP Series Ceramic Kilns

Top-loading electric ceramic kilns available in different capacities and temperature options

Compact Design and Controlled Firing

TOP Series kilns offer different internal capacity options for ceramic studios, educational institutions, hobby users, and small-scale production.

Depending on the model, the series can reach operating temperatures of 1200°C or 1320°C and can be used for ceramic, stoneware, and, with suitable models, porcelain firing.

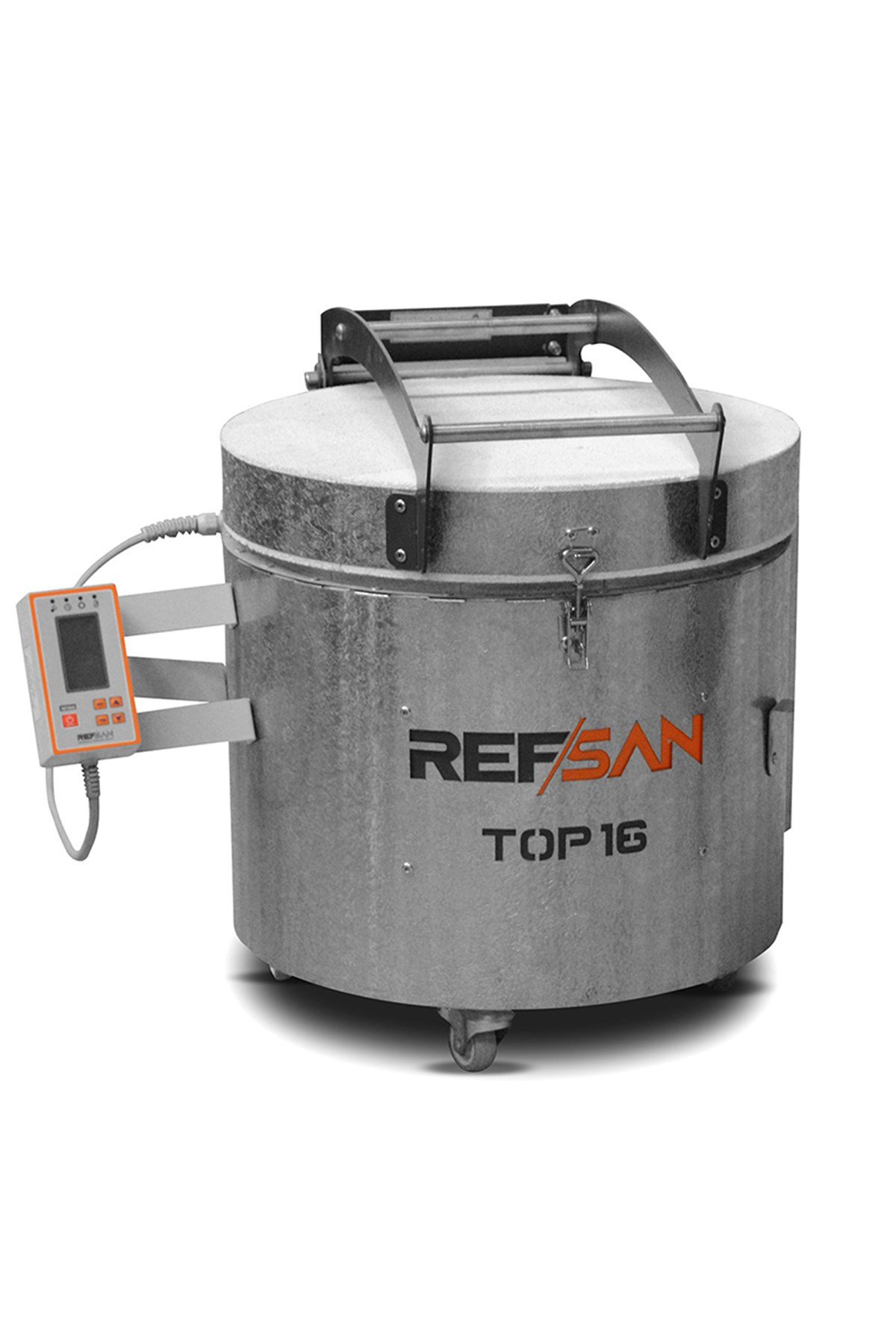

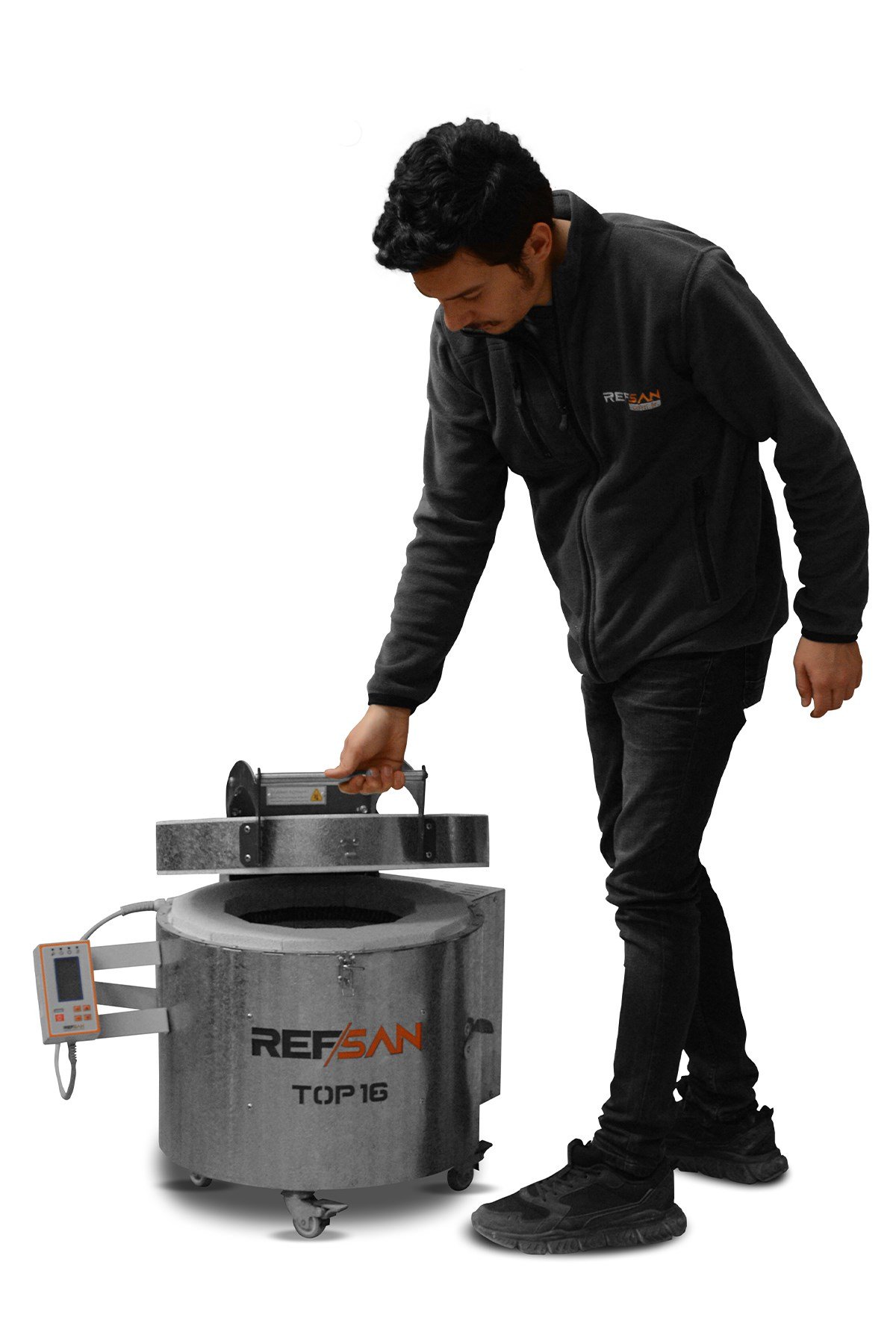

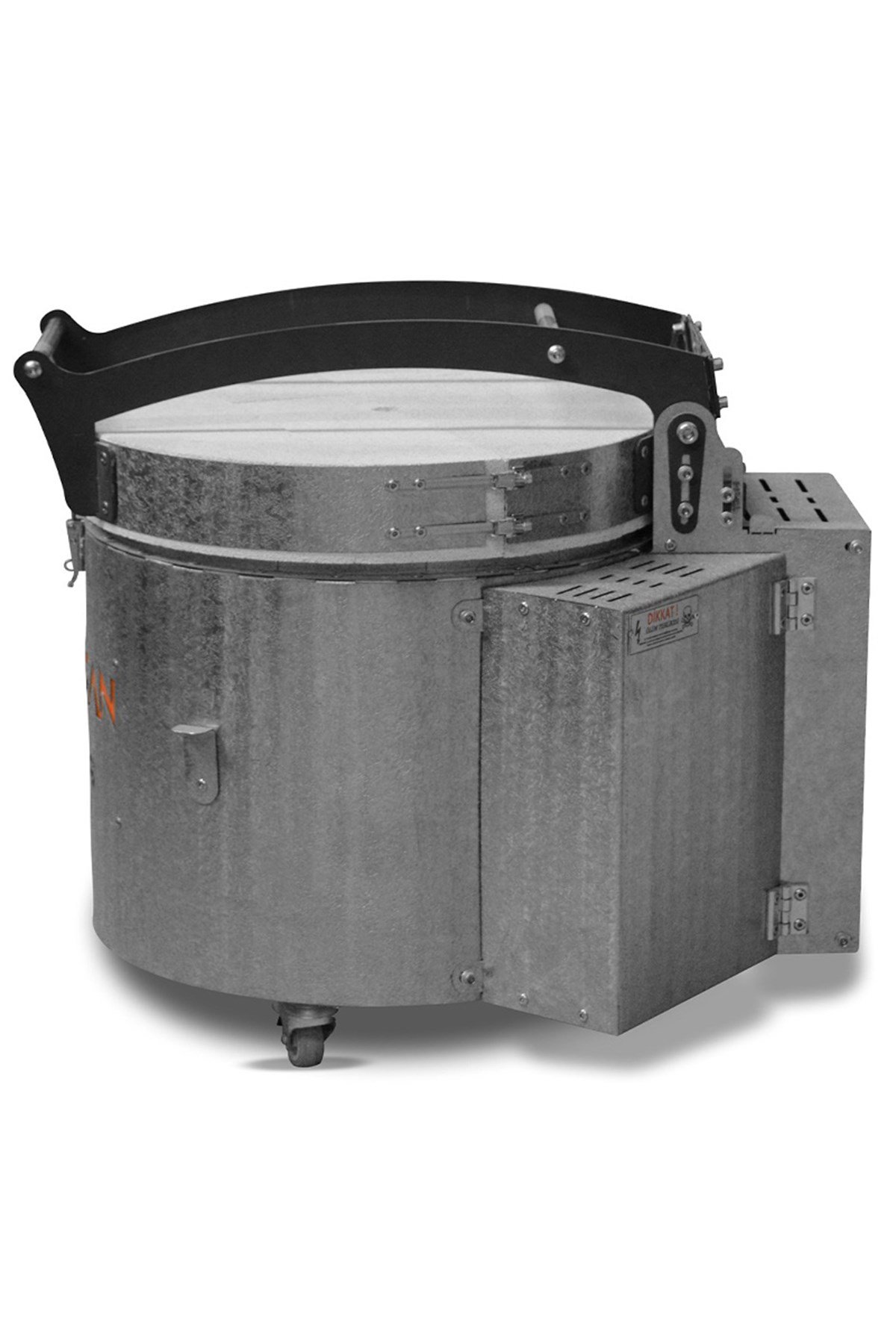

TOP 16 top-loading ceramic kiln

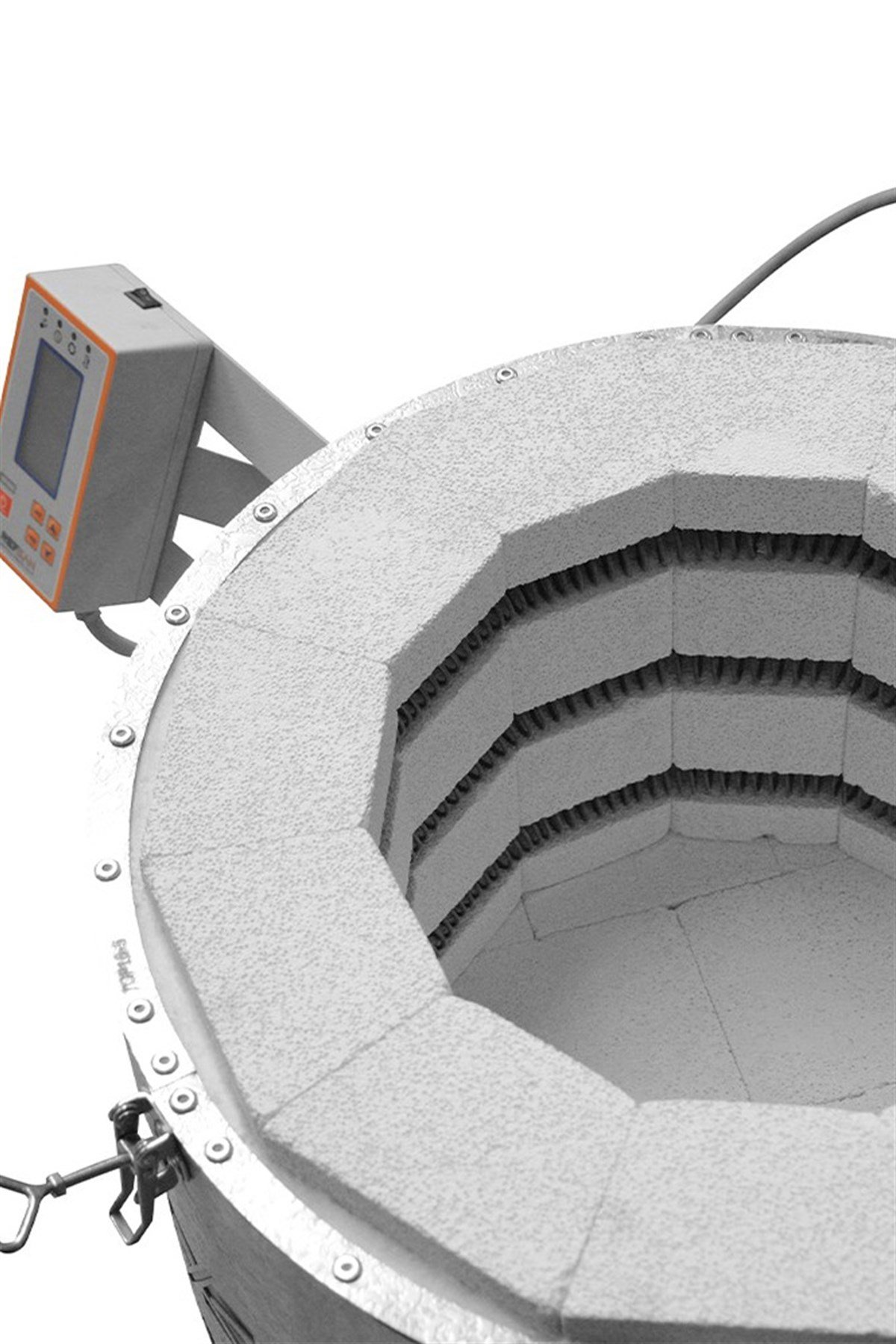

Refsan ceramic kiln insulation and heating element system

Insulation and Heating Element System

The 1430°C-resistant alumina brick system used on the kiln's interior helps limit heat loss at high temperatures and create balanced firing conditions.

Kanthal A1 heating elements are positioned to provide controlled heat distribution throughout the kiln chamber.

Safety and Operating Features

Fiber-Free Insulation

No fiber-based materials are used in the kiln insulation, with user health taken into consideration.

Thermal Safety

The control system helps maintain the firing process according to the selected program and temperature settings.

Program-Controlled Operation

Heating, holding, and cooling stages can be configured according to the selected controller.

Monitor Your Kiln Remotely

With WiFi-enabled controller options, temperature, program status, and operating data can be monitored from a mobile device.

  • Real-time temperature monitoring
  • Program status monitoring
  • Power and voltage analysis
  • Remote control options

Standard and optional controller options may vary depending on the model. Please check the selected product option before ordering.

SuperWise kiln monitoring application screen

Technical Specifications

Specification TOP 16 ceramic kiln TOP 16 TOP 45 ceramic kiln TOP 45 TOP 60 ceramic kiln TOP 60
Internal Diameter 290 mm 410 mm 410 mm
Internal Height 230 mm 340 mm 460 mm
Power 3 kW 5,5 kW 7 kW
Approximate Mug Capacity 10 pcs 39 pcs 52 pcs
External Dimensions 550 × 700 × 600 mm 600 × 800 × 700 mm 600 × 850 × 800 mm
Approximate Weight 60 kg 80 kg 100 kg

Capacity values may vary depending on the dimensions of the items being loaded, shelf arrangement, and firing configuration.

Controller Options

Specification REFSAN RF860 TC75 TC95 TX95
Display Type Digital information display LED 2,8 inch TFT color display 4,1 inch high-resolution display
Number of Programs / Steps 5 programs / 15 sets 6 programs / 4 steps 20 programs / 20 steps 100 programs / 50 steps
WiFi and Remote Monitoring No Yes Yes Yes
Power and Voltage Monitoring No No No Yes

Standard controllers and optional control configurations may vary depending on the product model.

Refsan manufactures ceramic and industrial kiln solutions for different capacity and application requirements.

Refsan brand and quality logos
Model
TOP16
Kiln Type
TOP LOADING
Volume
16 LT.
Maximum Temperature
1200°C 1320°C
Inner Diameter
290 mm
Inner Height
230 mm
Outer Height
600 mm
Weight
60 kg.
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
230V RS Model İçin; Kablo Kalınlığı 3X2,5 - Sigorta (Amper) 1X20
Connected Load kW
3kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Body Material
Stainless Steel (Easy-Cleaning)
Structure of Body
Stainless Steel (304 Grade)
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
Çap 24cm Yuvarlak
