Top 140 Top Loading Kiln (R11192)

5.0
Brand : REFSAN
Discount Rate : %6 Discount
Price : 4.260,00€
Discounted : 4.020,00€
Barkod : 8681910644083
Refsan Logo

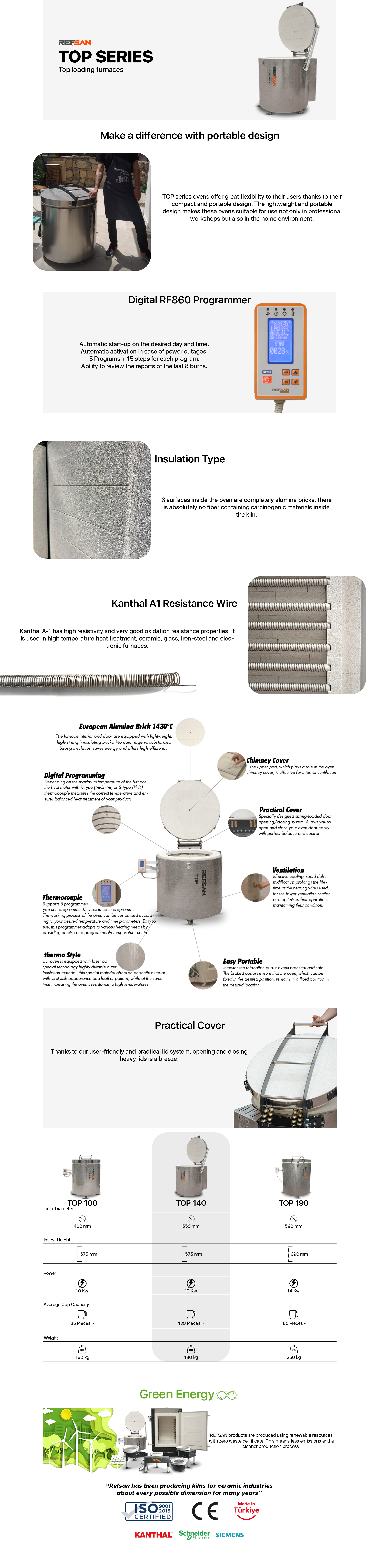

TOP SERIES

Top-Loading Kilns

140-Liter Powerful Production Capacity

Designed for high-volume workshop needs, this model offers ideal use for studios carrying out small-scale serial production with its spacious 140-liter internal capacity. It enables efficient firing of large ceramic, stoneware and porcelain works, as well as multiple-product firing processes.

Thanks to its strong insulation structure and Kanthal A1 resistance systems, it provides long-lasting, durable and stable heating performance. Its 12 kW power capacity delivers fast heat-up time, strong heat retention and homogeneous temperature distribution, ensuring reliable, stable and professional firing performance in intensive production processes.

Portable Design
Insulation

High Heat Insulation and Kanthal A1 Resistance System

The 1430 °C resistant alumina brick system used on the inner surface of the kiln provides strong insulation and stable performance at high temperatures. The insulation structure is designed with user health in mind, avoiding carcinogenic substances and fiber-based materials. Kanthal A1 resistance wires provide balanced heat distribution during professional firing processes.

Manage Your Kiln Without Being Tied to the Workshop

With REFSAN WiFi kilns and the SuperWise app, monitor your firing process instantly from your phone. Easily check temperature, program status and operating data to manage your kiln more safely and efficiently.

Real-Time Temperature Monitoring
Remote Start and Stop
Power and Voltage Analysis
Safe Firing Control
The REFSAN RF860 programmer is included as standard equipment. WiFi-supported TC75, TC95 and TX95 options can be added optionally.
SuperWise App

The "Zero Risk" Standard in Your Workshop

Your health is our standard.

100% European Alumina Brick

European Alumina Brick

An insulation system designed with health sensitivity in mind.

Safety Lock

Safety Lock

A safety structure that automatically cuts power when the lid is opened.

Smart Control

Smart Control

A stable and safe operating experience with advanced protection algorithms.

Technical Specifications

TOP 100 TOP 100
TOP 140 TOP 140
TOP 190 TOP 190
Internal Diameter
Internal Diameter
Internal Diameter
480 mm
550 mm
690 mm
Internal Height
Internal Height
Internal Height
575 mm
575 mm
690 mm
Power
Power
Power
10 kW
12 kW
14 kW
Mug Capacity
Mug Capacity
Mug Capacity
85 pcs ~
130 pcs ~
185 pcs ~
Weight
Weight
Weight
160 kg ~
180 kg ~
250 kg ~
WiFi Kilns Logo

Programmer Options

Features
REFSAN RF860

TC75

TC95

TX95
Display Type Digital, 9-line information display LED 2.8-inch TFT Color 4.1-inch High Resolution
Program / Step Count 5 Programs / 15 Sets 6 Programs / 4 Steps 20 Programs / 20 Steps 100 Programs / 50 Steps
WiFi & Remote Monitoring - Available Available Available
Power and Voltage Monitoring - - - Available (Smart Analysis)
Detailed Kiln Analysis Last 8 reports Available Available Available
TOP series kilns include the REFSAN RF860 programmer as standard equipment. TC75, TC95 and TX95 options are optional for WiFi features.
```
Model
TOP140
Kiln Type
TOP LOADING
Volume
140 LT.
Maximum Temperature
1200°C 1320°C
Inner Diameter
550 mm
Inner Height
575 mm
Outer Height
960 mm
Outer Dimensions (WxDxH)
95x80x95cm
Weight
180 kg
Phase
Three-phase Single-phase
Power
400V 230V
Cable Thickness - Fuse
230V TOP Model İçin; Kablo Kalınlığı 3X10 - Sigorta (Amper) 1X63 400V TOP Model İçin; Kablo Kalınlığı 5X4 - Sigorta (Amper) 3X25
Connected Load kW
12kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Structure of Body
Stainless Steel (304 Grade)
Contact Type
SSR
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Control Unit ( Optional)
Bentrup TC705 ( Germany)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
Çap 48cm Yuvarlak
