Nidec Shimpo RK-5T Pottery Wheel without Foot Pedal workshop view
Nidec Shimpo

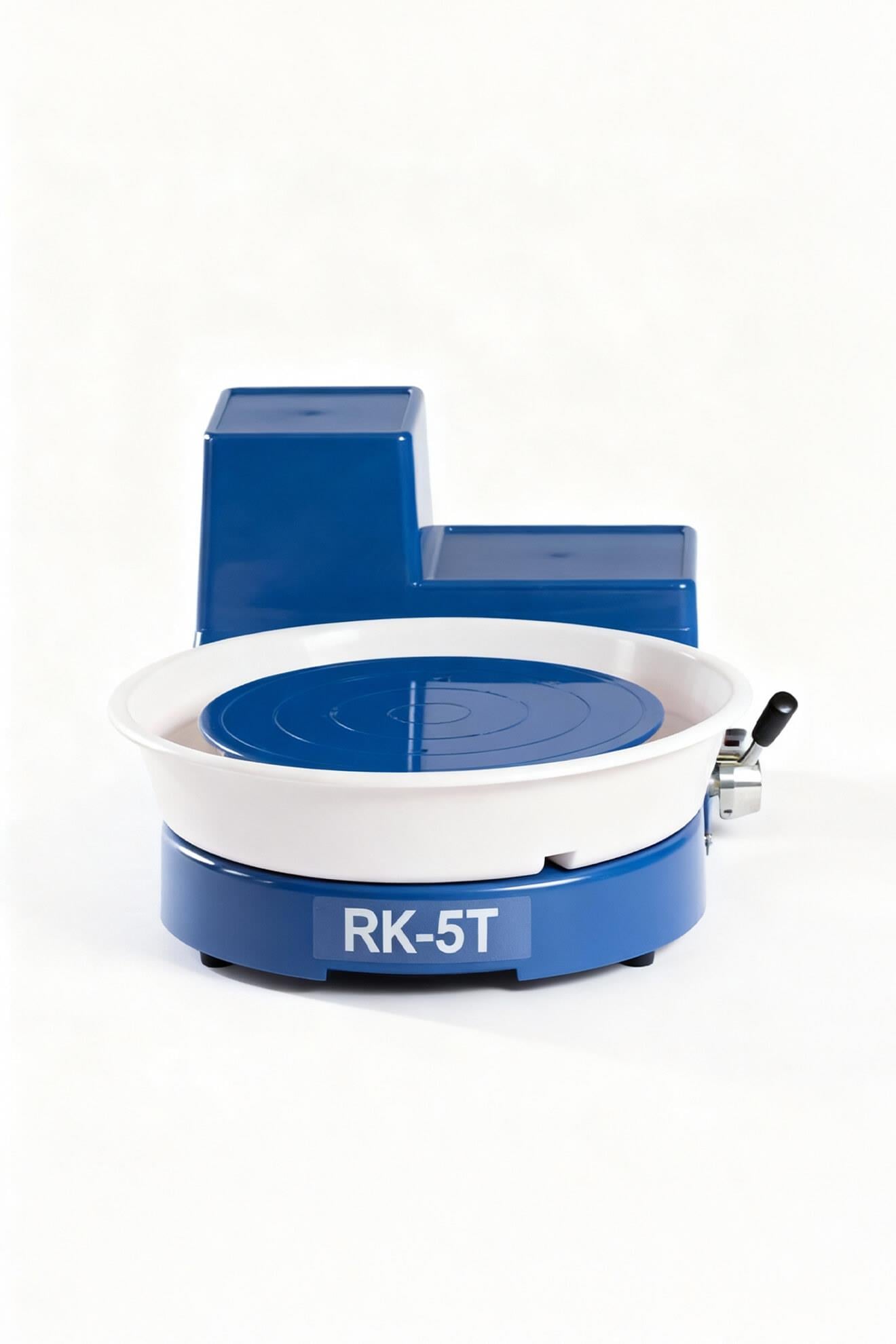

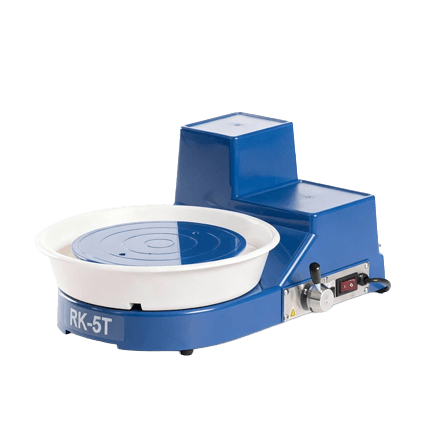

Nidec Shimpo RK-5T Pottery Wheel without Foot Pedal

Compact pottery wheel with pedal-free speed control, bidirectional rotation, and 10 kg centering capacity

RK-5T Compact Pottery Wheel without Foot Pedal

Nidec Shimpo RK-5T Pottery Wheel without Foot Pedal is a compact wheel designed for centering and shaping ceramic clay, featuring a 10 kg centering capacity, 0–230 rpm wheel head speed, and 100 W motor power.

Controlled using the speed lever located on the body, the RK-5T allows the wheel head speed to be manually adjusted during operation. Its wheel head can rotate clockwise and counterclockwise, accommodating different working preferences.

Nidec Shimpo RK-5T pottery wheel without foot pedal
Nidec Shimpo RK-5T pottery wheel without foot pedal in use

Practical Wheel Head Control with Speed Lever

On the RK-5T model without a foot pedal, the wheel head speed is controlled using the speed lever located on the body. The 0–230 rpm speed range can be adjusted by the user according to different centering and shaping stages.

The belt drive system and automatic tensioning mechanism transfer motor movement to the wheel head. Thanks to its compact body dimensions, it can be easily positioned in educational spaces, ceramic work environments, and studios with limited space.

Technical Design of the RK-5T Pottery Wheel without Foot Pedal

The RK-5T combines pedal-free speed control, bidirectional wheel head rotation, a belt drive system, and a compact body design.

Speed Lever Control

The wheel head speed can be adjusted between 0–230 rpm using the speed lever located on the body.

Bidirectional Wheel Head Rotation

The wheel head can be operated clockwise and counterclockwise.

Belt Drive System

The belt drive system, together with the automatic tensioning system, transfers motor movement to the wheel head.

Pinned Wheel Head System

In addition to the 178 mm pinned alloy wheel head, it can be used with a 250 mm plastic wheel head.

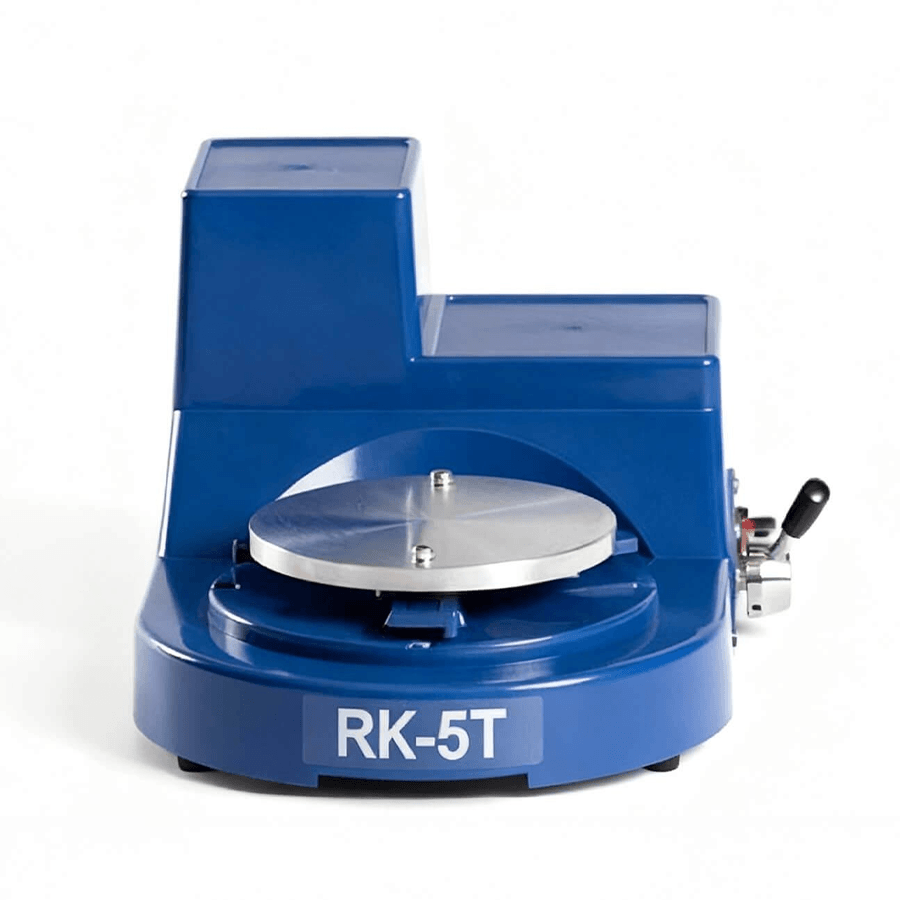

Nidec Shimpo RK-5T pottery wheel without foot pedal in use in a ceramic studio

What Is the RK-5T Pottery Wheel without Foot Pedal Suitable For?

Ceramics and Pottery

It can be used for centering and shaping mugs, bowls, cups, and various ceramic forms on the wheel.

Education and Course Use

Its compact design makes it suitable for ceramic education, practical classes, and pottery wheel training.

Studio Work

With its 10 kg centering capacity and compact dimensions, it can be positioned in individual workspaces and ceramic studios.

Technical Specifications and Model Comparison

The Nidec Shimpo RK-5T without Foot Pedal is a compact pottery wheel featuring a 10 kg centering capacity, 0–230 rpm wheel head speed, 100 W motor power, and speed lever control. You can compare its key technical specifications with the RK 55 and Whisper T models in the Nidec Shimpo product range.

Specifications
Nidec Shimpo RK-5T Pottery Wheel without Foot Pedal RK-5T
Nidec Shimpo RK 55 Pottery Wheel RK 55
Nidec Shimpo Whisper T Pottery Wheel Whisper T
Centering Capacity
10 kg
12 kg
40 kg
Wheel Head Speed
0–230 rpm
0–250 rpm
0–250 rpm
Motor Power
1/4 hp – 100 W
1/4 hp – 100 W
1/3 hp – 300 W
Speed Control
Speed Lever
Foot Pedal
Foot Pedal
Wheel Head Direction
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Drive System
Belt Drive
Belt Drive
Direct Drive
Brushless DC Motor
Wheel Head
178 mm pinned alloy
+ 250 mm plastic wheel head
300 mm
Aluminum
300 mm
Aluminum
Dimensions
56 × 45 × 34 cm
78 × 63 × 58 cm
62 × 62 × 44-58 cm
Weight
13 kg
23 kg
45 kg
Power Input
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
Distributor Warranty
NIDEC-SHIMPO
Brand
NIDEC - SHIMPO
Model
RK 5T
Type
Desktop
Power Type
220 V (Single-Phase)
Tray Speed
0 - 230 rpm Speed Control
Tray Diameter
25 cm
Tray Material
Plastic
Clay Carrying Capacity
10 Kg.
Rotation Direction
Each Two Direction
Noise Level
55 db
Weight
13 Kg
Packaged Weight
14 Kg.
Outer Dimensions (WxDxH)
58x45x34cm
Foot Pedal
N/A
Pedestals
Without Pedestal
Foot Pedal Portability
Fixed on Side
CE Certification
Certified
Warranty
2 Years
