NIDEC SHIMPO

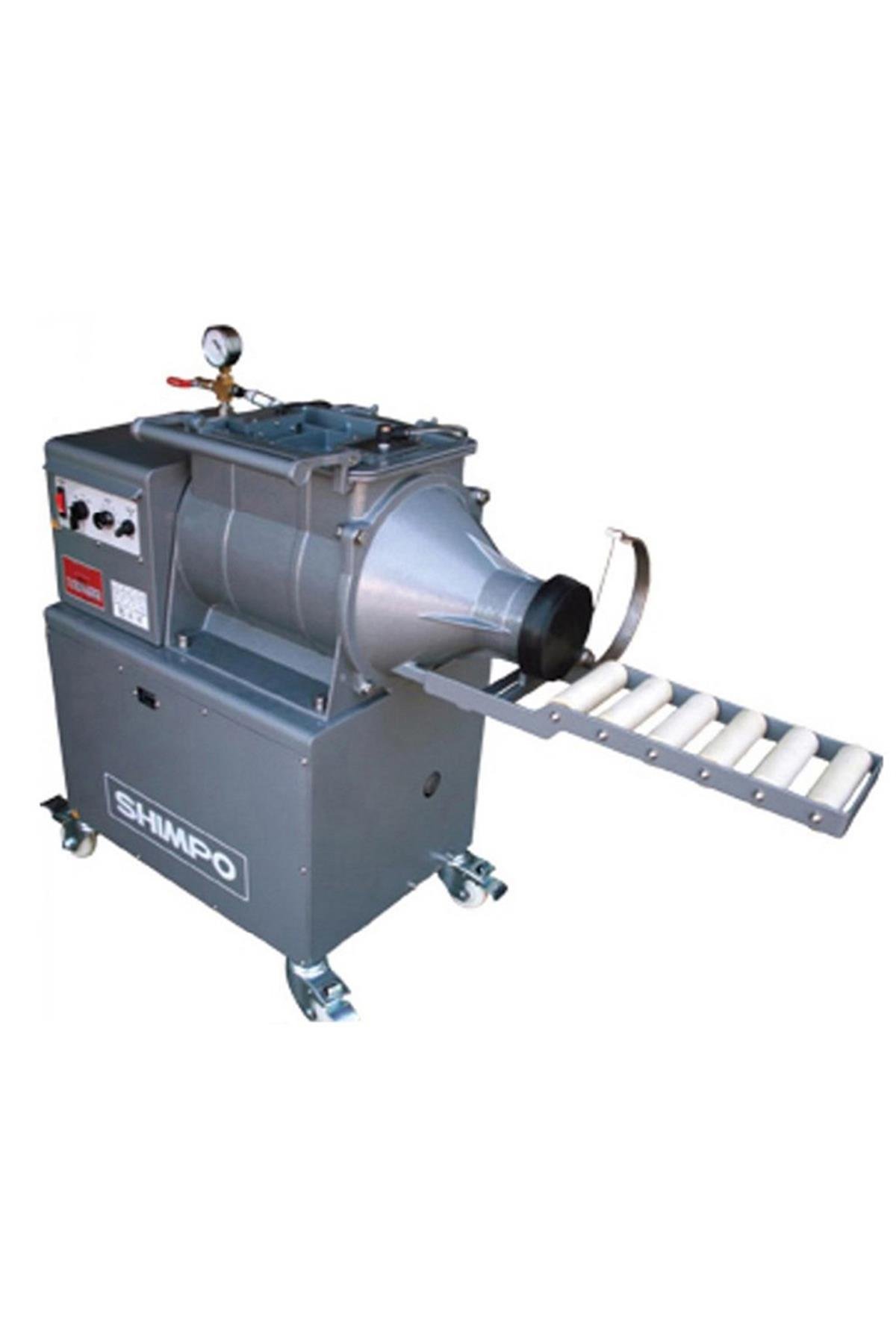

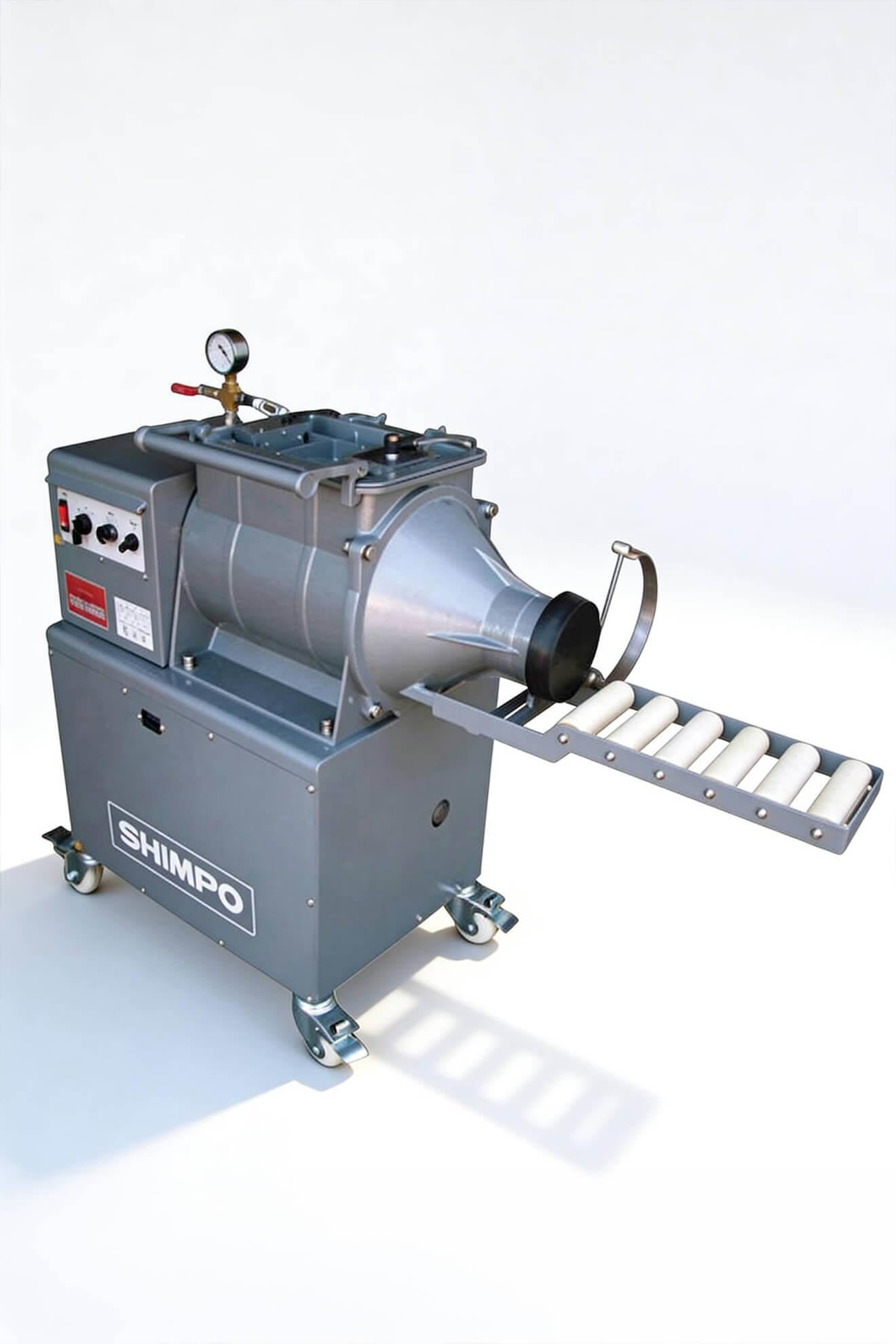

Nidec (Shimpo) NVS-07 Clay Processing Machine

The Nidec (Shimpo) NVS-07 Clay Processing Machine is a sturdy piece of equipment used to prepare clay homogeneously and efficiently in ceramic production processes. Thanks to its twin spiral system, it helps the clay move evenly, become compressed and reach a more suitable structure for production.

With its body and mechanical structure made from high-quality steel components, it offers long-lasting use. It can be preferred by users who need stable operation, consistent extrusion and reliable performance in studio and production areas.

Capacity 200 kg/hour
Connection 230 V / 1 phase
Outlet Diameter 90 mm
Structure Twin spiral

Twin Spiral System

The twin spiral system in the NVS-07 model ensures that the clay moves through the body in a controlled and balanced way. This structure helps the clay become more homogeneous while providing stable performance during compression and extrusion.

Durable Body Structure

The machine casing and twin spiral materials are made from high-quality steel. Its sturdy body structure provides long-lasting performance in regular use and creates a suitable foundation for safe operation under studio conditions.

Compact and Powerful Use

NVS-07 can be easily positioned in the studio with its compact dimensions including the supported or wheeled table. Thanks to its powerful working structure, it offers practical use in ceramic production for clay preparation, compression and preparation before shaping.

Technical Information

Product Group Clay Processing Machines
Model Nidec (Shimpo) NVS-07
Connection 230 V, 1 phase
Capacity 200 kg/hour
Outlet Diameter 90 mm
Filling Opening Size 135 x 133 mm
Dimensions 1320 x 420 x 750 mm (including supported or wheeled table)
Twin Spiral Material High-quality steel
Casing Material High-quality steel

Use Areas

The Nidec (Shimpo) NVS-07 Clay Processing Machine can be used in ceramic studios, educational institutions, production facilities and clay preparation areas. It provides practical use in processes where clay needs to be homogenized, compressed and brought to a more stable structure before shaping.

Brand
Nidec / Shimpo
Capacity (kg / hour)
324 kg / hour (Pugging Only)
Engine Power
750 W
Vacuum Pump Power
200 W.
Output Diameter
90 mm.
Weight
140 Kg.
Wheels
OK
Body Material
Stainless Steel
Helix Material
Stainless Steel
Warranty
2 YEARS
CE Certification
OK
Distributor of Turkey
REFSAN
