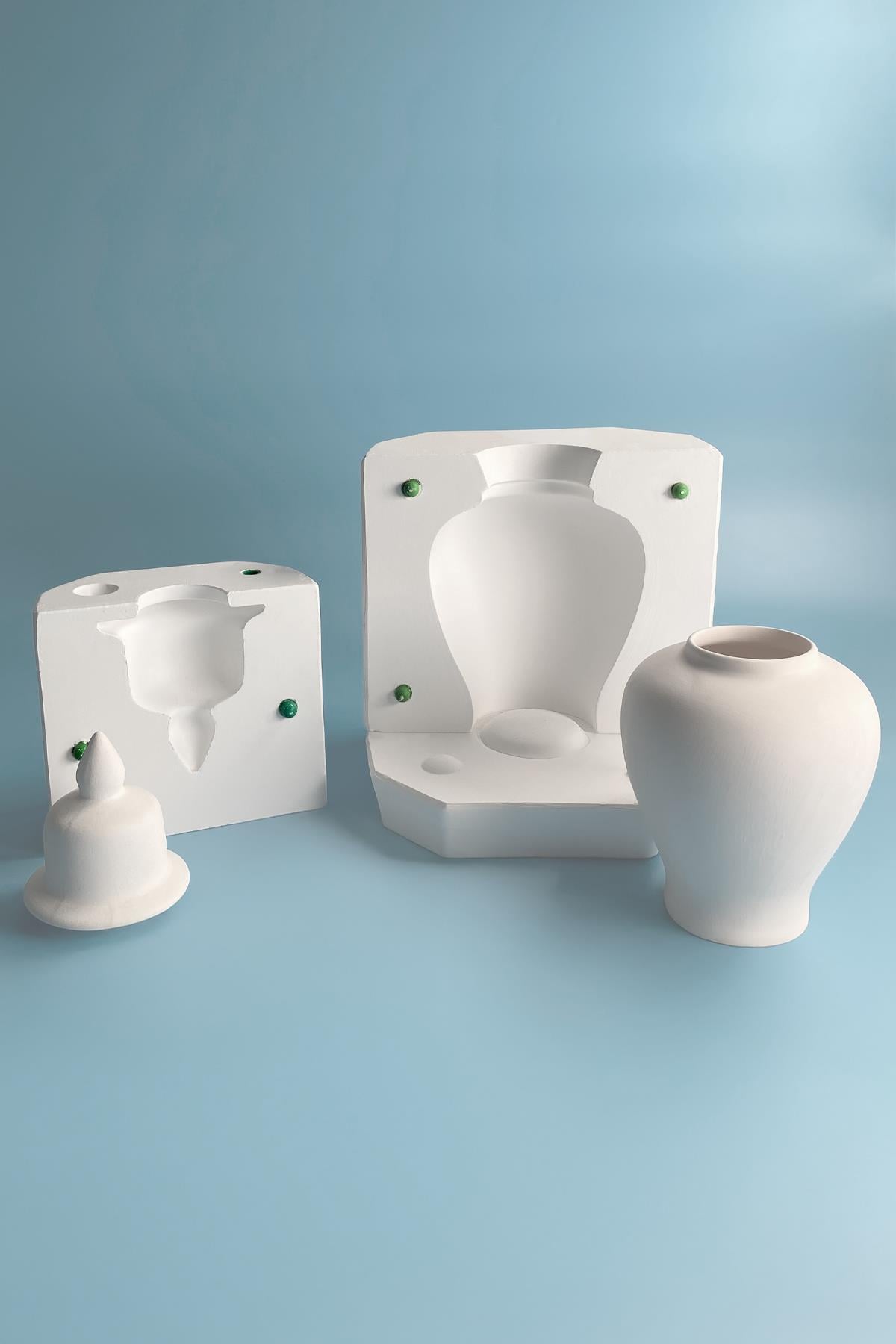

Şah Jar Plaster Mold Set
A 5-piece plaster casting mold set designed for producing decorative
ceramic jars with lids in the Şah Jar form. The set consists of a 3-piece
jar body mold and a 2-piece lid mold. Suitable for producing large-scale
decorative jars, the mold can be used with earthenware, ceramic, stoneware,
and porcelain casting slips.
Jar Mold Dimensions
22 × 22 × 21 cm
Lid Mold Dimensions
15 × 11 × 19 cm
Total Mold Weight
12,5 kg (±%10)
Body Mold Weight
9 kg
Lid Mold Weight
3,5 kg
Number of Mold Pieces
5 Pieces
Body / Lid Piece Count
3 Pieces / 2 Pieces
Finished Product Height
15 cm (Without Lid)
Total Height with Lid
30 cm
Dimension Information:
The finished product dimensions are measured from the ceramic bisque piece.
Final product dimensions may vary depending on the shrinkage rate of the clay
and the firing temperature. Mold weights may vary by ±%10 depending
on moisture content.
Compatible Clays
The mold can be used with earthenware, ceramic, stoneware, and porcelain casting slips.
The wall thickness and casting time may vary depending on the characteristics of the clay used.
A fuller wall thickness is generally preferred with ceramic and earthenware casting slips.
Stoneware and porcelain casting slips, when used with suitable formulations and casting conditions,
are suitable for producing thinner forms. With suitable porcelain bodies in particular,
very thin castings with light-transmitting translucency can be achieved.
Warning:
Not suitable for stone powder, plaster, concrete, resin, or similar
non-ceramic casting materials.
Usage and Drying
- The casting slip should be poured into the mold in a controlled manner.
- It is recommended to mix the casting slip thoroughly until homogeneous before casting.
- The body and lid molds should be cast separately and removed from the molds once they reach sufficient firmness.
- Depending on ventilation and drying conditions, an average of 2–4 castings can be made per day.
- The mold should be allowed to dry sufficiently between castings.
Body and Lid Application:
The set allows the jar body and lid to be produced separately.
During production, it is recommended that the body and lid pieces
be cast, dried, and removed from the molds in a controlled manner.
Wet Mold Warning:
Depending on production intensity, the mold may occasionally be shipped
while still damp or wet. In this case, it should be left to
air-dry naturally for 1–2 days in a well-ventilated area
before use.
Minor deformation may occur on the outer surface, edges, or corners
of the mold during transportation. The mold can still be used as long as
there is no damage to the internal casting surface that would affect
the finished product or interfere with the casting process.
Mold Lifespan:
Approximately 100 castings on average. This may vary depending on the clay used,
casting frequency, drying conditions, and method of use.
```
