Industrial Gas-Fired Furnace for Cupellation Processes • Maximum 1200°C
The RTG 300 Gas-Fired Cupellation Furnace is an industrial furnace developed specifically for cupellation processes, with a maximum operating temperature of 1200°C. Its large working chamber, gas-fired heating system and digital temperature control provide a practical configuration for industrial cupellation applications.

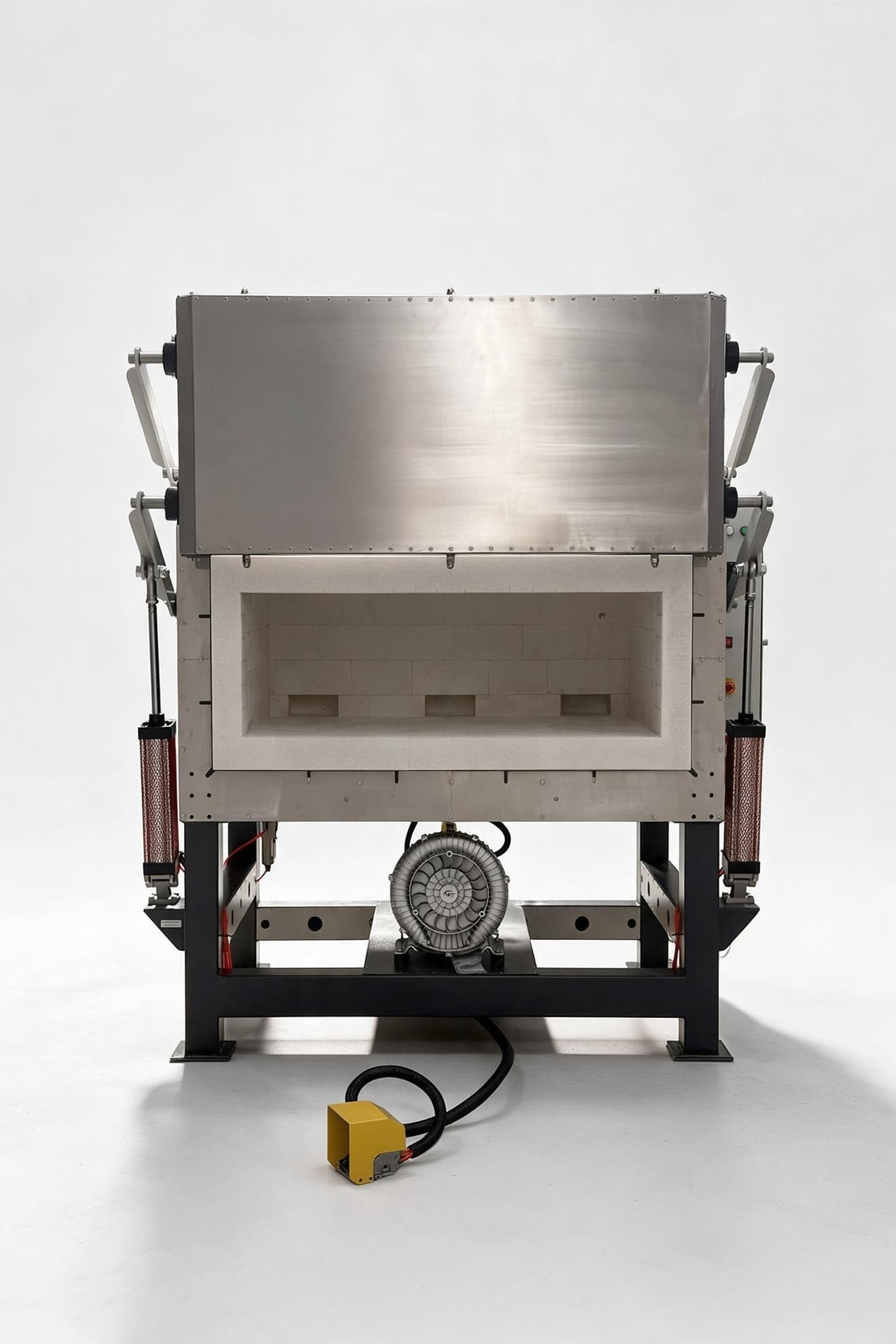

The 120 × 68 × 40 cm internal chamber dimensions provide a wide horizontal working area for the organised placement of cupels and samples. The large front opening provides direct access to the chamber and simplifies loading and unloading operations.
With a maximum operating temperature of 1200°C, the furnace provides the thermal environment required for controlled cupellation processes.
Provides the operating temperature range required for controlled cupellation processes.
120 × 68 × 40 cm internal dimensions provide ample space for multiple cupels and sample arrangements.
The gas-fired heating system is designed to generate the thermal conditions required for industrial cupellation operations.
The RTG 300 has a rated furnace power of 190 kW for industrial cupellation applications.
The Dacon DTC 870 controller provides monitoring and control of the furnace operating temperature.
A K-type thermocouple is used for temperature measurement within the furnace operating range.

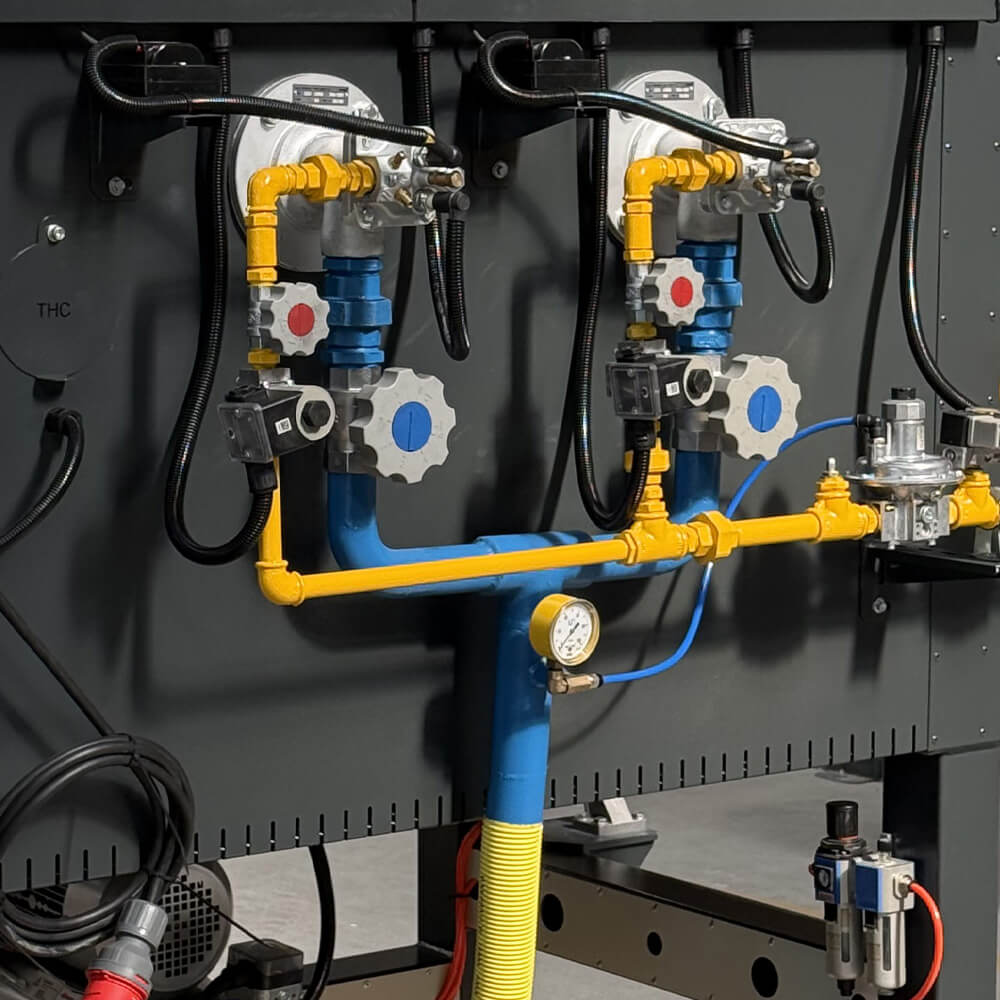

The RTG 300 incorporates a gas train and combustion air system designed to work together to establish the combustion conditions required by the process. Gas regulation components, pressure control equipment and the combustion air supply are arranged for convenient access during operation and servicing.
Gas connection and commissioning must be carried out by qualified personnel in accordance with the facility's gas supply and installation requirements.

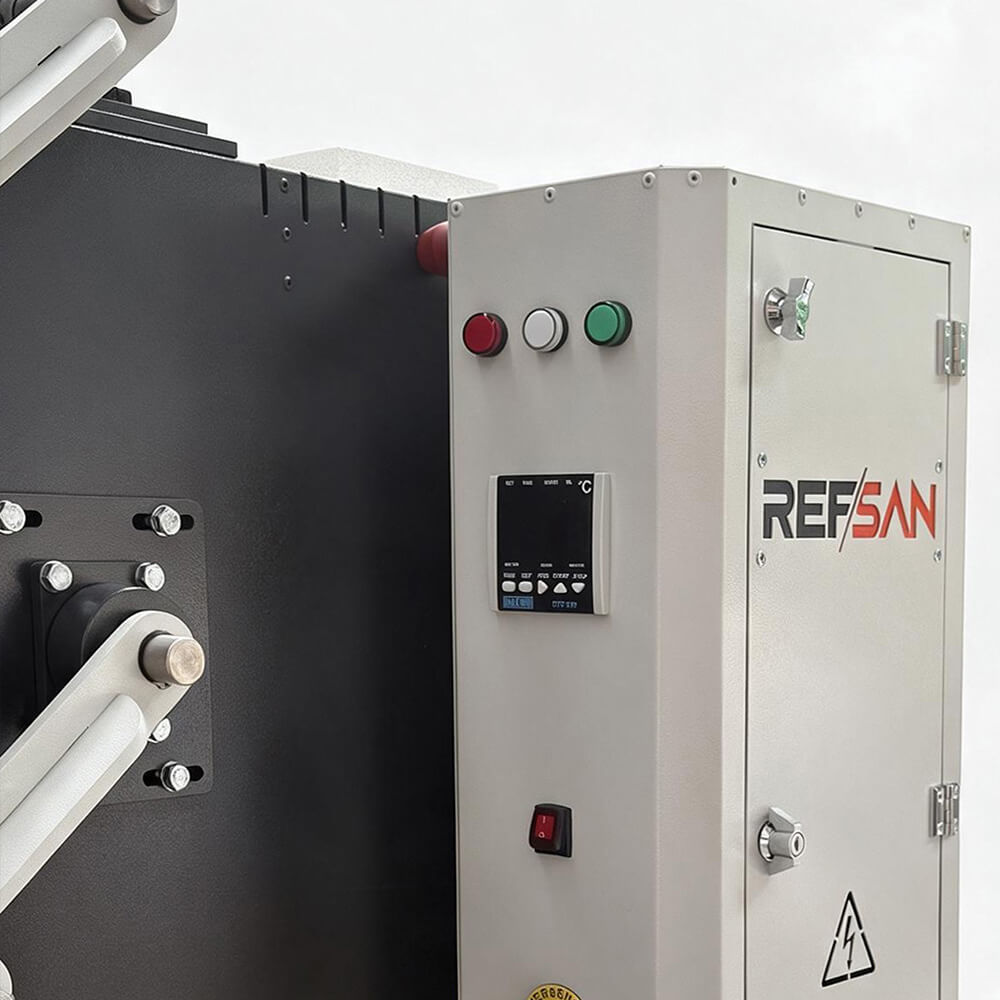

The electrical and control components are housed in a dedicated control cabinet positioned alongside the furnace. The Dacon DTC 870 digital temperature controller operates together with a K-type thermocouple to monitor the furnace temperature throughout the process.
The control panel also incorporates the operating controls required for the main furnace functions.

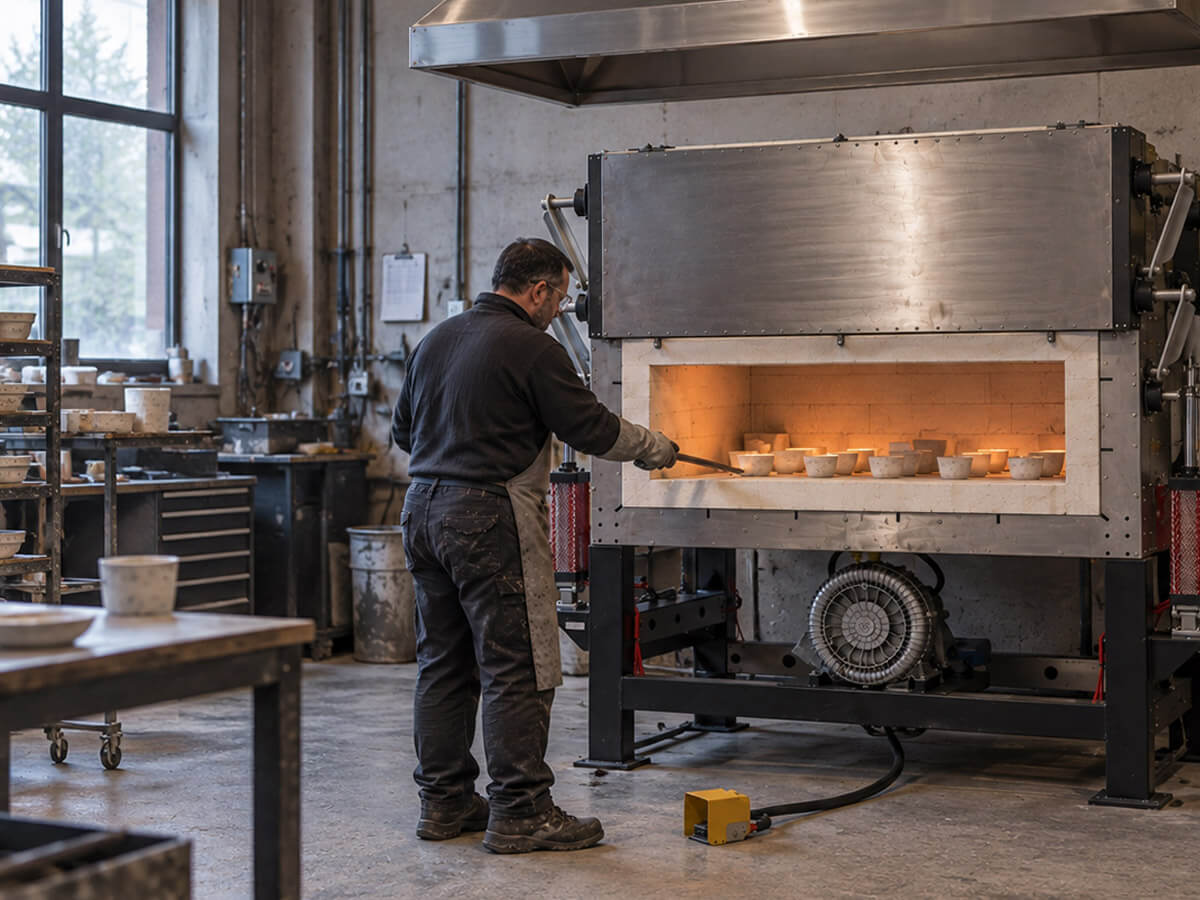

The RTG 300 is designed for fixed installation in industrial working environments. The installation must take into account the gas supply, electrical infrastructure, combustion air requirements and appropriate extraction of process gases.
The extraction hood and exhaust system should be engineered according to the furnace location, facility layout and process requirements.
