Heating elements are installed on both sides and at the base and positioned on the Ceramic Tube.
Long life of the heating elements is ensured as a result of adaptive wire calculations.
Fast rhythmization of the switching processes ensures precise heat dissipation.
Double coated cover with low external temperatures.
Lid contact switch with forced disconnection.
Insulation of the furnace chamber with lightweight firebricks and special backside isolation for low electricity consumption
6 surfaces inside the kiln are completely alumina bricks, no fiber containing carcinogenic materials is used in the kiln.
It lasts 3-4 times longer than kilns using fiber and saves a lot of electricity.
40mm ventilation gap on 4 surfaces. (It ensures that the kiln heats and cools easily, the gas and water vapor is easily discharged and the metal parts are long-lasting.)
With ventilation flap at the top and flap at the bottom (in proportion to the internal volume.)
Infinitely adjustable air supply and discharge for short cooling times.
Air discharge place on the kiln
The kiln panel is enclosed.
Thermocouple rear center three points.
Digital RF800/850/860 Programmer Features:
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that set value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.
The place where the kiln will be placed and the width required for installation must be set by you in advance.
Cables, fuses, etc. that will be required for the electrical line will be notified by our company, the place where the kiln will be installed and electrical connections must be prepared up to the kiln and the panel before the oven delivery.
The shelf system inside the kiln is not included in the price.
304 or 310 quality stainless steel is recommended.
Transportation and Installation
Transportation will be done by the buyer. If it is desired to be provided by Refsan, it will be discussed mutually.
If the transportation will be organized by the customer, insurance is recommended.
The crane or forklift that will be needed during the unloading process will be provided by the buyer.
If the unloading will be done with Refsan vehicle, there is no need for a forklift or crane to lower it down since there is a lift behind it.
Geared trolley system
2. Car and rail system
Remote telephone operation system
Telephone notification system in case of malfunction
Automatic power cut-off system when the door is opened"

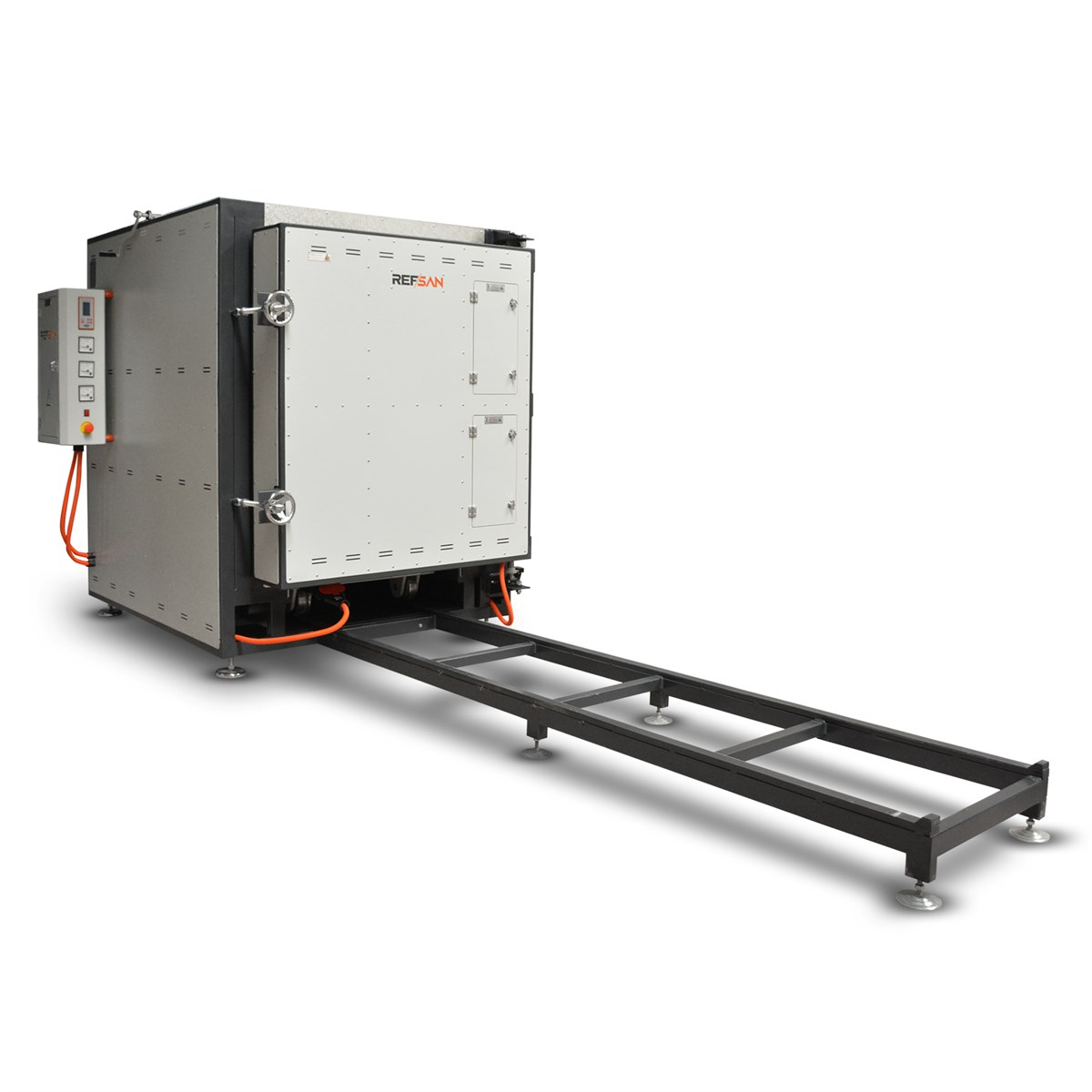

KILN WITH TROLLEY
Outer Dimensions (WxDxH)
Inner Dimensions (WxDxH)
1900 Kg. (Ray Sistemi Hariç)
Connected Load kW
110kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
140kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
K TYPE ( 0 - 1200 °C)
S TYPE ( 0 - 1300 °C)
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Structure of Body
Paint of Kiln
Electrostatic Powder Dye
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
ELECTRIC RESISTANCES KANTHAL A1
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Available / Last 8 Operation
Automatically Continuation After Power Cut
Automatically Start-up on Any Desired Time
Automatically Exhaust Control
Competence of After Sale Services
Refractory Kiln Shelf
Kiln Shelves (Optional)
