PORCELAIN KILNS
Porcelain is a ceramic material made by heating materials, generally including kaolin, in a kiln to temperatures between 1,200 and 1,400 °C (2,200 and 2,600 °F). The toughness, strength, and translucence of porcelain, relative to other types of pottery, arises mainly from vitrification and the formation of the mineral mullite within the body at these high temperatures. Though definitions vary, porcelain can be divided into three main categories: hard-paste, soft-paste and bone china. The category that an object belongs to depends on the composition of the paste used to make the body of the porcelain object and the firing conditions...
Refsan has been producing porcelain kilns for many years. Porcelain kilns produced by Refsan are durable for high temperatures, and they have excellent thermal uniformity.
All of our kilns have;
Kanthal A1 electric resistance wires
Insulation Boards and bricks resistant up to 1430°C
Digital Programmer can be program with 5 programs contain 15 steps in each program
2 years Warranty, 10 years technical Support
CE Certificate
Kiln Type

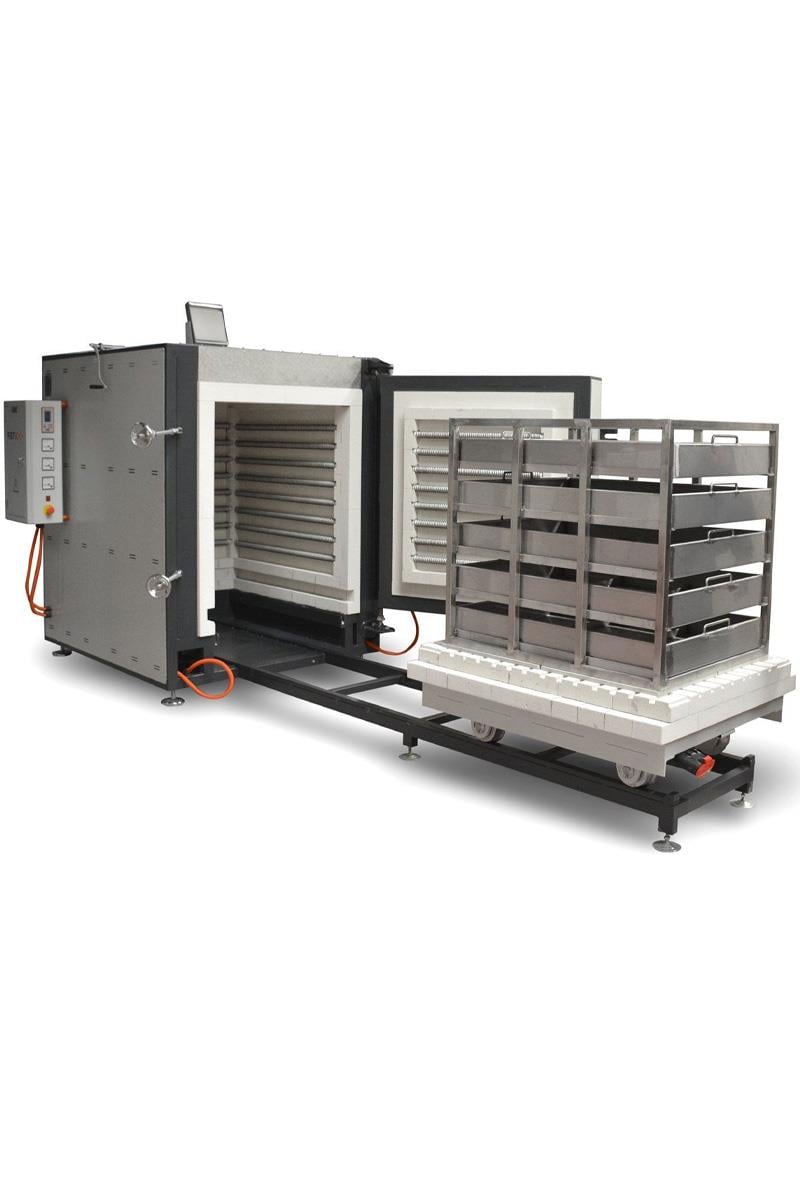

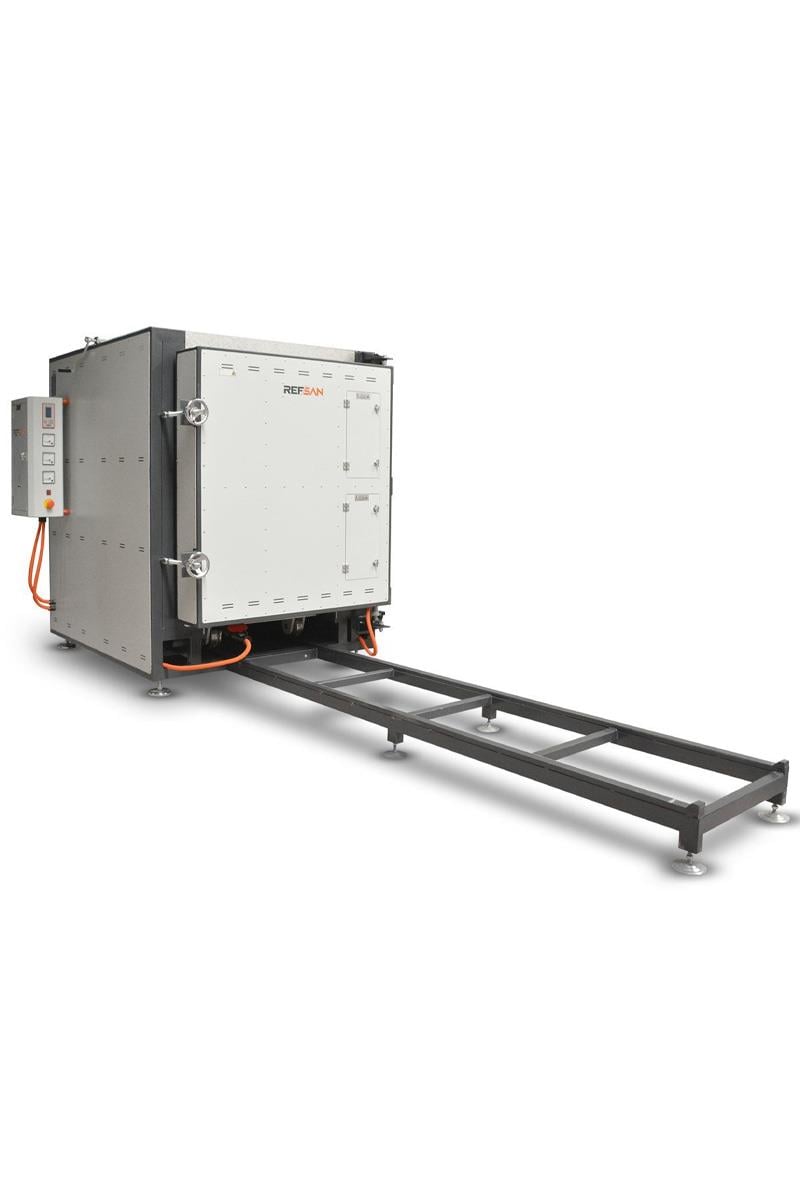

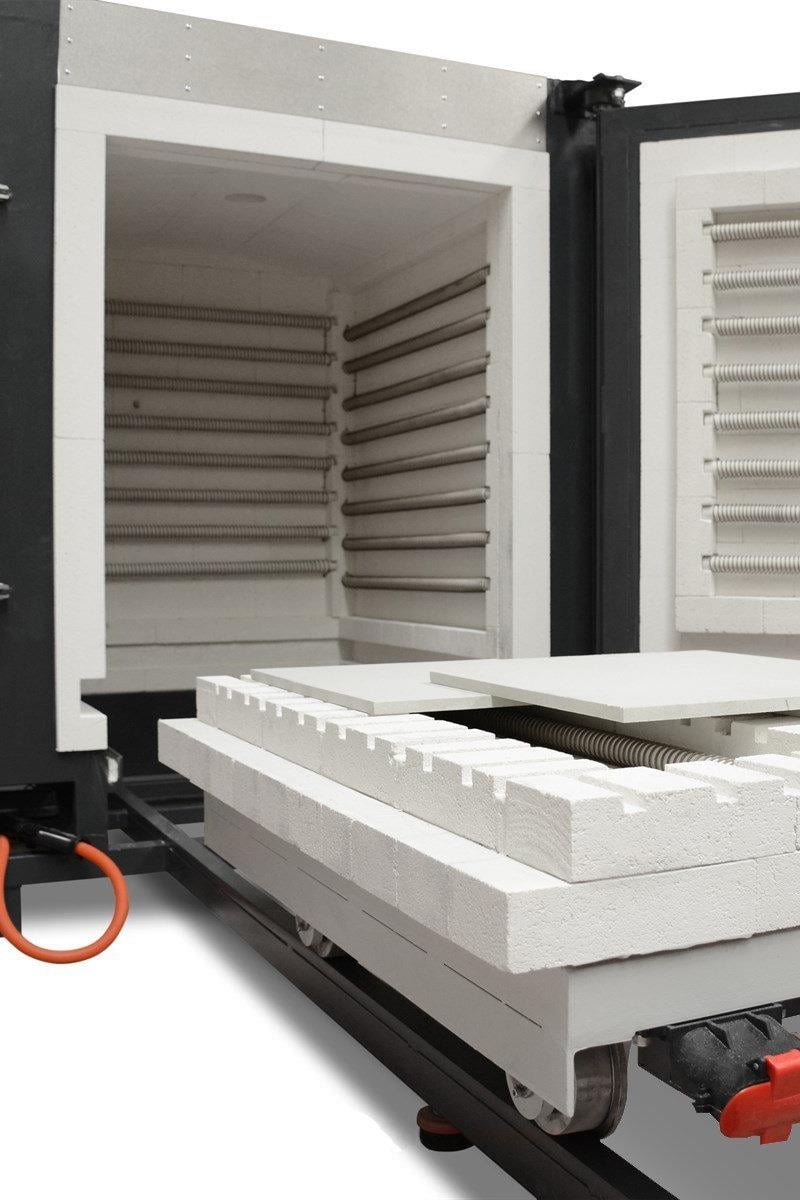

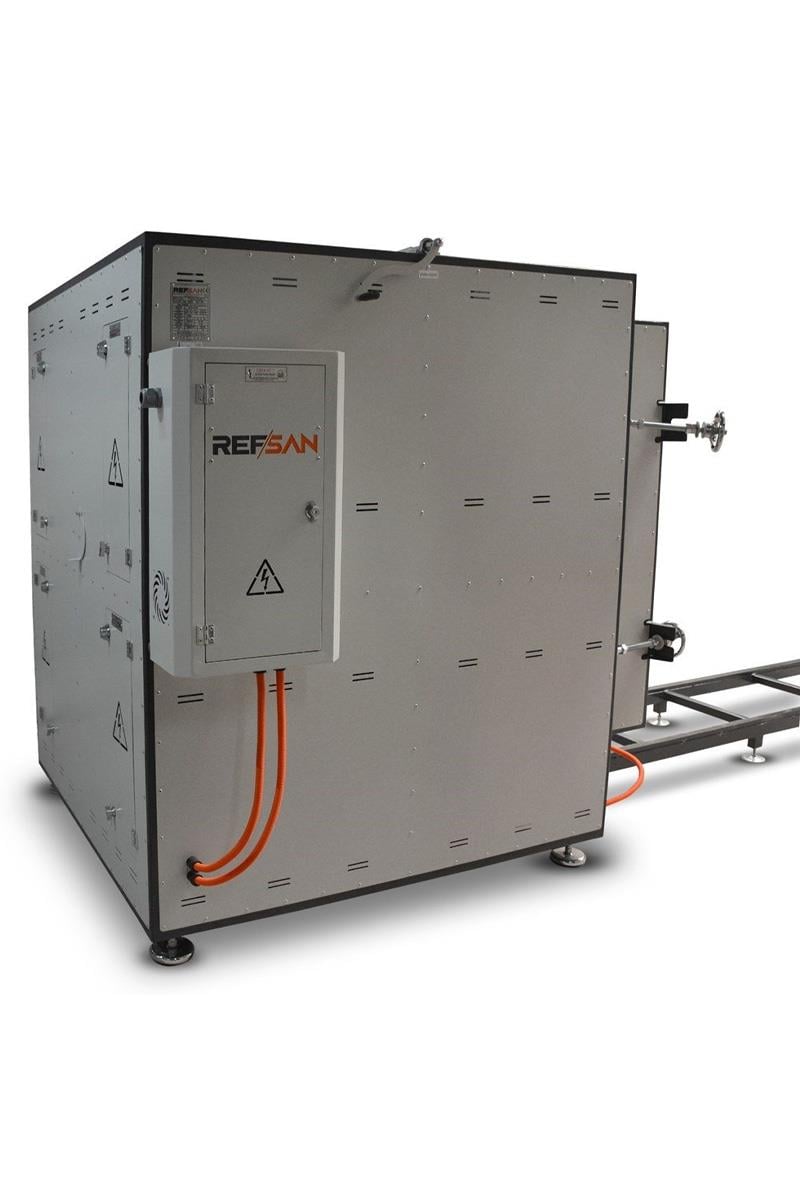

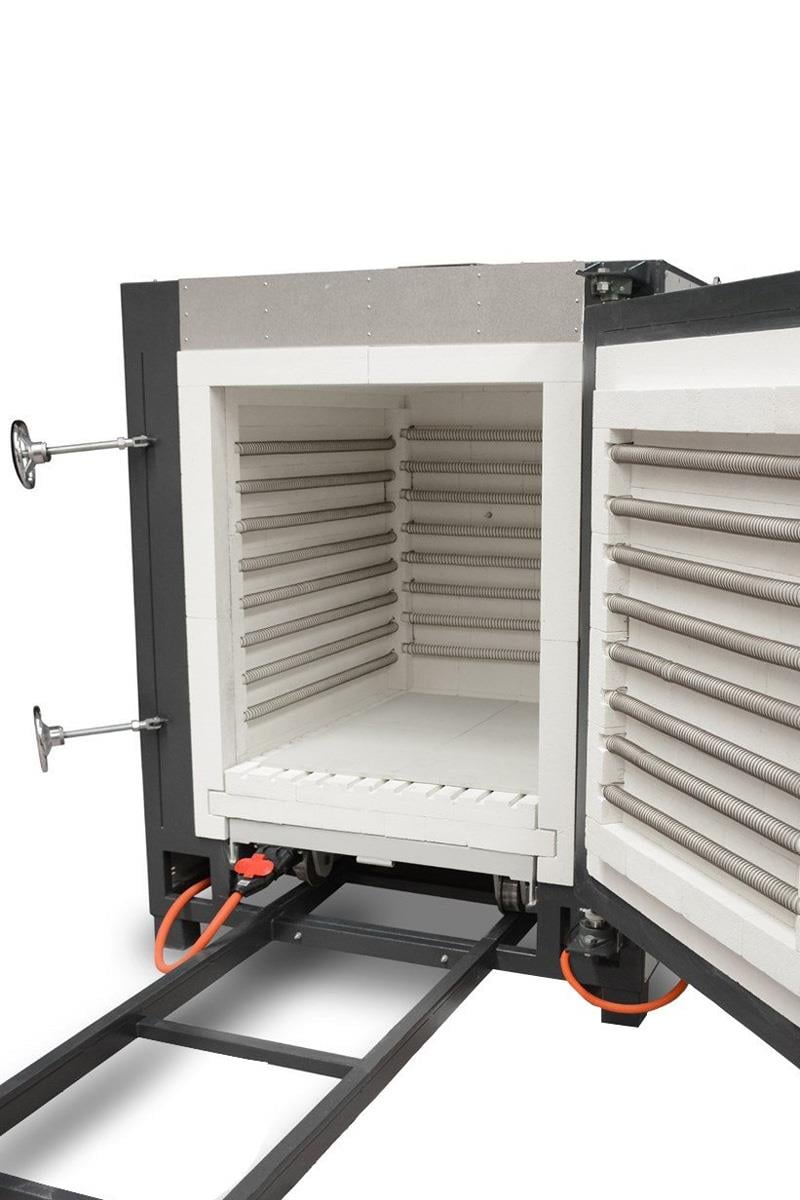

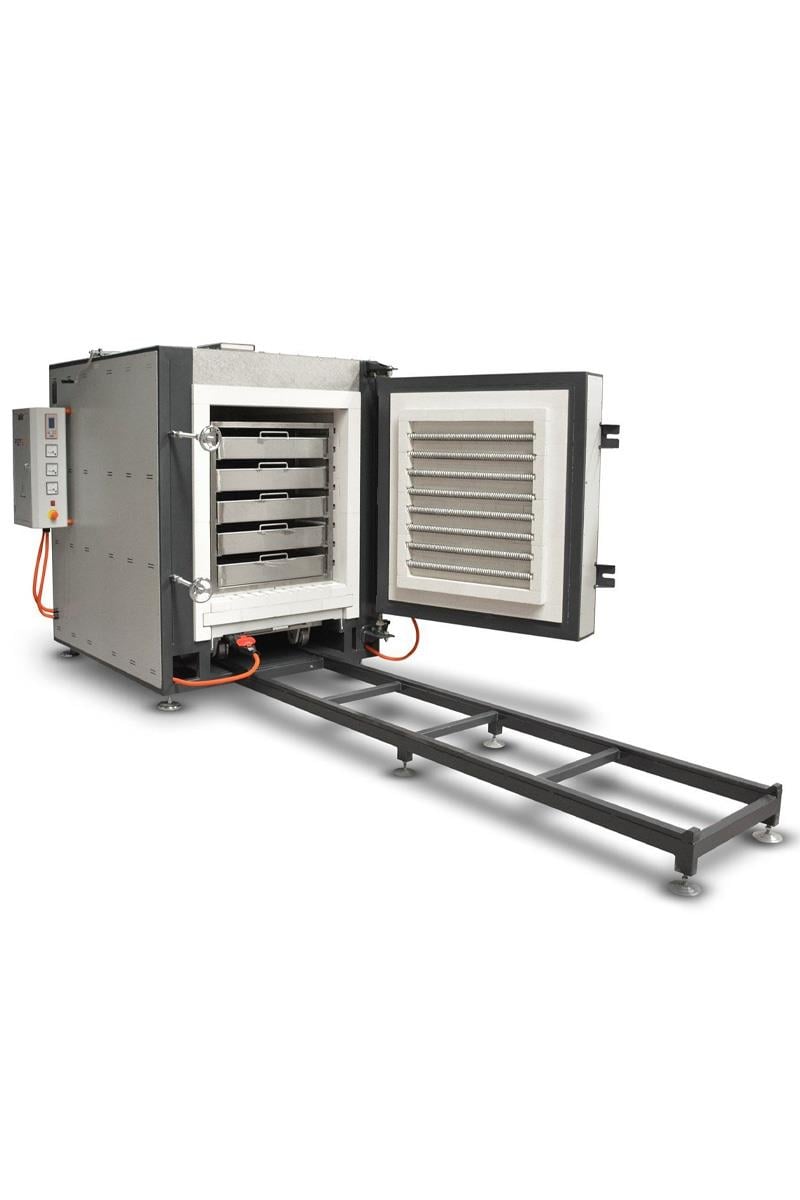

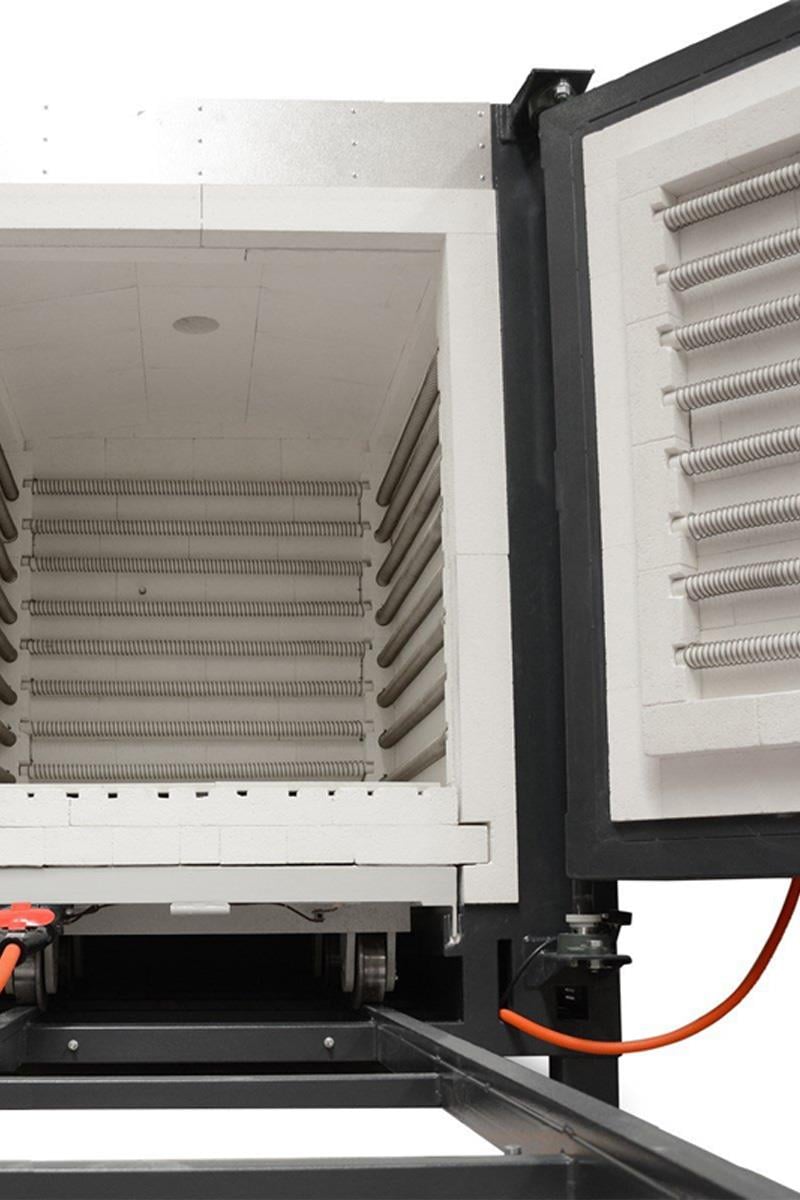

KILN WITH TROLLEY
Maximum Temperature
1320°C
Outer Dimensions (WxDxH)
169x200x213,5cm
Inner Dimensions (WxDxH)
110x130x100cm
Weight
1600 Kg. (Ray Sistemi Hariç)
Connected Load kW
75kW (Kullanılacağı Sektöre Göre Değişir)
65kW (Kullanılacağı Sektöre Göre Değişir)
Thermocouple
S TYPE ( 0 - 1300 °C)
Themocouple Count
3 (Floor+Middle+Top)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Automatically Start-up on Any Desired Time
AVAILABLE
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Exhaust Control
AVAILABLE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Accessories (Optional)
Refractory Kiln Shelf
Refractory Prop
Product Setter
Kiln Shelves (Optional)
40*50 cm.
