RSA1000 KILN WITH TROLLEY
RSA1000 KILN WITH TROLLEY

RSA1000 TROLLEY CERAMIC OVEN TECHNICAL SPECIFICATIONS




SECTORS WHERE IT IS USED


-Ceramics, Heat Treatment, Annealing, Ramat, Screen Printing, Gilding etc.
-Internal dimensions: d110 x w90 x h100cm - 1000dm³ usable internal volume. (Different sizes can be requested)
-Power: 35 - 57 KW. (Depends on the sector used)
-Max. Operating Temperature RS Model 1200 - RSH Model 1300ºC.
-Voltage: 400 V.
-Oven type: Chamber type, with trolley.

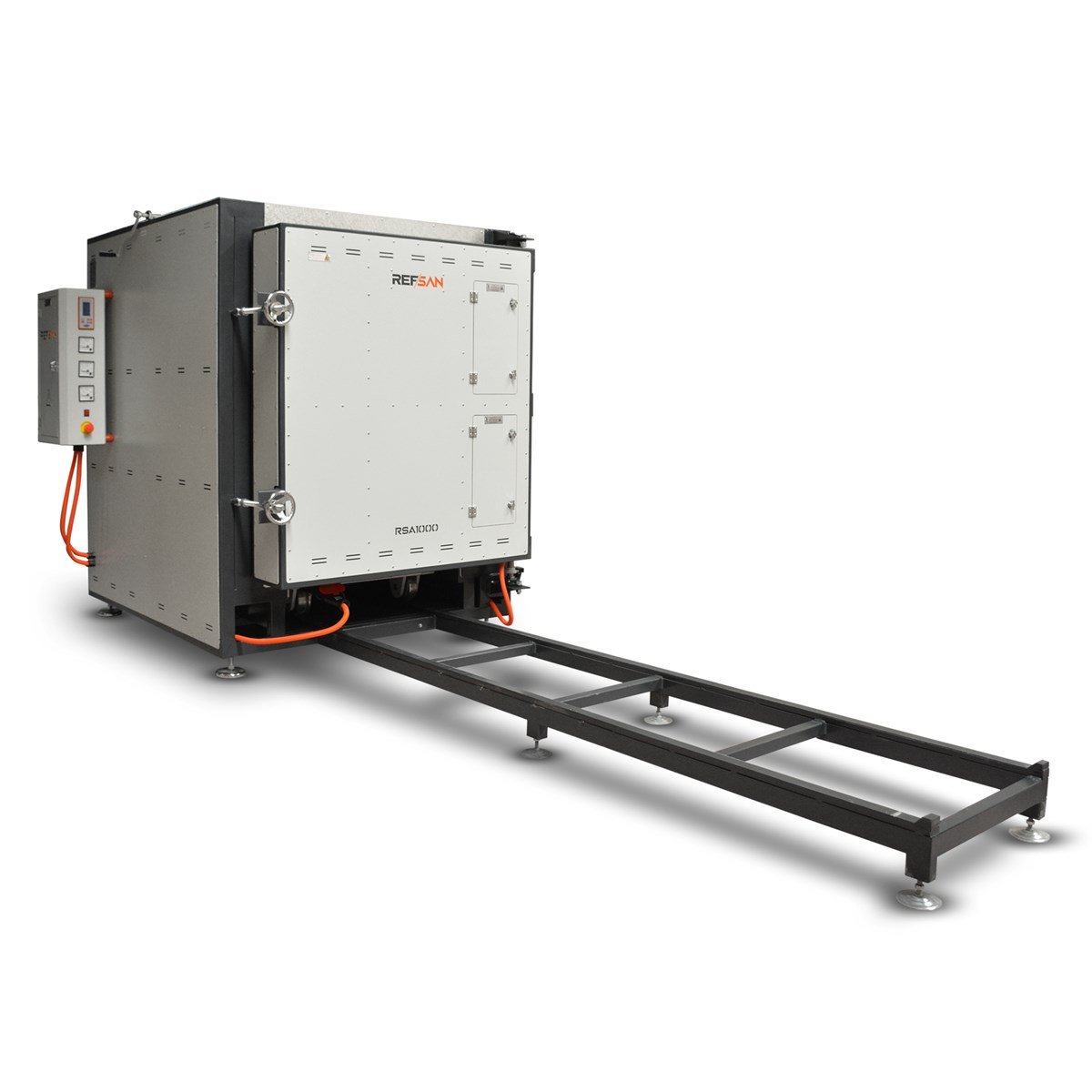

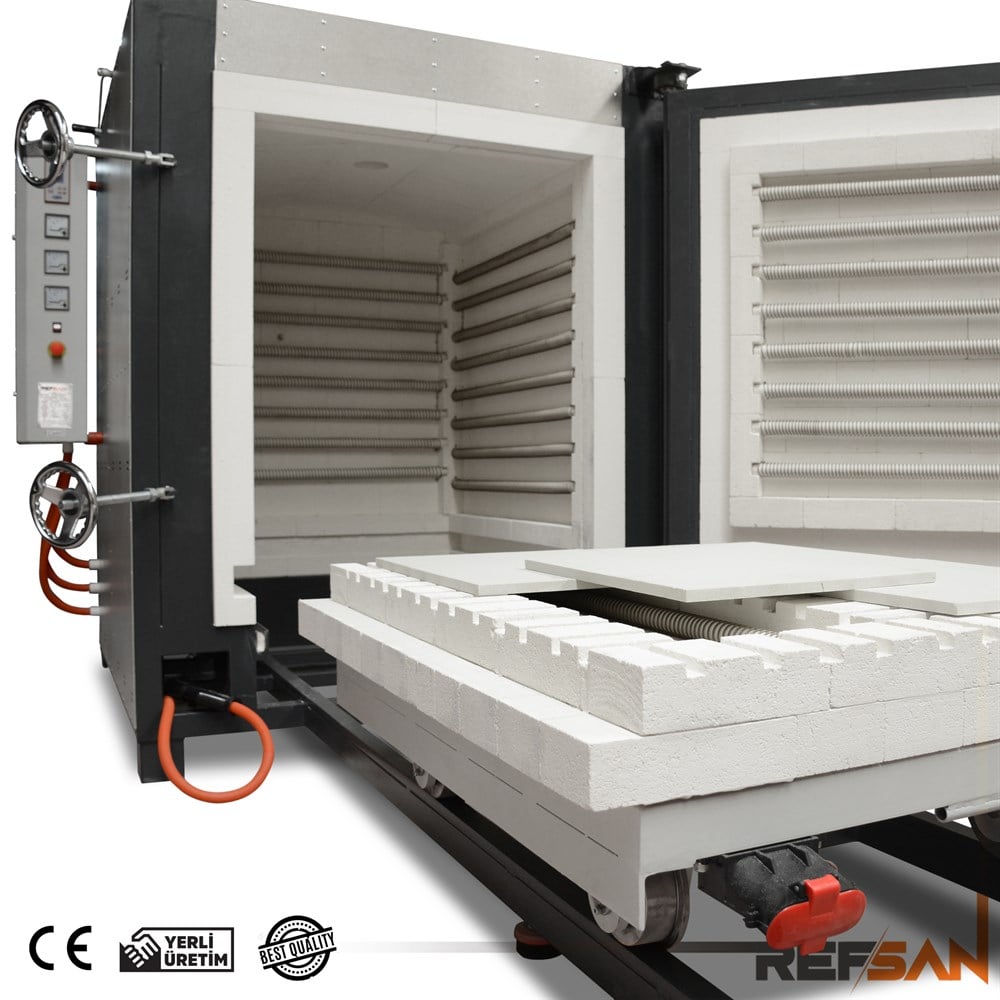

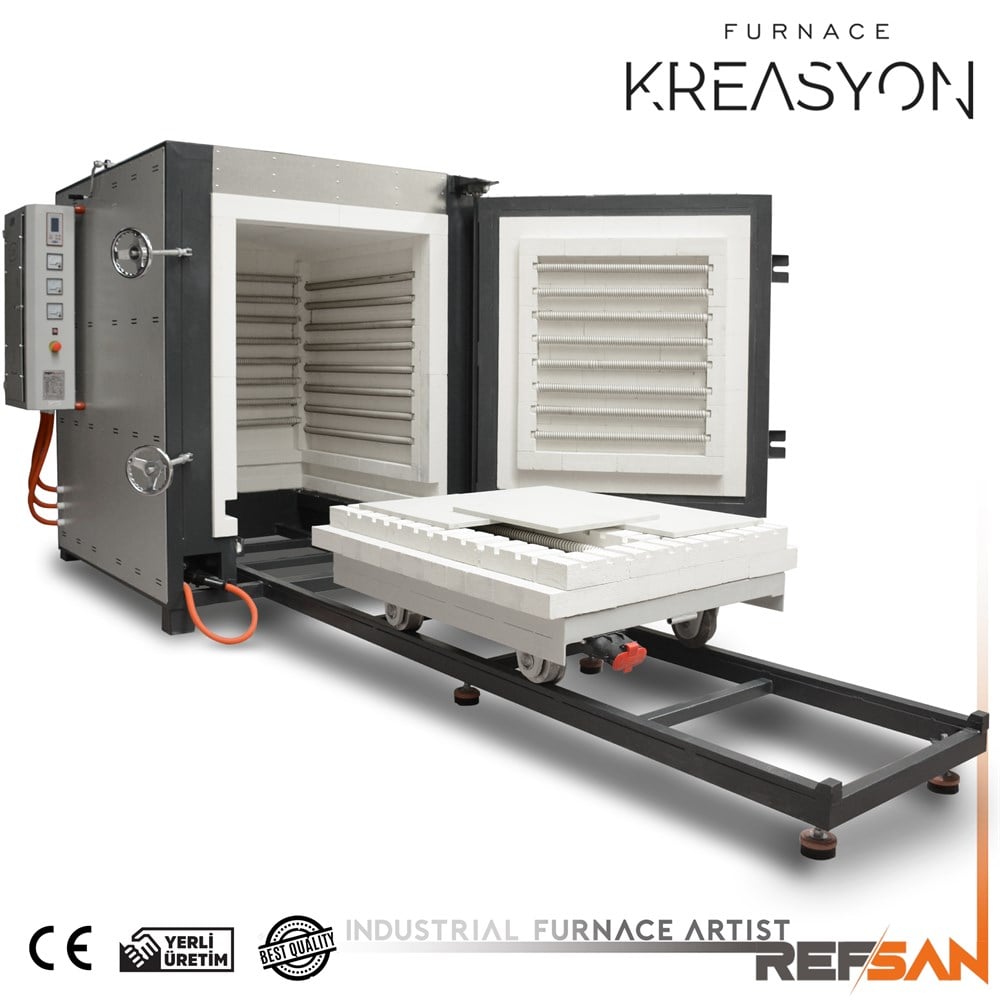

-The car is moving on the rail, manually in and out of the oven. (Uneven ground does not cause problems)
-Insulation content: Alumina brick with 1430°C resistance, board plate with 1260°C resistance, X1000 Board with 1000°C resistance.



NOTE

Fiber is not used in the oven. Compared to fiber ovens; 3-4 times life span, provides very large electricity savings.

-Paint: Interior and exterior surfaces are completely electrostatic powder coated (baked in a special oven at 200ºC)
-Heater : 1400ºC resistant, KANTHAL A1 resistance array.
-Oven floor level is at a suitable height from the ground for ease of operation.
-Electrical control elements are Telemecanique and Siemens.
-Control panel on the oven and oven electrical connections are protected.
-40 mm ventilation gap on 4 surfaces (ensures easy heating and cooling of the oven, easy removal of gas and water vapor and long life of the metal parts)
-Top ventilation cover (automatic opening and closing feature at desired degree)

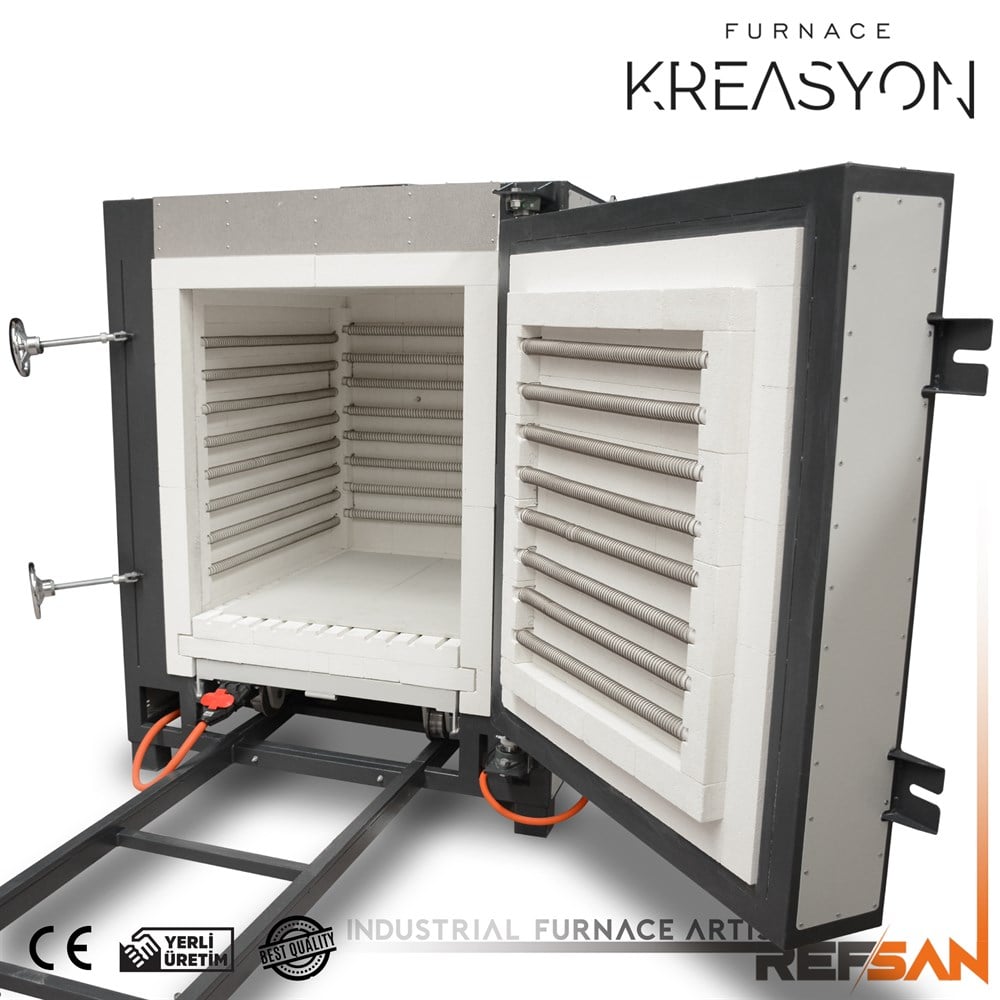

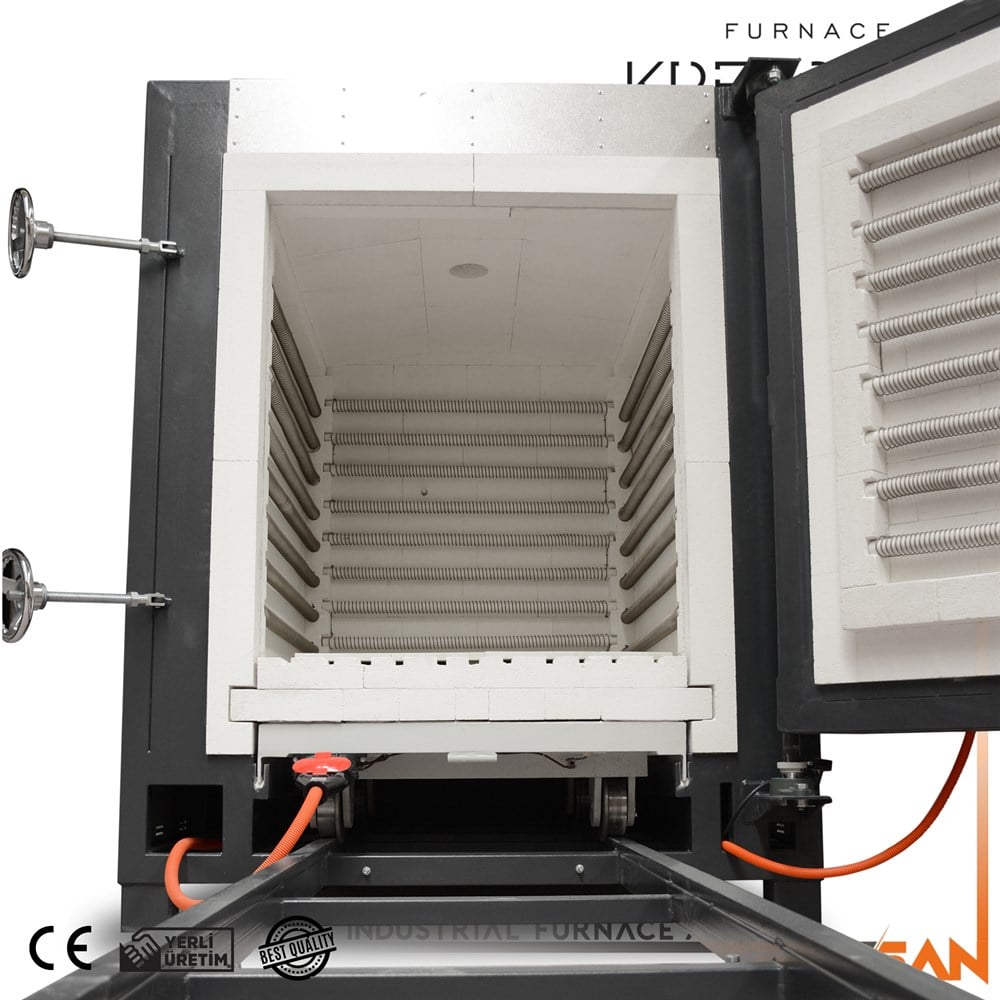

-5 directional heating (homogeneous heat distribution ensures that all products reach the same temperature)


CONTROL RF800 DIGITAL PROGRAMMER


It shows the date, time, program, step, set temperature, time to exit, current temperature and remaining time at the top of the screen.

-Automatic start at future date and time
-Automatically activates itself in power outages.
-Gives a report of the last 8 burns at 2 minute intervals. You can see the whole burn.
-5 programs and the ability to enter 15 sets in each program.
-Close and open the top cover automatically
-Temperature measurement: K Type NiCr-Ni 25-1200ºC for RS Model, S Type Pt-Rd-Pt thermocouple with rear center single point for RSH Model.
-Oven cooling system is free cooling.
-Automatically cuts off the electricity when the door is opened.

-2 Year Warranty + 10 Year Service Warranty
-CE Certified in accordance with European Standards


ACCESSORIES (OPTIONAL)


-To be used in the oven;
-Oven shelf (400x500x15 mm) made of cordierite material and 1250ºC resistant.
-Oven shelf (400x500x12 mm) made of SiC material and 1400°C resistant
-Oven Shelf Leg (Support) : 5cm long, round or square, 1250ºC resistant, interlocking shelf leg.
Side + thermocouple


OPTIONAL FEATURES




Geared trolley system (Cannot be used in double trolley system)
