PORCELAIN KILNS
Porcelain is a ceramic material made by heating materials, generally
including kaolin, in a kiln to temperatures between 1,200 and 1,400 °C (2,200 and 2,600 °F). The toughness, strength, and
translucence of porcelain, relative to other types of pottery, arises mainly from vitrification and the formation of the
mineral mullite within the body at these high temperatures. Though definitions vary, porcelain can be divided into three
main categories: hard-paste, soft-paste and bone china. The category that an object belongs to depends on the composition
of the paste used to make the body of the porcelain object and the firing conditions...

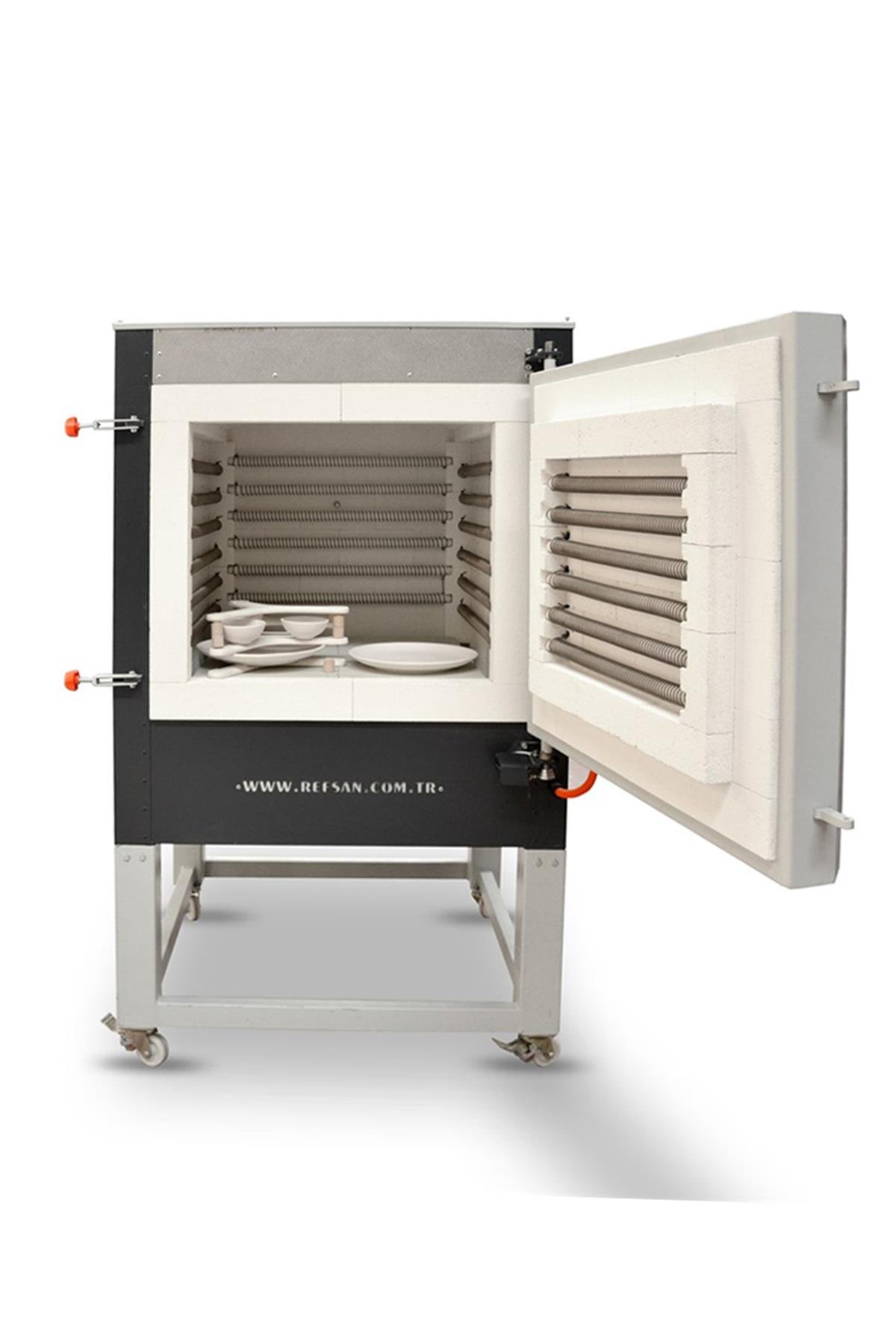

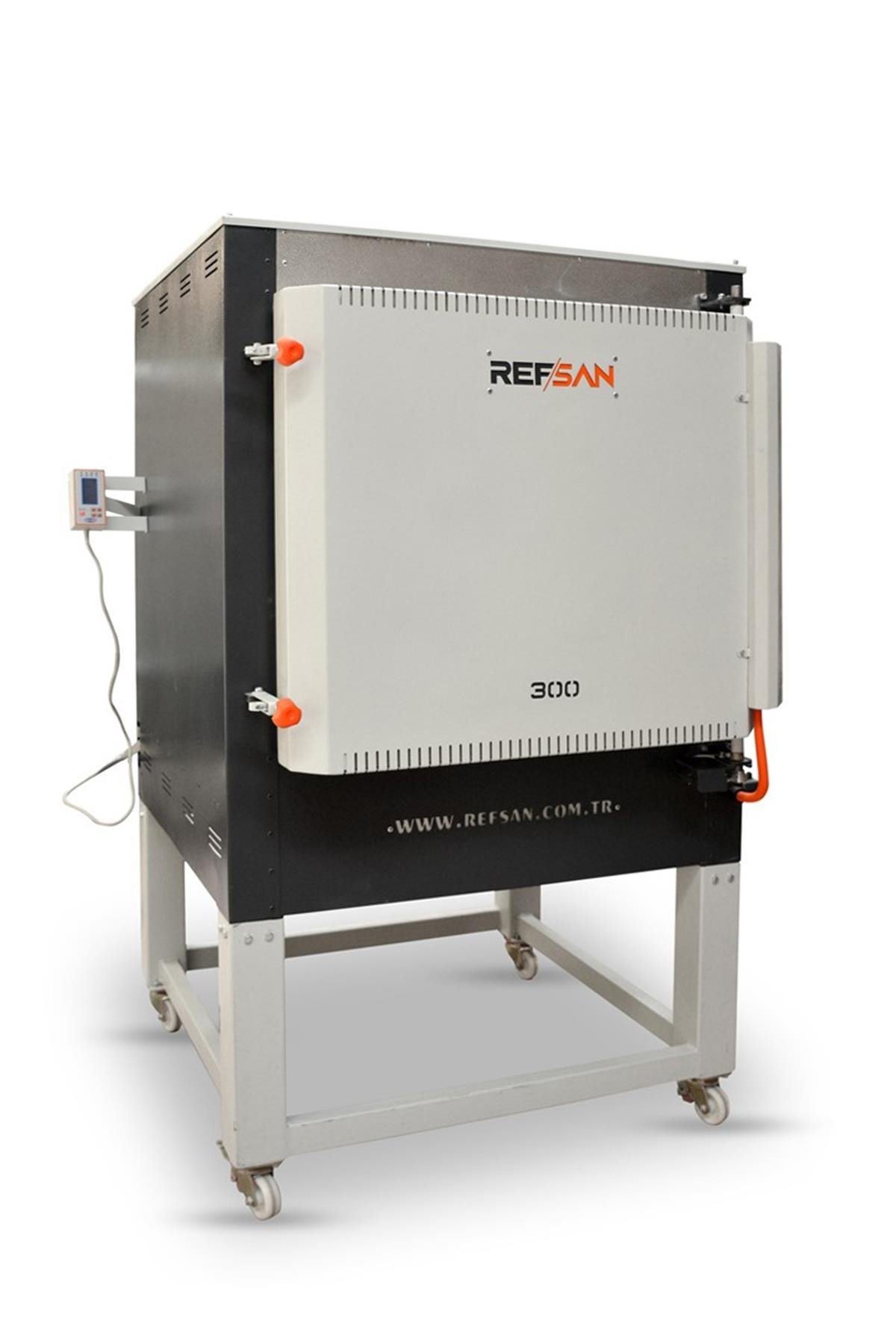

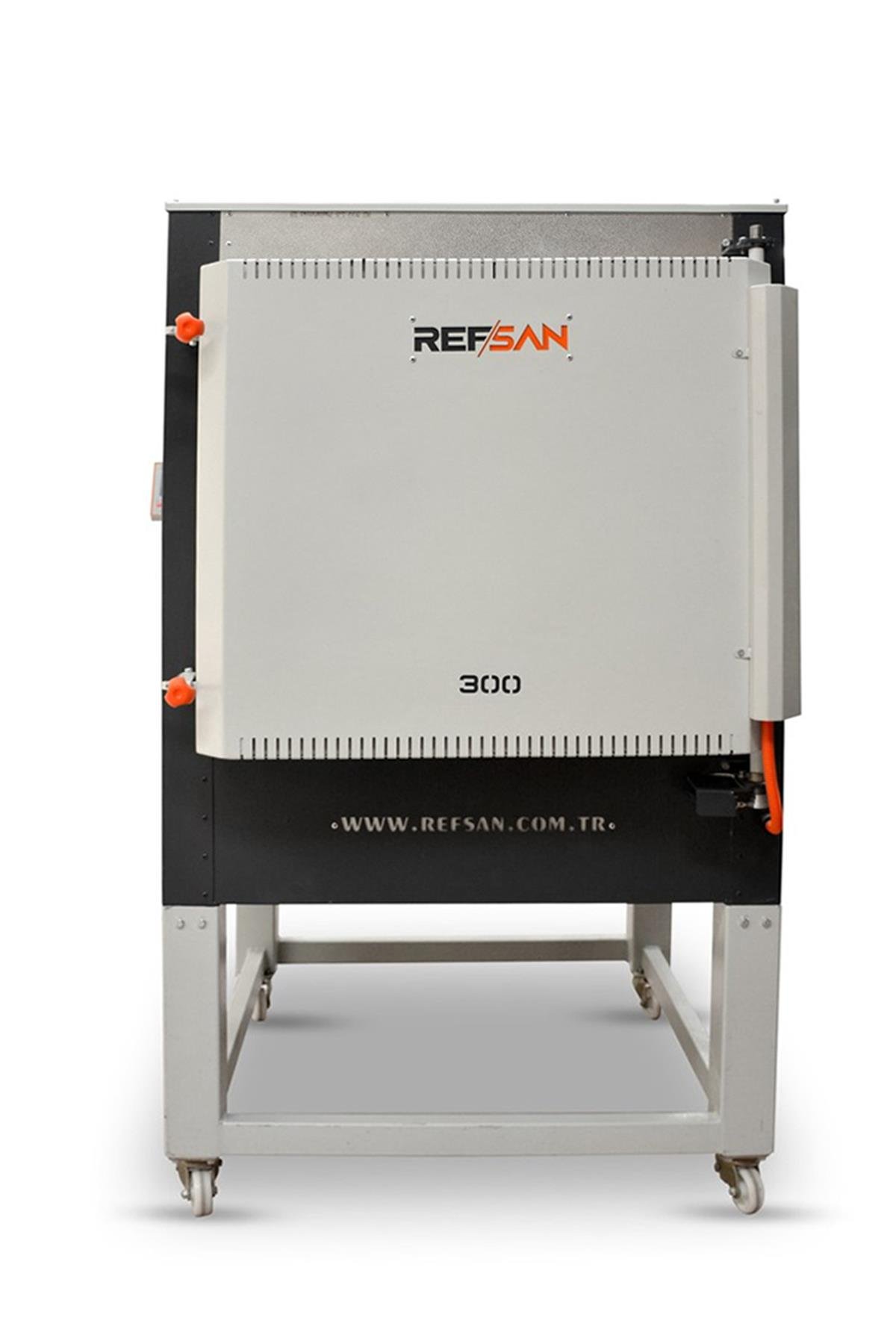

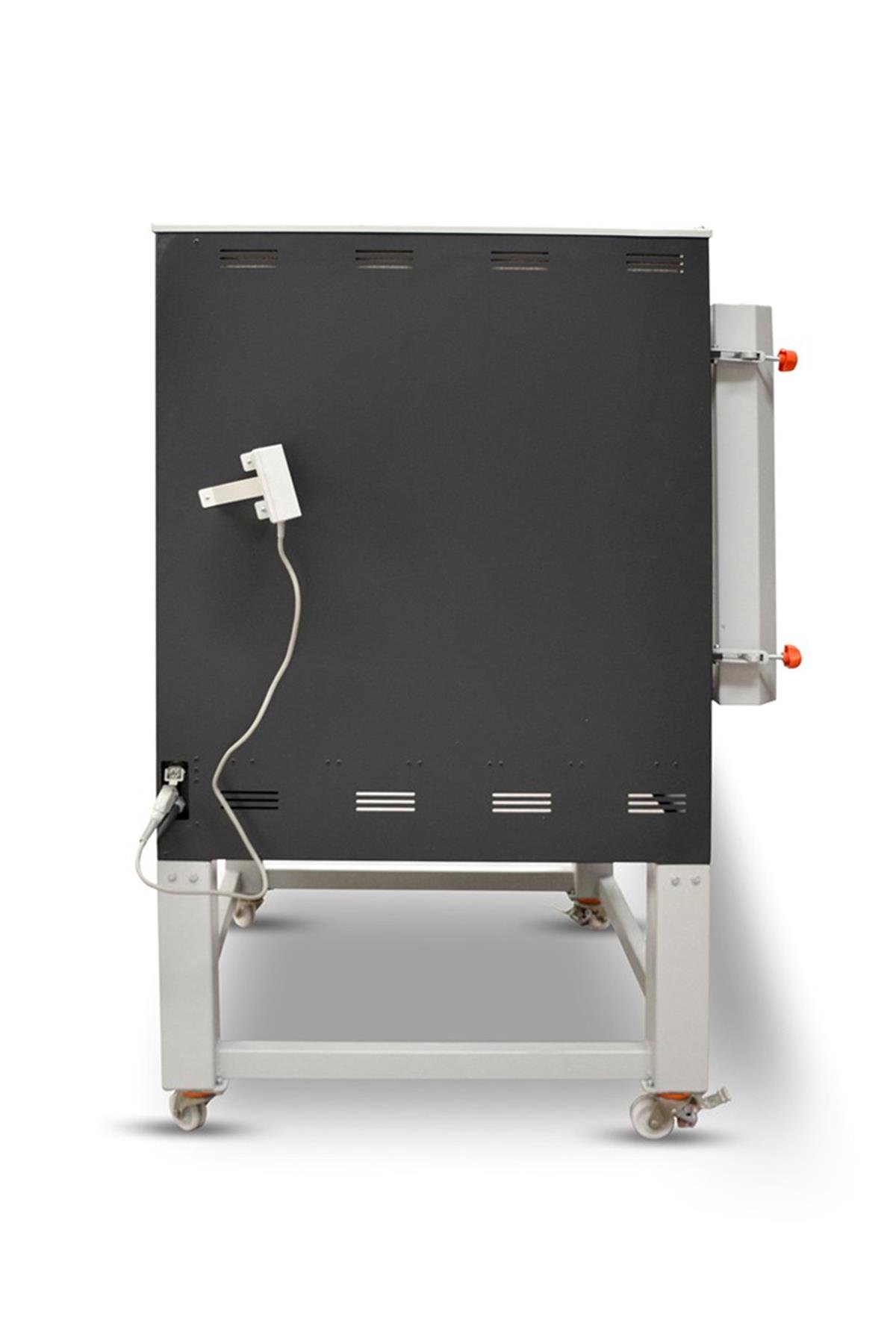

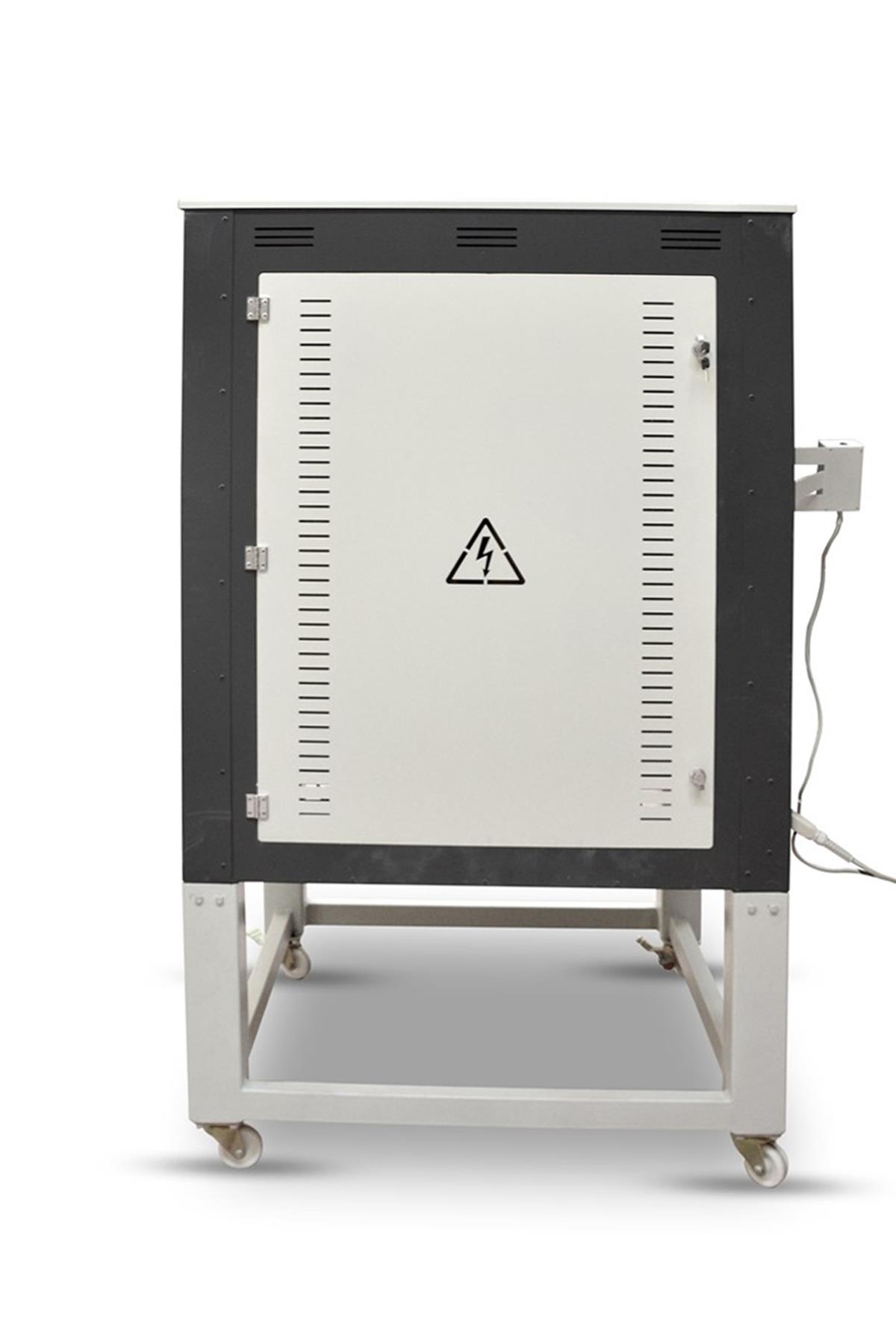

Refsan has been producing porcelain kilns for many years. Porcelain
kilns produced by Refsan are durable for high temperatures, and they have excellent thermal
uniformity.
All of our kilns have;
Kanthal A1 electric resistance wires
Insulation Boards and bricks resistant up to 1430°C
Digital Programmer can be program with 5 programs contain 15 steps in each
program
2 years Warranty, 10 years technical Support
CE Certificate
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Maximum Temperature
1300°C
Inner Dimensions (WxDxH)
70x70x60cm
Outer Dimensions (WxDxH)
108x126x180cm
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM AND 15 STEPS FOR EACH PROGRAM)
Thermocouple
S TYPE ( 0 - 1300 °C)
Power
380 V (Three-Phase)
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Accessories (Optional)
Refractory Kiln Shelf
Refractory Prop
Kiln Shelves (Optional)
30*30 cm
60*60 cm.
