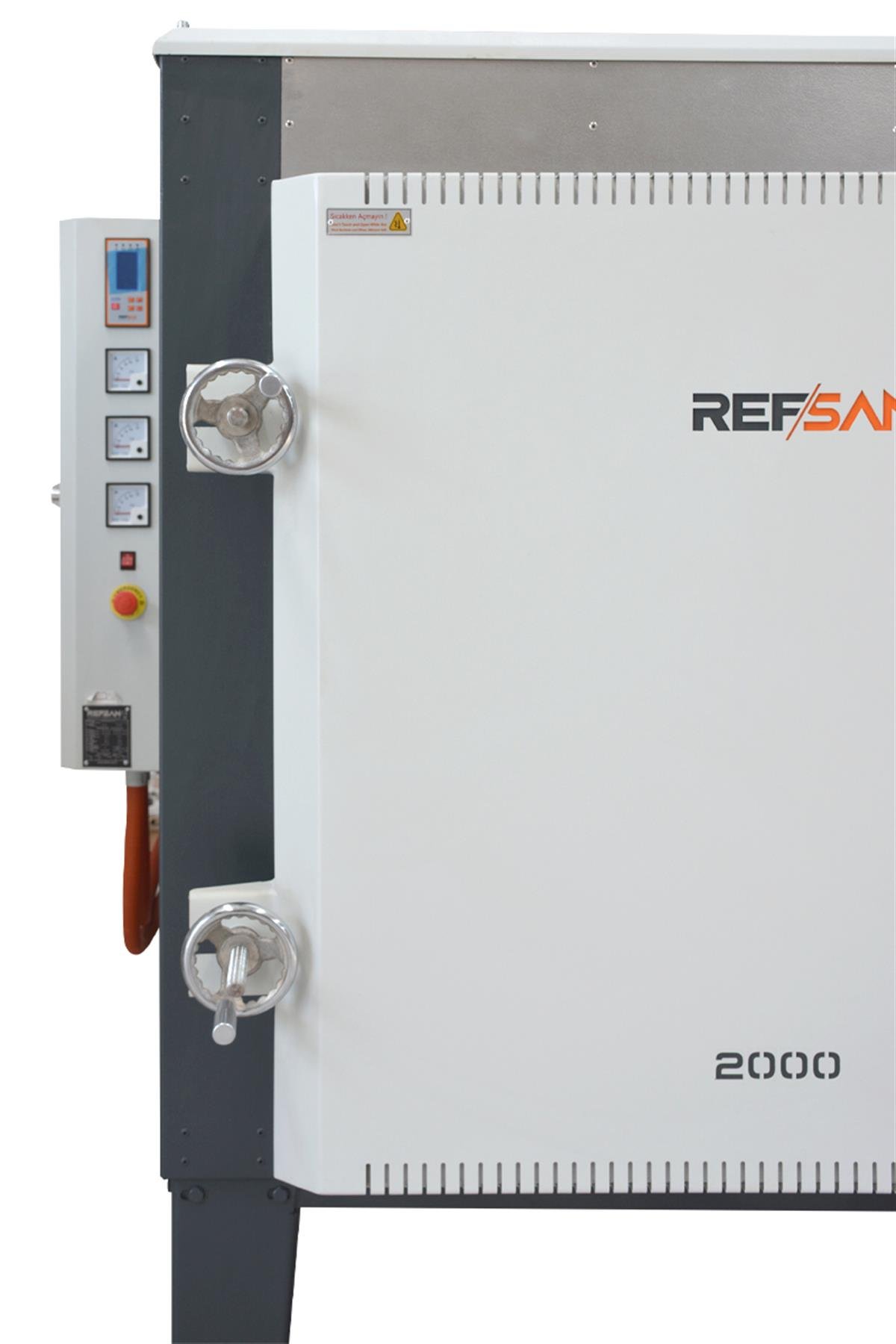

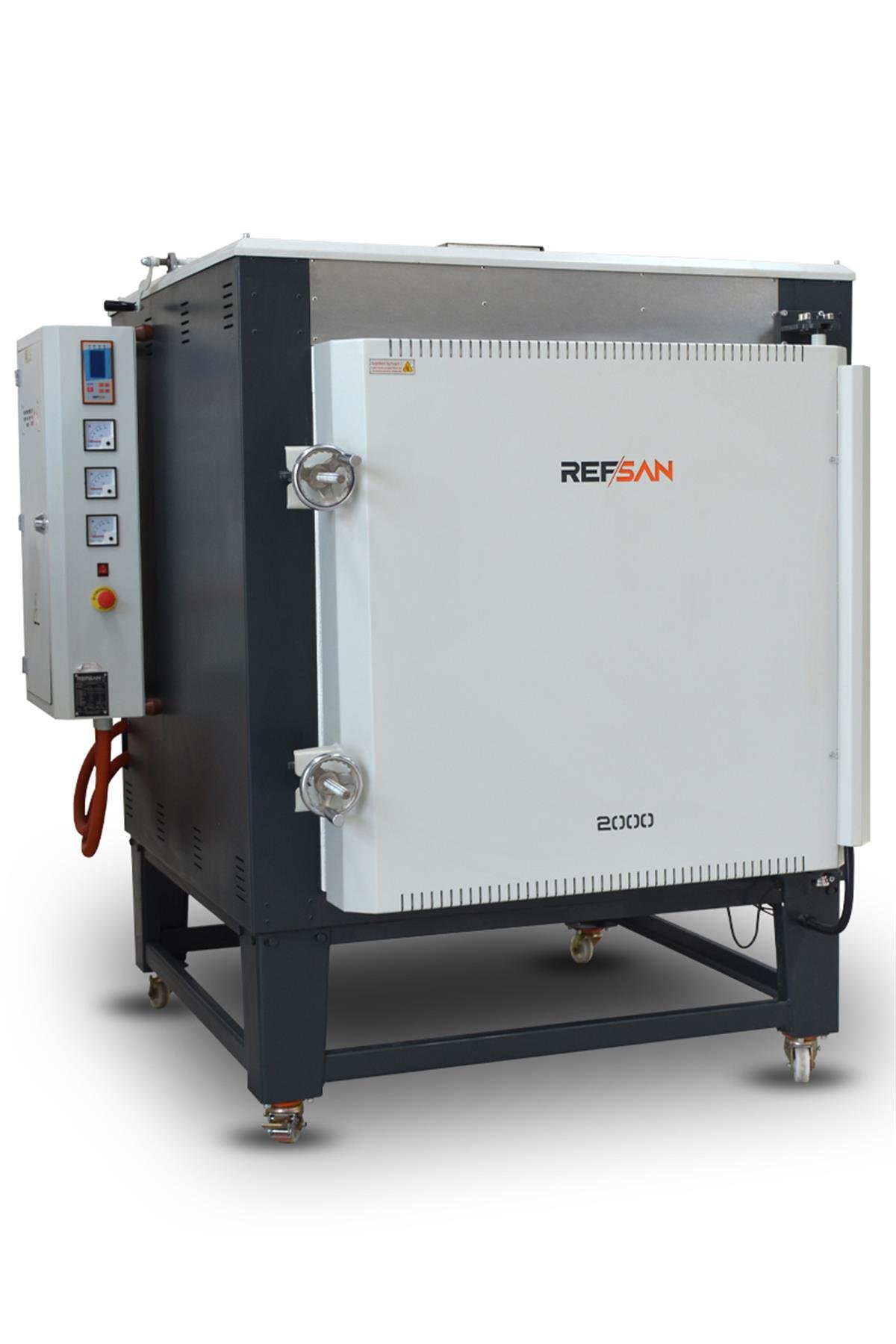

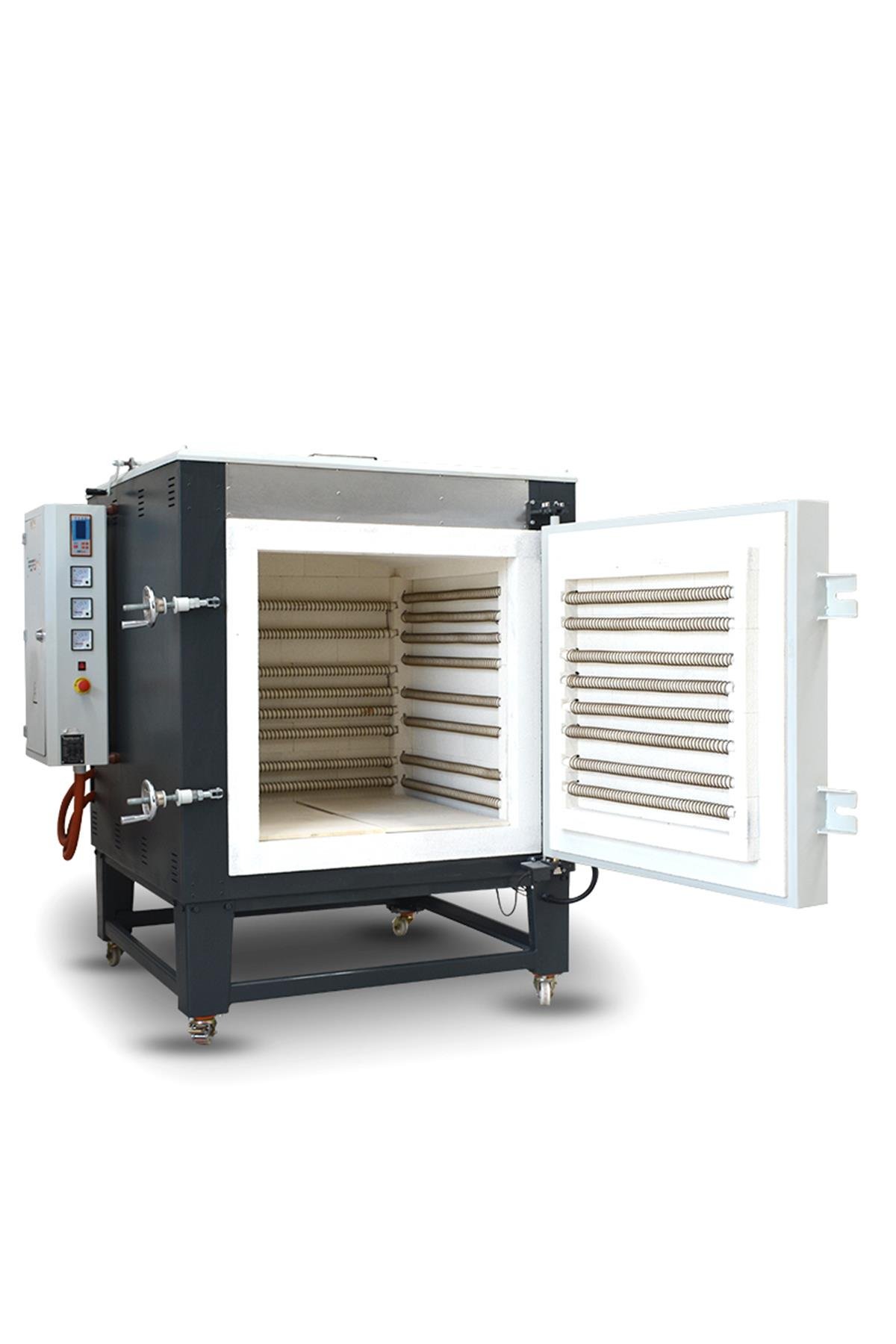

RS2.000 CERAMIC KILN (R12381)

0.00
Brand : REFSAN
Price : 0,00€
Barkod : 8681910650183



CERAMIC KILNS

Ceramics are classified as inorganic and nonmetallic materials that are essential to our daily lifestyle.  Ceramic and materials engineers are the people who design the processes in which these products can be made, create new types of ceramic products, and find different uses for ceramic products in everyday life.

            Ceramics are all around us.  This category of materials includes things like tile, bricks, plates, glass, and toilets.  Ceramics can be found in products like watches (quartz tuning forks-the time keeping devices in watches), snow skies (piezoelectric-ceramics that stress when a voltage is applied to them), automobiles (sparkplugs and ceramic engine parts found in racecars), and phone lines.  They can also be found on space shuttles, appliances (enamel coatings), and airplanes (nose cones).  Depending on their method of formation, ceramics can be dense or lightweight.  Typically, they will demonstrate excellent strength and hardness properties; however, they are often brittle in nature.  Ceramics can also be formed to serve as electrically conductive materials, objects allowing electricity to pass through their mass, or insulators, materials preventing the flow of electricity.  Some ceramics, like superconductors, also display magnetic properties.

Refsan has been producing kilns for ceramic industries about every dimension for many years.

All of our kilns have;

Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate

Model
RS2.000
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
2000 LT. (2 m3)
Maximum Temperature
1200°C
Inner Dimensions (WxDxH)
170x110x110cm
Weight
1600 kg.
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 3X25 + 16 + Grounding - Fuse (Amps) 3X100
Connected Load kW
90KW 105 KW.
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Door Lock
AVAILABLE

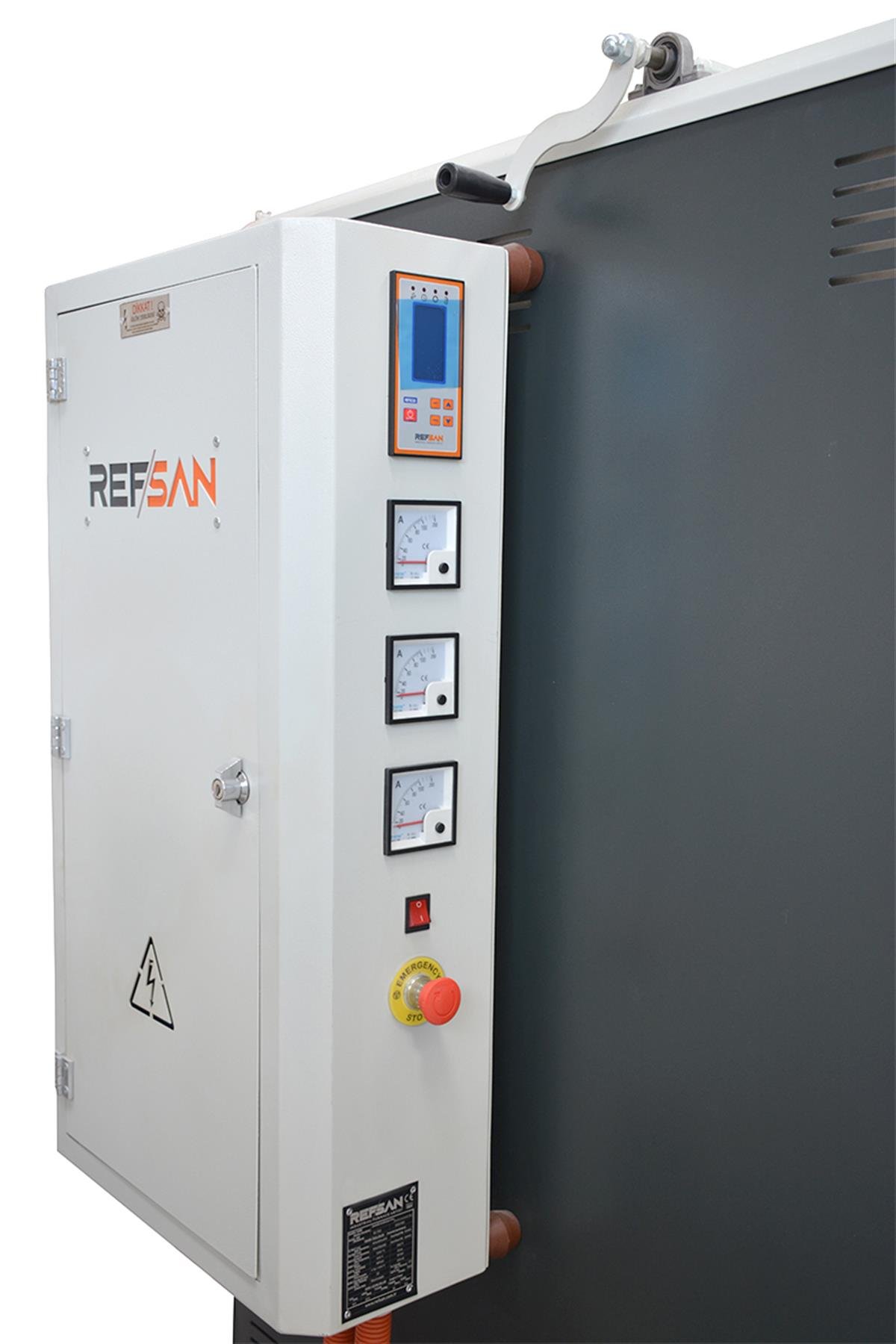

Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
40*50 cm.
