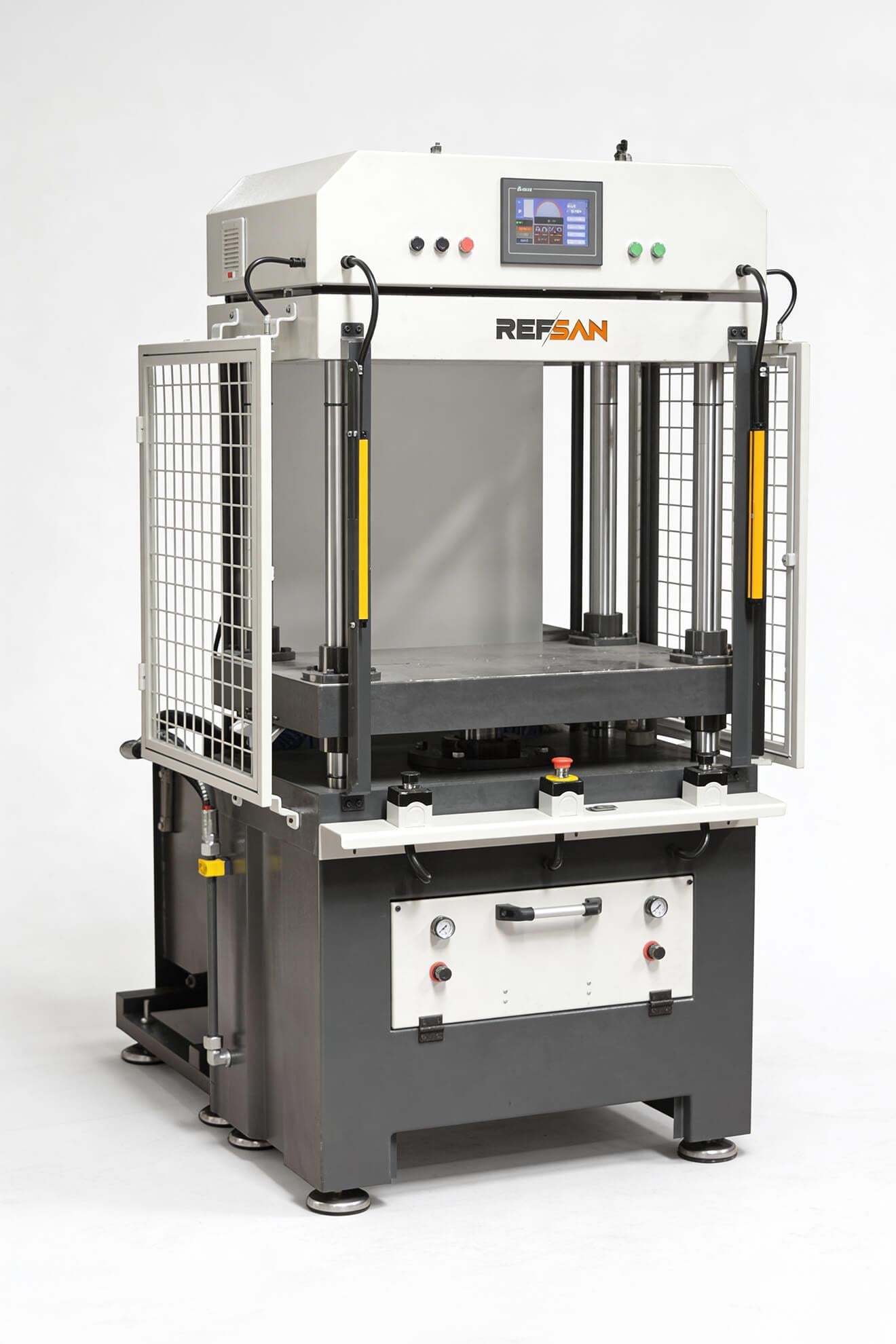

RAM Press

Product Dimensions: 130 x 140 x 210 cm
-Ability to adjust 1/10 of a millimeter sensitivity
-Hand Protection Barrier
-Easy passage through doors
-Can be transported by pallet truck
-Easy installation
-The table moves on 4 columns.
It is produced as manual and semi-automatic use.
-Air installation is available for plaster molds.
-2 Year Warranty
-10 year Service Guarantee

NOTE: 1.000 PRINTING / SHIFT. (But it would be realistic to consider 800 pieces / Shift according to the personnel situation)

NOTE: 46 number oil is added by the customer.


METAL MOLDED CASE

It is made of 100% U iron. Product thickness can change according to the model.
Double side milling wiped.
Electrostatic Painted.
It is manufactured in REFSAN Factory.


PLASTER INSIDE THE CASE



Ata Press Plaster (2.85) is used.
In order to get the product with comfortable air, quality tubing is used inside.
In REFSAN Plaster Workshop, the model you want can be made by a professional team.







MODEL RAM 46 RAM 60

Engine Power

5,5 KW

   5,5 KW

Voltage

400 V.

400 V.

Piston Diameter

140 mm.

160 mm.

Piston Pressing Power

23 Tons (150 Bar)

46 Tons (300 Bar)

30 Tons (150 Bar)

60 Tons (300 Bar)

Cylinder Working Distance 490 mm. 490 mm.

Working method

Hydraulic Fluid Capacity

From Down to Up

192 liter

From Down to Up

192 liter

Dimension (W x D x H )

Total Weigt

1100x1500x2000mm.

1215 Kg.

1100x1500x2000mm.

1295 Kg.

Plate Dimension

950x600mm.

950x600mm.
