Nidec (Shimpo) Pugmill NRA 04S
Nidec (Shimpo) Pugmill NRA 04S
Nidec (Shimpo) Pugmill NRA 04S
NIDEC SHIMPO

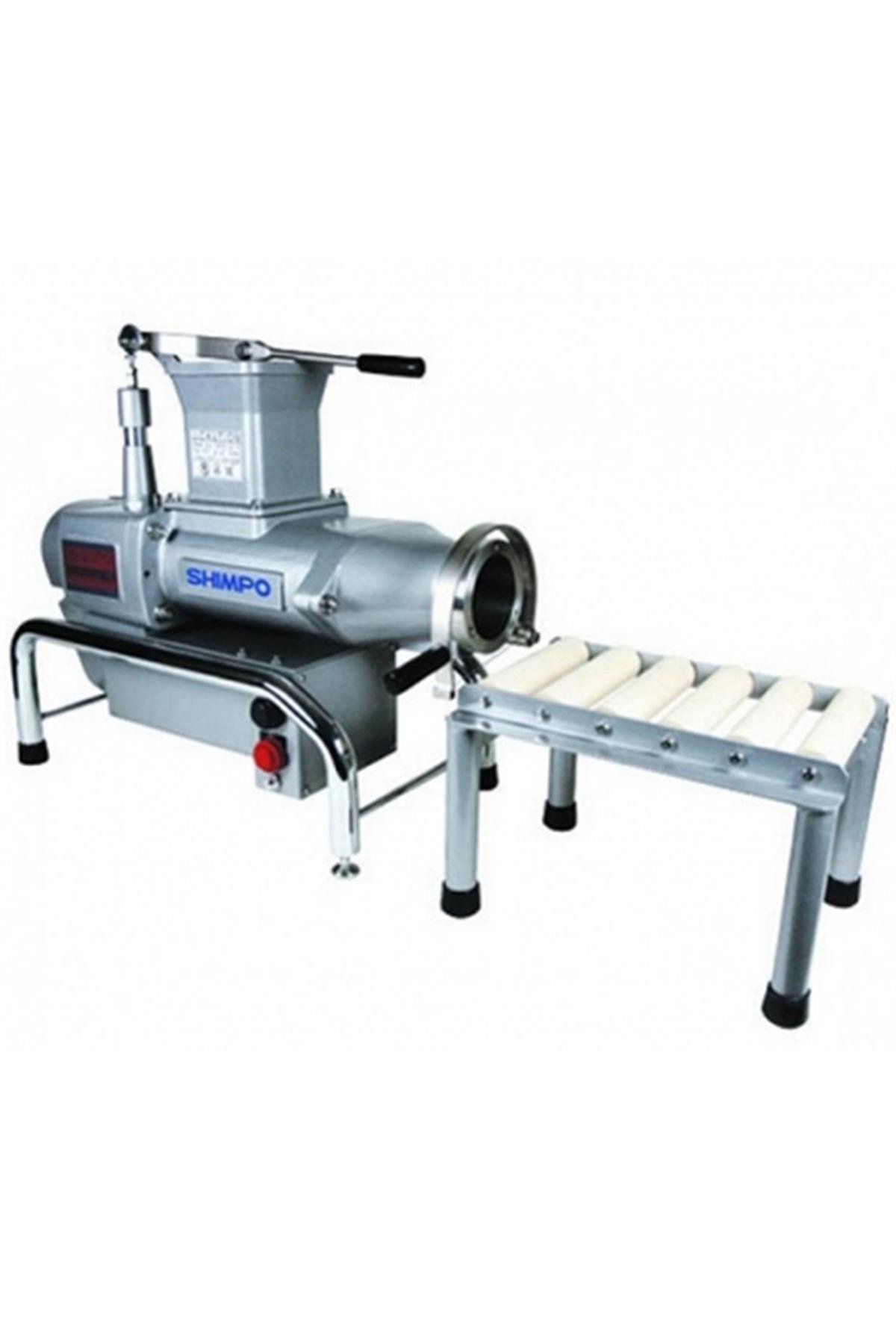

Clay Processing Machine NRA-04 / NRA-04S

The NRA-04 / NRA-04S clay processing machine is a professional twin-auger machine designed for reprocessing, compressing and homogenizing clay in ceramic production. Thanks to its newly designed twin-auger system and powerful gear-driven motor, it supports a consistent clay preparation process in studios and production areas.

Thanks to its high compression and extrusion capacity, it helps produce nearly air-free clay. This structure improves the workability of the clay and supports more stable production results. The NRA-04S model offers more durable use with its stainless steel nozzle, auger housing and cylinders.

Capacity 400 kg/hour
Motor 200 W
Power Supply 230 V
Structure Twin auger

Twin Auger System

The twin-auger structure in the machine helps the clay move evenly through the body. During processing, the clay is compressed, kneaded and brought to a more consistent texture. This structure makes it easier to prepare clay for production before wheel throwing, mold work, slab work or shaping processes.

High Compression and Extrusion

The NRA-04 / NRA-04S models are suitable for intensive studio use with an extrusion capacity of 400 kg/hour. The compression structure, which helps reduce air pockets inside the clay, enables more homogeneous and workable clay to be obtained.

Difference Between NRA-04 and NRA-04S

In the NRA-04 model, the auger body material is aluminum. In the NRA-04S model, the auger body is manufactured from stainless steel. NRA-04S can also be preferred by studios that require more durable and long-lasting use with its high-quality stainless steel nozzle, auger housing and cylinders.

Technical Information

Model NRA-04 / NRA-04S
Dimensions 665 mm (1025 mm including clay shelf) x 335 x 560 mm
Weight NRA-04: 65 kg / NRA-04S: 75 kg
Auger Rotation Speed 19 rpm / 50 Hz
Motor 200 W, 4P, single phase, 230 V
Extrusion Capacity 400 kg/hour
Structure Twin auger
Auger Material Stainless steel
Auger Body Material NRA-04: Aluminum / NRA-04S: Stainless steel
Outlet Diameter 90 mm diameter

Use Areas

The NRA-04 / NRA-04S clay processing machine can be used in ceramic studios, educational institutions, production facilities and clay preparation areas. It offers practical use in processes where clay needs to be made more homogeneous, compressed and ready for production.

Brand
Nidec / Shimpo
Capacity (kg / hour)
400 kg / hour
Voltage
230 V
Helix Rotation
19 rpm
Helix Count
2
Output Diameter
90 mm.
Weight
75 kg
Body Material
Stainless Steel
Helix Material
Stainless Steel
CE Certification
OK
Distributor of Turkey
REFSAN
