Nidec (Shimpo) Pugmill NRA 04 (R6223)

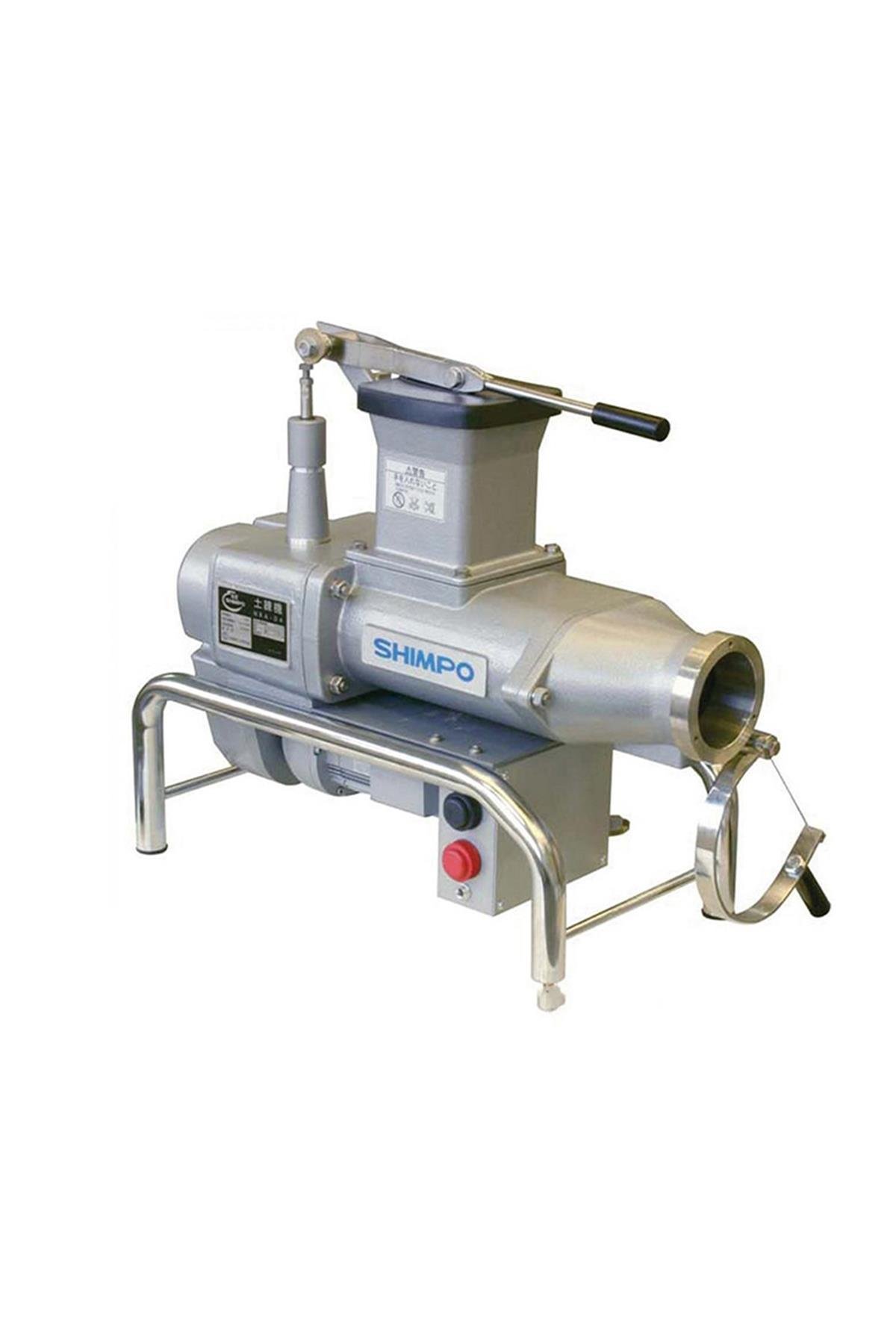

NIDEC (SHIMPO) PUGMILL NRA 04

The NRA-04/04S pugmill features newly designed twin augers and a forceful direct gear driven motor. Its high quality wedging and extruding capacity obtained produces virtually air-free clay and increases clay workability that makes this compact pugmill one of the most efficient and competitive on the market.

The pugmill NRA-series (extruders) are remarkable because of their compact construction and noiselessness. All types are equipped with double-spirals. This increases the mixing-effect and makes the filling in of the clay easier. The case of the machines is out of rustless Aluminium-case-hardening (in the case of pugmill NRA 04S of high-grade steel). For cleaning purposes all extruders can easily be taken off. They are delivered including safety equipment and wheel-table. Pugmills are an important help when preparing masses. They homogenize and stabilize the masses to a cord. However, pugmills cannot extrude superfluous water from the masses.

Main motor: 200 W, 50 Hz
Connection: 230 V, 1-phasig
*Power: 400 kg/h
Ø of the mouth-piece ( (mm): 90
Size of the filler-hole (mm): 135 x 133
Measurements LxBxH (mm): 1025 x 335 x 560 (including supporttable or wheel-table)
Material of the double-spiral: high grade steel
Material of the case: Aluminium cast
* The dates for the power given in the catalogue are theoretical dates. In practice half the power can be achieved.

The original spare parts are not selling by REFSAN, it is only used in service by REFSAN.
