Nidec Shimpo RK-55 VL Pottery Wheel
Nidec Shimpo

Nidec Shimpo RK 55 Pottery Wheel

User-friendly pottery wheel with 12 kg centering capacity, foot pedal speed control, and compact design

Economical, Compact and User-Friendly

Nidec Shimpo RK-55 Pottery Wheel is a compact wheel designed for practical use in ceramics and pottery, featuring a 12 kg centering capacity, 0–250 rpm wheel head speed, and 100 W motor power.

Developed especially for beginners, ceramic educational institutions, course centers, and studios, the RK-55 combines quiet and smooth motor performance with a wide speed range controlled by a foot pedal.

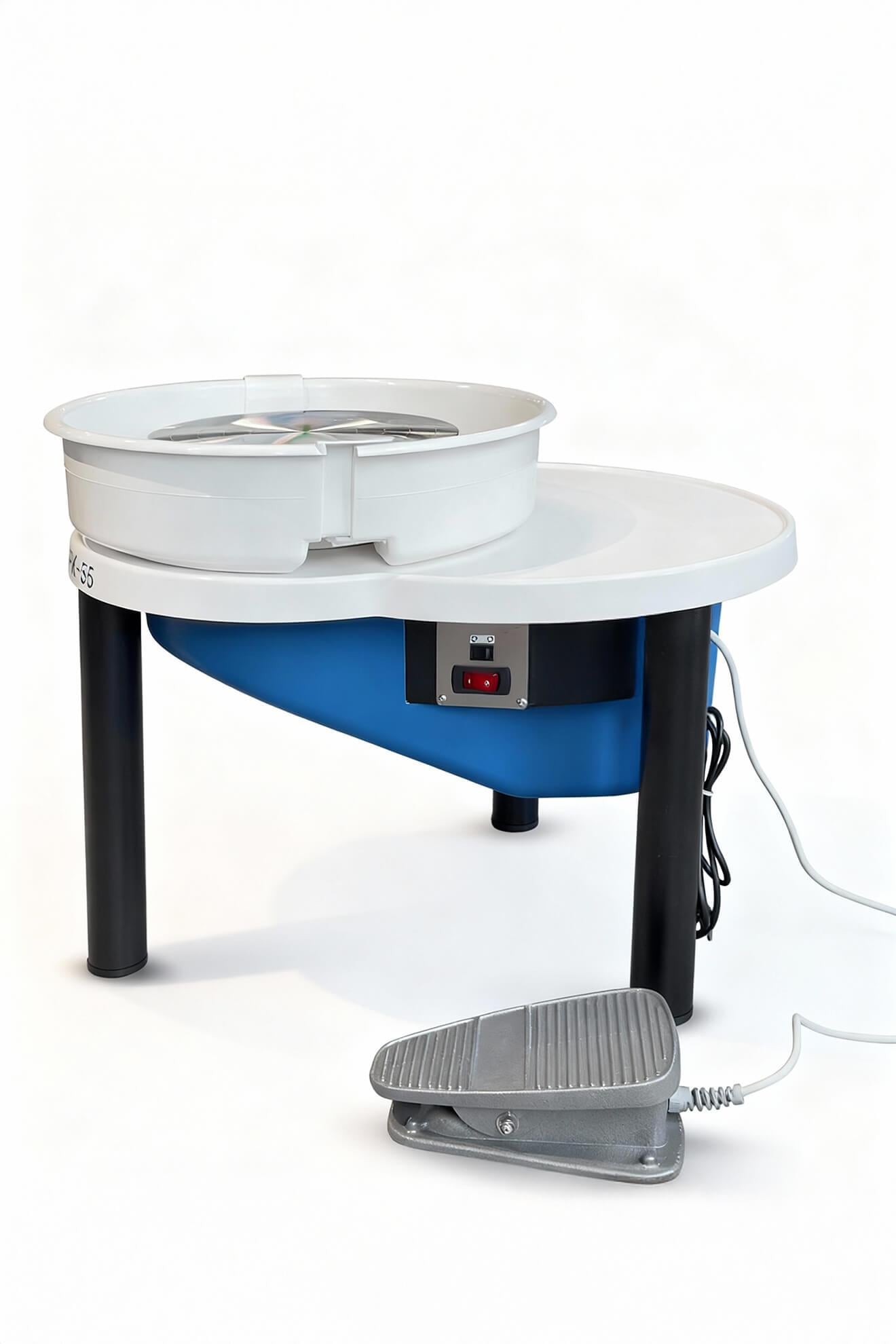

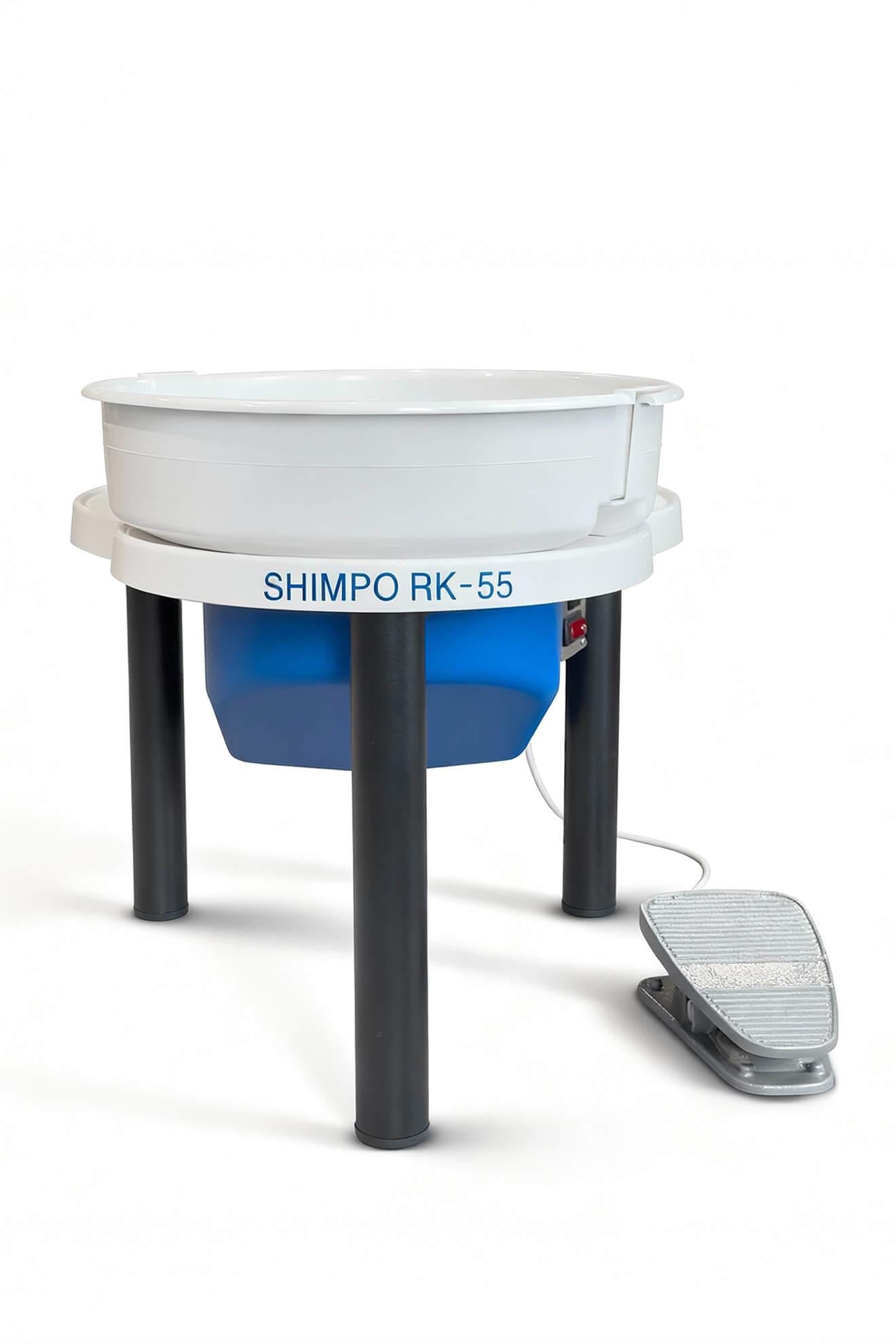

Nidec Shimpo RK-55 VL electric pottery wheel
Nidec Shimpo RK-55 VL pottery wheel in use

Quiet and Stable Motor Performance

The RK-55 provides a balanced and controlled wheel-throwing experience with its quiet and smooth-running motor. The wide 0–250 rpm speed range can be precisely controlled according to different centering and shaping stages.

The belt drive system and automatic tensioning mechanism help transfer motor movement smoothly to the wheel head. The wheel head can rotate clockwise and counterclockwise, accommodating different working preferences.

Technical Design of the RK-55 Pottery Wheel

The RK-55 combines foot pedal speed control, a 30 cm cast alloy wheel head, bidirectional operation, and a compact body design.

Foot Pedal Speed Control

The wheel head speed can be controlled between 0–250 rpm using the remote foot pedal with a 1,8-meter cable.

12 kg Centering Capacity

Its ability to center up to 12 kg of clay makes it suitable for hobby, educational, and regular studio work.

30 cm Cast Alloy Wheel Head

The 30 cm diameter cast alloy wheel head provides a spacious working surface for centering and shaping various ceramic forms.

Bidirectional Operation

The wheel head can be switched to rotate clockwise or counterclockwise.

Nidec Shimpo RK-55 VL pottery wheel in use in a studio

What Is the RK-55 Pottery Wheel Suitable For?

Beginners

Its user-friendly control system and balanced operation make it suitable for learning basic centering and shaping techniques.

Education and Course Centers

It provides a practical and controlled workspace for regular use in ceramic courses, art centers, and educational institutions.

Ceramic Studios

With its 12 kg centering capacity, compact design, and spacious worktable, it can be used in individual and professional ceramic studios.

Technical Specifications and Model Comparison

The Nidec Shimpo RK-55 is designed for educational, hobby, and studio use with its 12 kg centering capacity, 0–250 rpm wheel head speed, 100 W motor power, and foot pedal-controlled operation. You can compare its key technical specifications with the RK-5T and Whisper T models.

Specifications
Nidec Shimpo RK-5T Pottery Wheel RK-5TF
Nidec Shimpo RK-55 VL Pottery Wheel RK 55
Nidec Shimpo Whisper T Pottery Wheel Whisper T
Centering Capacity
10 kg
12 kg
40 kg
Wheel Head Speed
0–230 rpm
0–250 rpm
0–250 rpm
Motor Power
1/4 hp – 100 W
1/4 hp – 100 W
1/3 hp – 300 W
Speed Control
Foot Pedal
Foot Pedal
Foot Pedal
Wheel Head Direction
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Drive System
Belt Drive
Belt Drive
Direct Drive
Brushless DC Motor
Wheel Head
178 mm pinned alloy
+ 250 mm plastic wheel head
300 mm
Aluminum
300 mm
Aluminum
Dimensions
56 × 45 × 34 cm
78 × 63 × 58 cm
62 × 62 × 44–58 cm
Weight
13 kg
23 kg
45 kg
Power Input
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
Distributor Warranty
NIDEC-SHIMPO
Brand
NIDEC - SHIMPO
Model
55 VL
Type
Pedestal
Power Type
220 V (Single-Phase)
Tray Speed
0 - 250 rpm Speed Control
Tray Diameter
30 cm
Tray Material
Aluminium
Clay Carrying Capacity
12 Kg.
Rotation Direction
Each Two Direction
Noise Level
55 db
Weight
23 Kg.
Packaged Weight
38 Kg.
Outer Dimensions (WxDxH)
63x78x58cm
Foot Pedal
Available
Pedestals
Fixed
Foot Pedal Portability
Portable with Cable
CE Certification
Certified
Warranty
2 Years
