Nidec Shimpo RK-3E Pottery Wheel
Nidec Shimpo

Nidec Shimpo RK-3E Pottery Wheel

45 kg centering capacity, powerful brushless DC motor, and high performance for professional use

Powerful Design for Professional Use

Nidec Shimpo RK-3E Pottery Wheel is a powerful pottery wheel designed for intensive ceramic production and professional studio use, featuring a 45 kg centering capacity, 400 W motor power, and 0–250 rpm wheel head speed.

Brushless DC motor technology provides quiet, vibration-free, and stable operation, while the electronic control system helps maintain controlled wheel head speed under different load conditions.

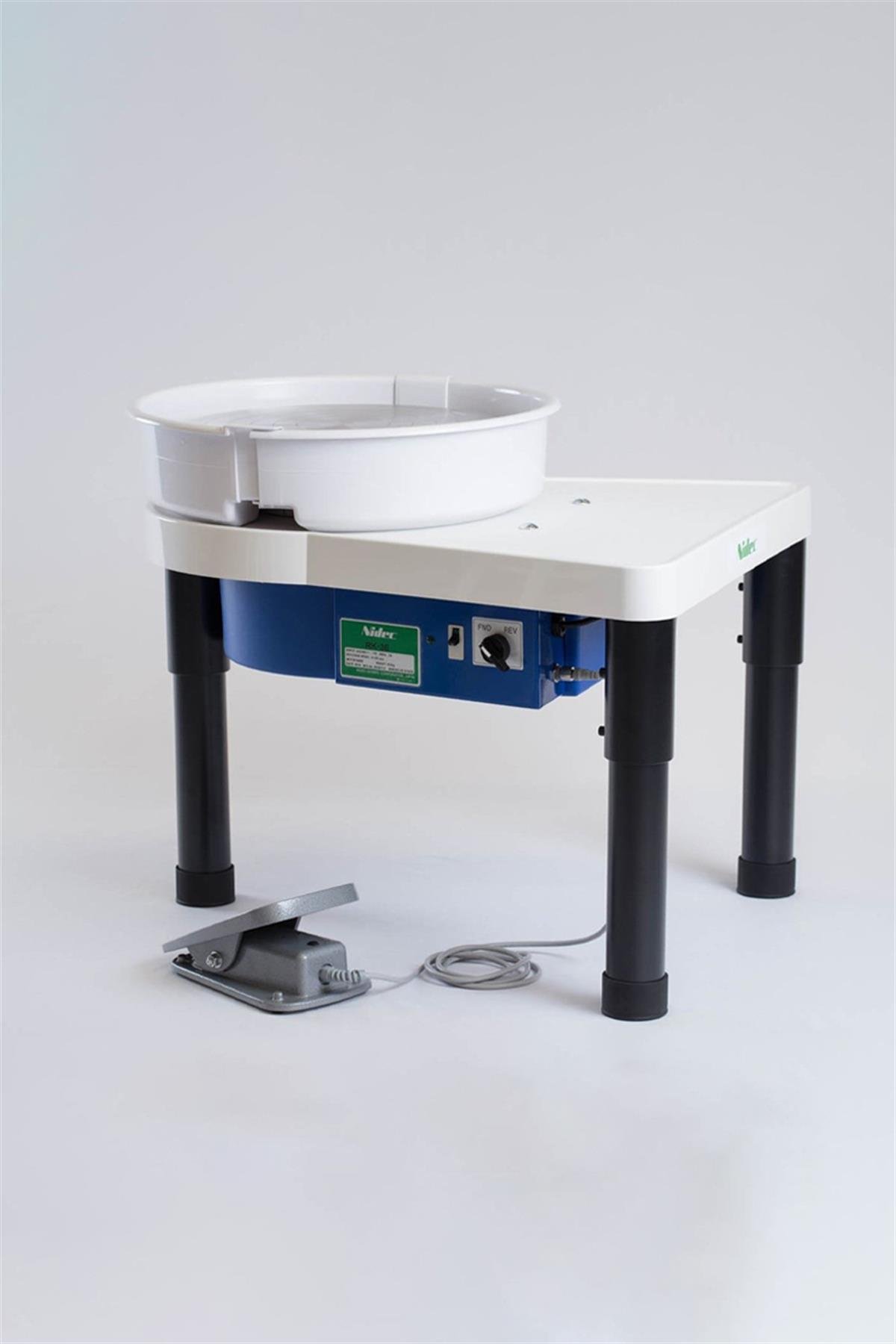

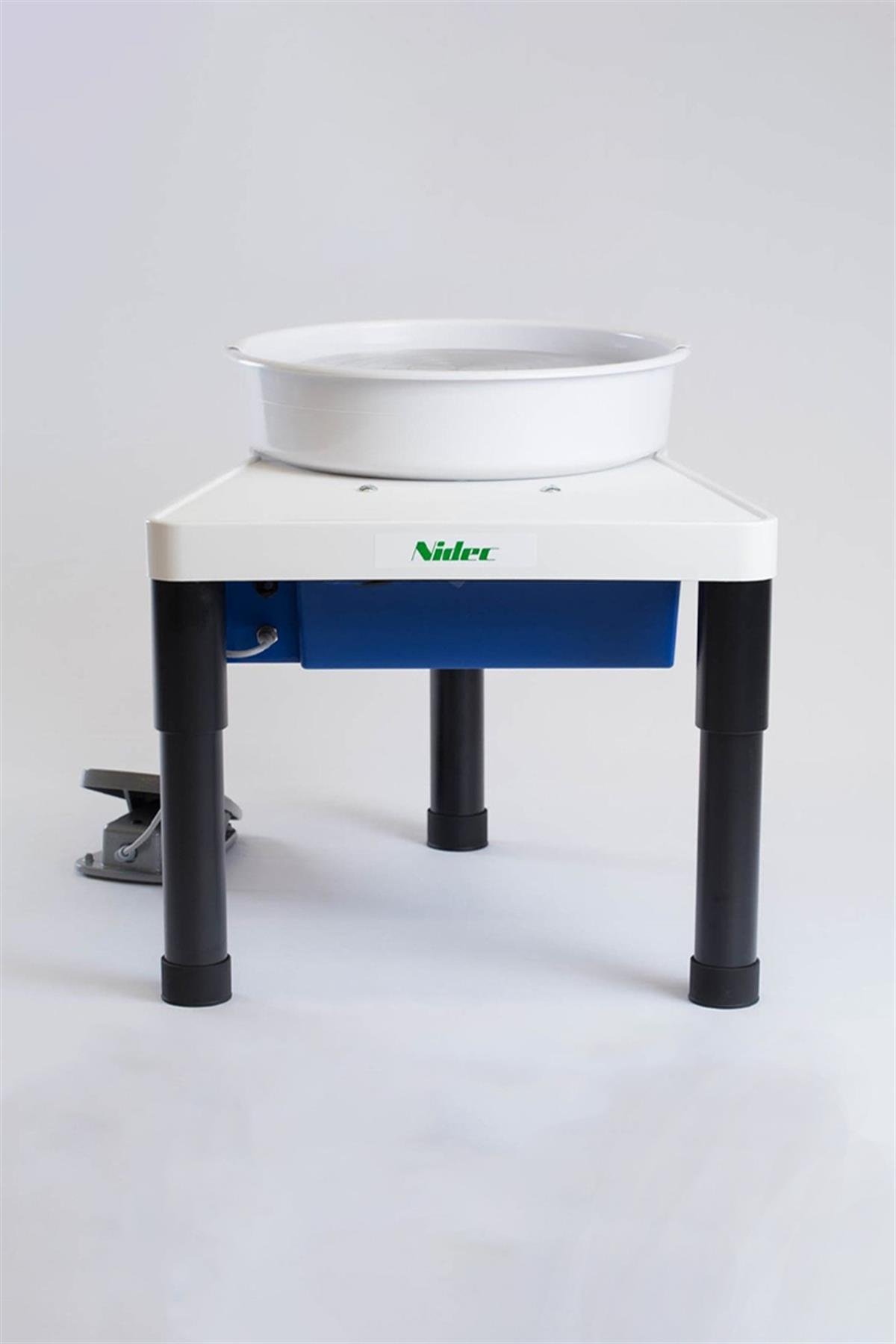

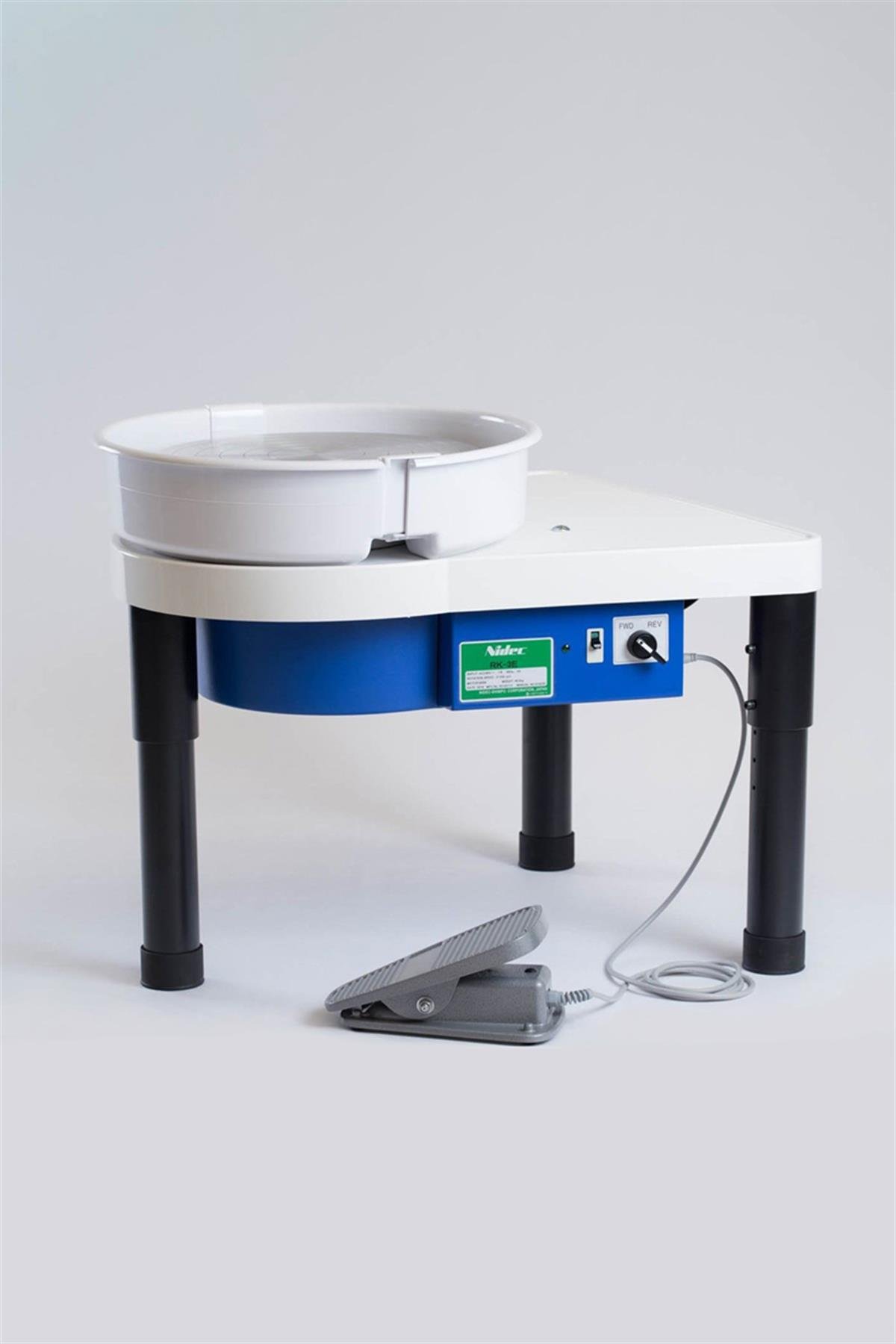

Nidec Shimpo RK-3E professional pottery wheel

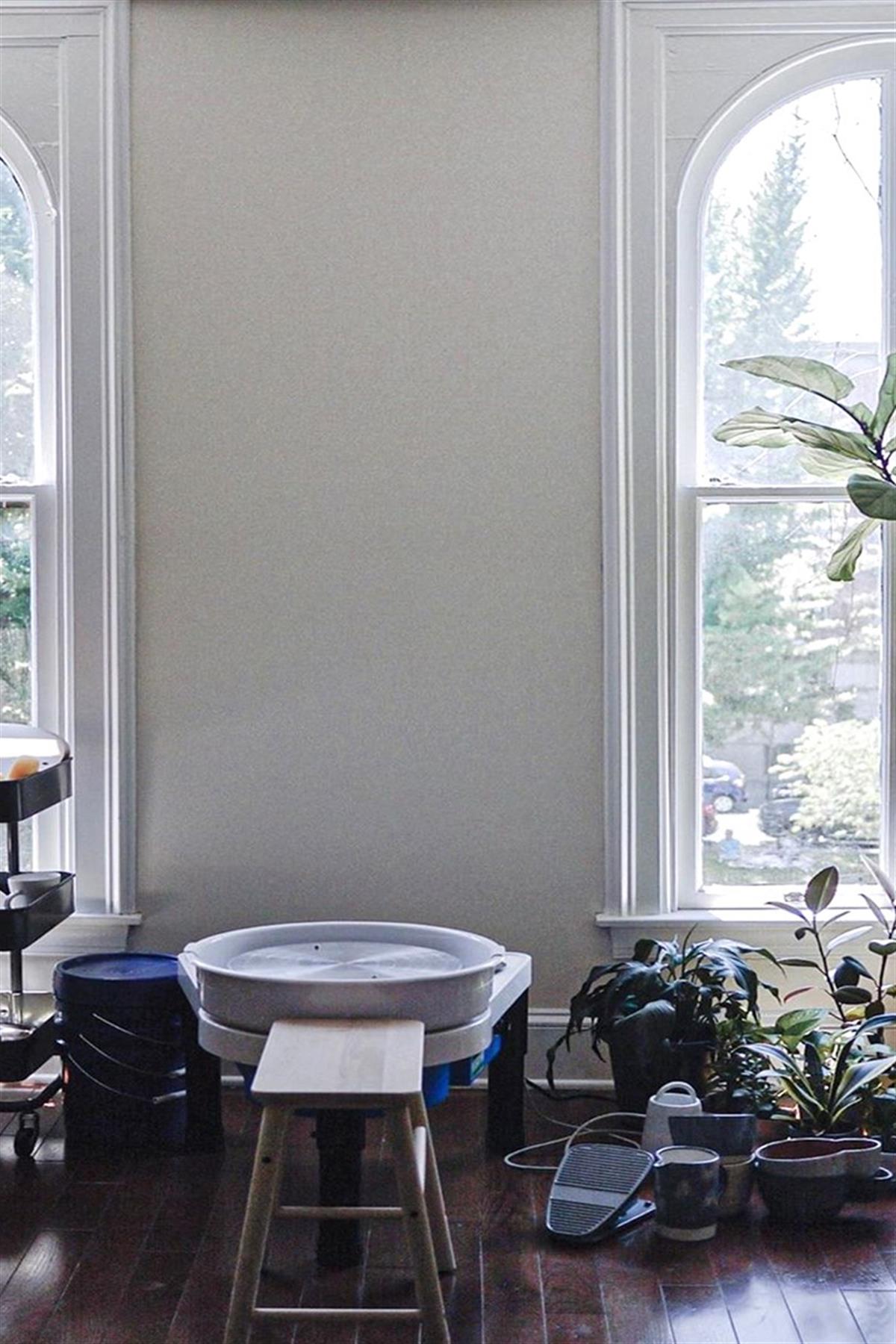

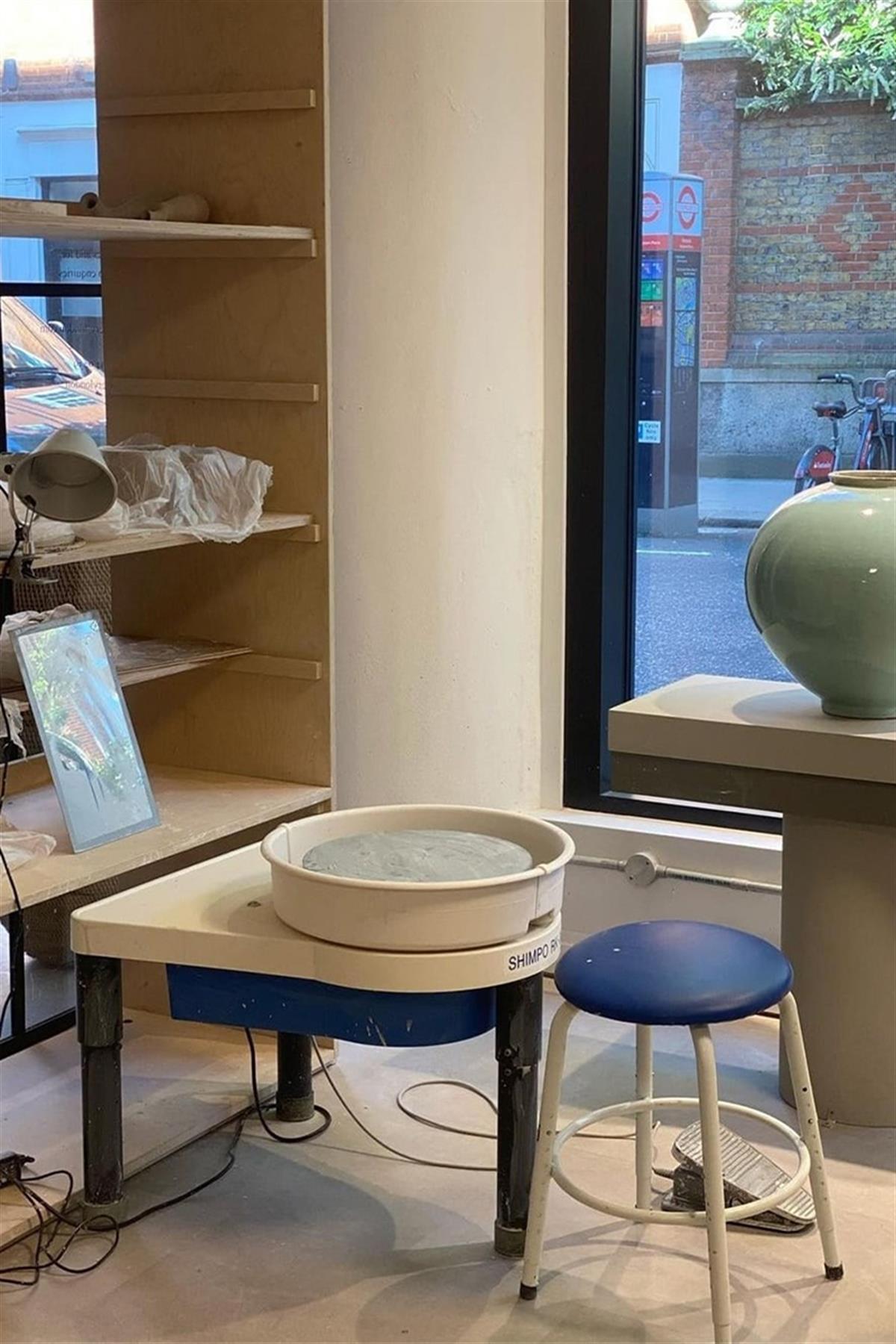

Nidec Shimpo RK-3E pottery wheel in use

Quiet, Powerful and Stable Motor Technology

The RK-3E's brushless DC motor system delivers powerful performance for clay work requiring high torque while providing quiet and vibration-free operation. The electronic speed control system helps maintain stable rotation speed under different load conditions.

The wide 0–250 rpm speed range provides precise control during centering, pulling, widening, and various shaping stages. With a maximum operating noise level of ≤30 dB, it creates a more comfortable environment for extended studio sessions.

Technical Design of the RK-3E Pottery Wheel

The RK-3E combines a high-capacity motor system, electronic speed control, bidirectional operation, and a durable body design suitable for professional working conditions.

45 kg Centering Capacity

Its high clay capacity provides a powerful workspace for large forms and intensive professional production.

400 W Brushless DC Motor

The powerful motor provides balanced performance for work requiring high torque while helping reduce maintenance requirements.

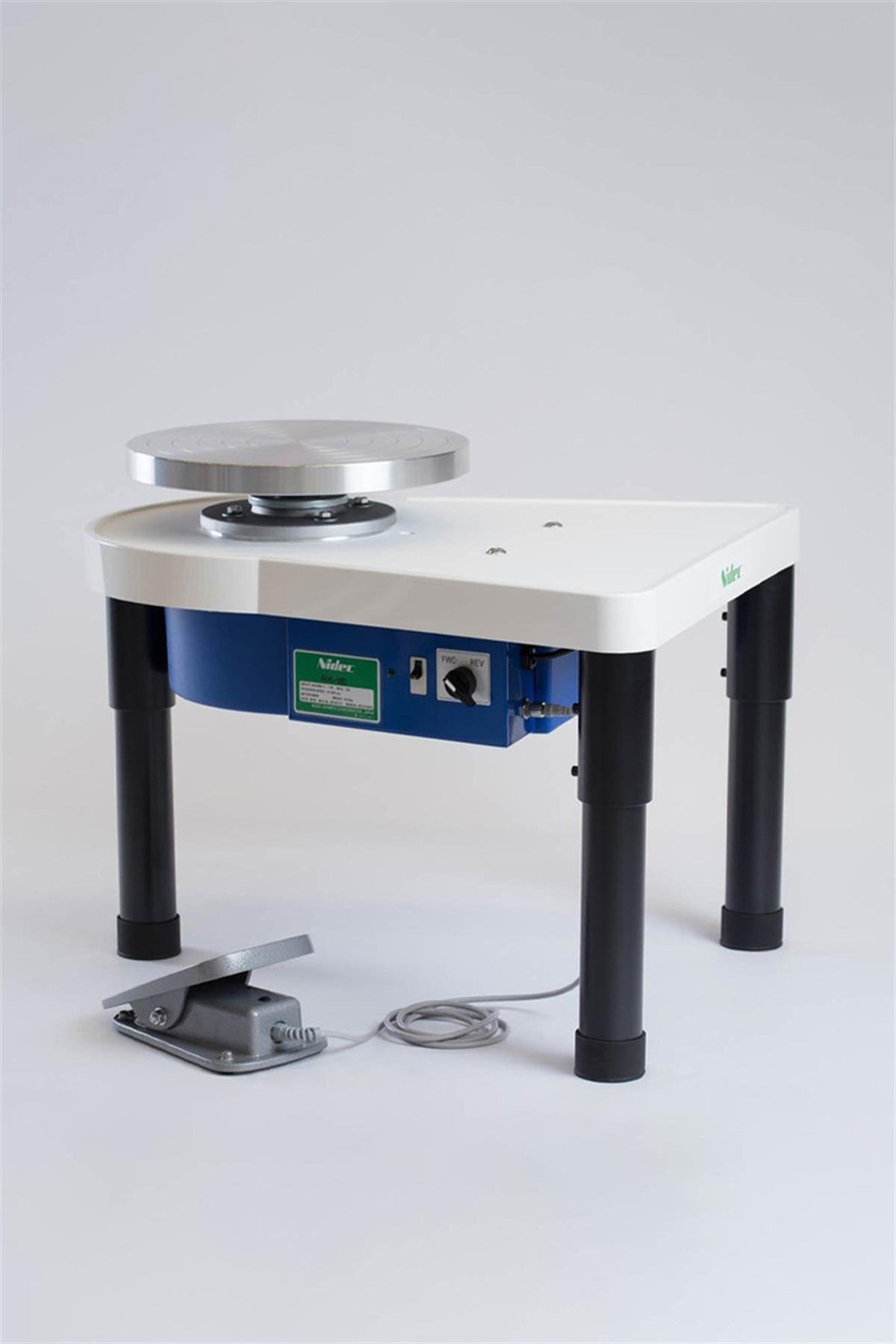

35 cm Aluminum Wheel Head

The large wheel head surface is suitable for centering and shaping large and heavy ceramic forms in a controlled manner.

Bidirectional Operation

The wheel head can rotate clockwise or counterclockwise. This feature accommodates different working preferences and both right- and left-handed use.

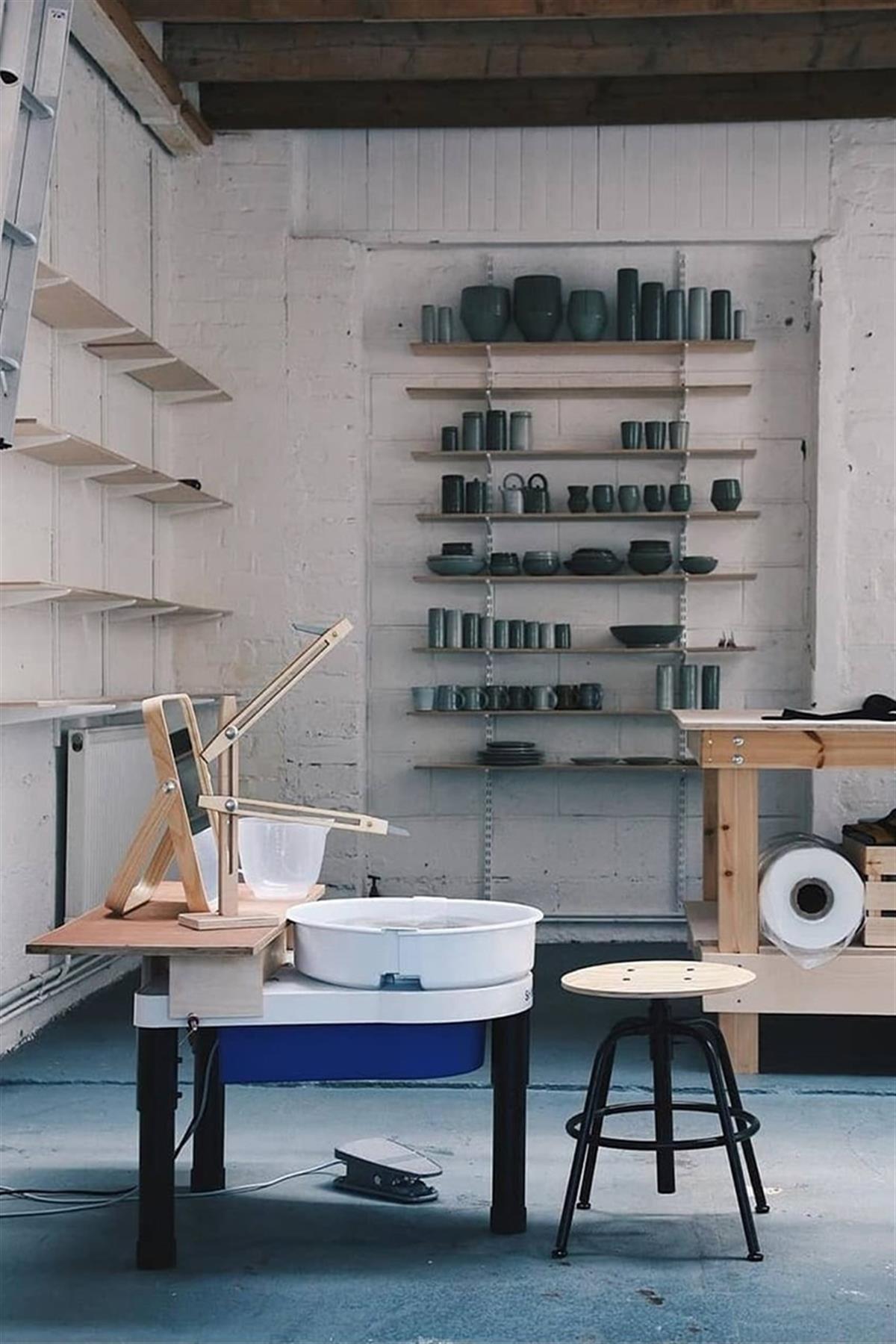

Nidec Shimpo RK-3E pottery wheel in use in a professional studio

What Is the RK-3E Pottery Wheel Suitable For?

Professional Ceramic Studios

With its 45 kg centering capacity and powerful motor, it is suitable for professional studios engaged in regular and intensive ceramic production.

Educational Institutions and Courses

Thanks to its quiet and stable operating characteristics, it can be used in universities, ceramic education centers, and professional course environments.

Large-Form Work

With its 35 cm wheel head and high centering capacity, it is suitable for working on large bowls, vases, and similar ceramic forms.

Technical Specifications and Model Comparison

The Nidec Shimpo RK-3E is designed for professional production with its 45 kg centering capacity, 400 W motor power, 0–250 rpm wheel head speed, and 35 cm aluminum wheel head. You can compare its key technical specifications with the Whisper T and RK 3D models.

Specifications
Nidec Shimpo Whisper T Pottery Wheel Whisper T
Nidec Shimpo RK-3E Pottery Wheel RK 3E
Nidec Shimpo RK-3D Pottery Wheel RK 3D
Centering Capacity
40 kg
45 kg
45 kg
Wheel Head Speed
0–250 rpm
0–250 rpm
0–250 rpm
Motor Power
1/3 hp – 300 W
1/2 hp – 400 W
1/2 hp – 400 W
Noise Level
≤30 dB
≤35 dB
≤38 dB
Speed Control
Foot Pedal
Foot Pedal
Hand Lever and
Fixed Foot Pedal
Rotation Direction
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Clockwise / Counterclockwise
Drive System
Direct Drive
Brushless DC Motor
Direct Drive
Brushless DC Motor
Direct Drive
Brushless DC Motor
Wheel Head
30 cm
Aluminum
35 cm
Aluminum
30 cm
Aluminum
Dimensions
62 × 62 × 44–58 cm
78 × 68 × 41–58 cm
52,5 × 58,2 × 51,5 cm
Weight
45 kg
54 kg
52 kg
Power Input
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
AC 230/240 V
50/60 Hz
Distributor Warranty
NIDEC-SHIMPO
Brand
NIDEC - SHIMPO
Model
RK 3E
Type
Pedestal
Motor Power
400 W. AC 230V 50Hz
Power Type
220 V (Single-Phase)
Tray Speed
0 - 250 rpm Speed Control
Tray Diameter
35 cm
Tray Material
Aluminium
Clay Carrying Capacity
45 Kg
Rotation Direction
Each Two Direction
Noise Level
≤35 dB
Weight
54 Kg.
Packaged Weight
61 Kg.
Outer Dimensions (WxDxH)
78x68x41cm
Foot Pedal
Available
Pedestals
Detachable
Foot Pedal Portability
Portable with Cable
CE Certification
Certified
Warranty
2 Years
