Illuminated Drawing Table (R5971)

0.00
Brand : REFSAN
Price : 295,00€
Barkod : 8681910610507

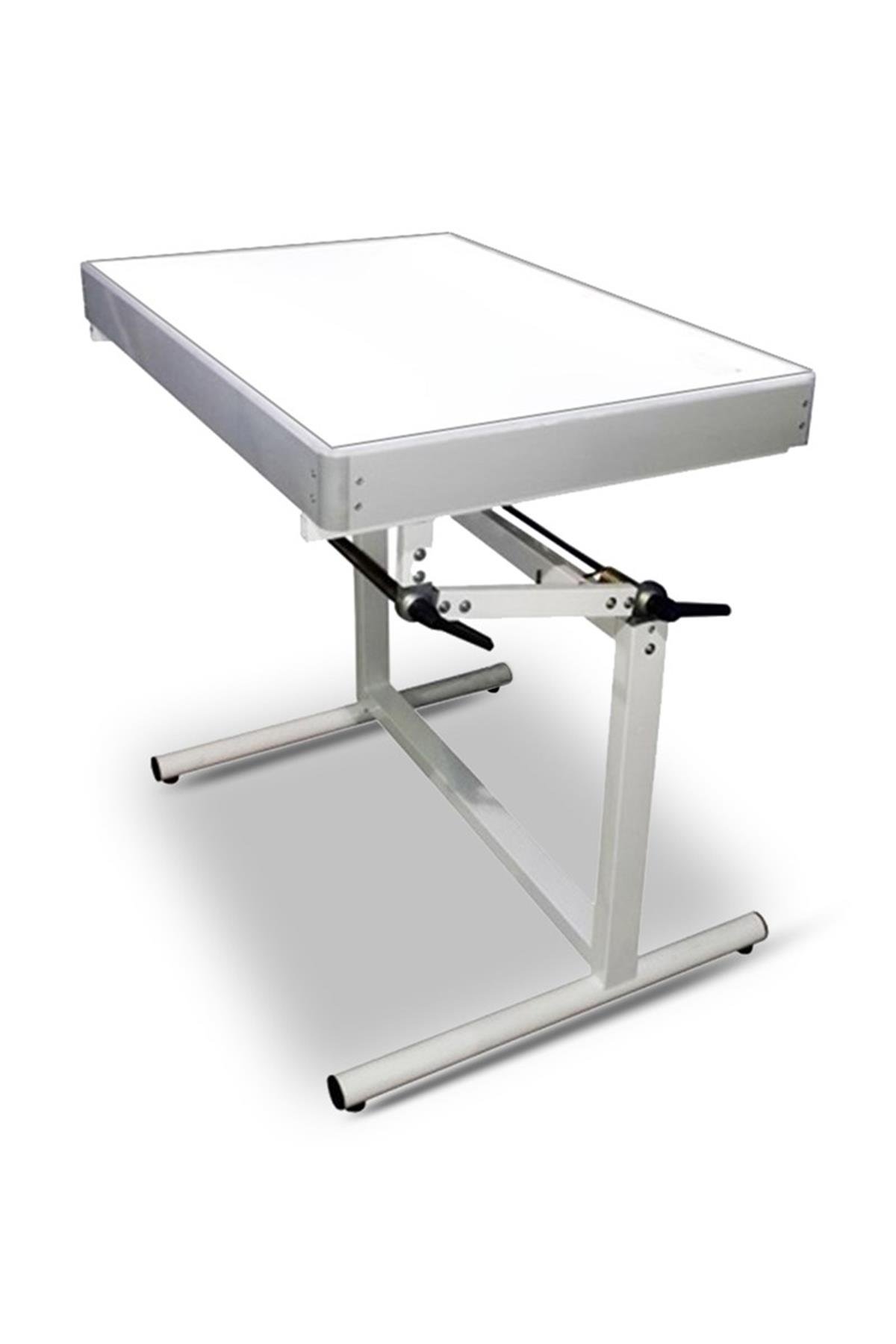

Illuminated Drawing Table


There are 2 models.
70x100 cm
80x120 cm


Mechanism + Foot Features:
It is a model produced for professional drafters.
With two clamping arms, both horizontal and height adjustments can be made easily.

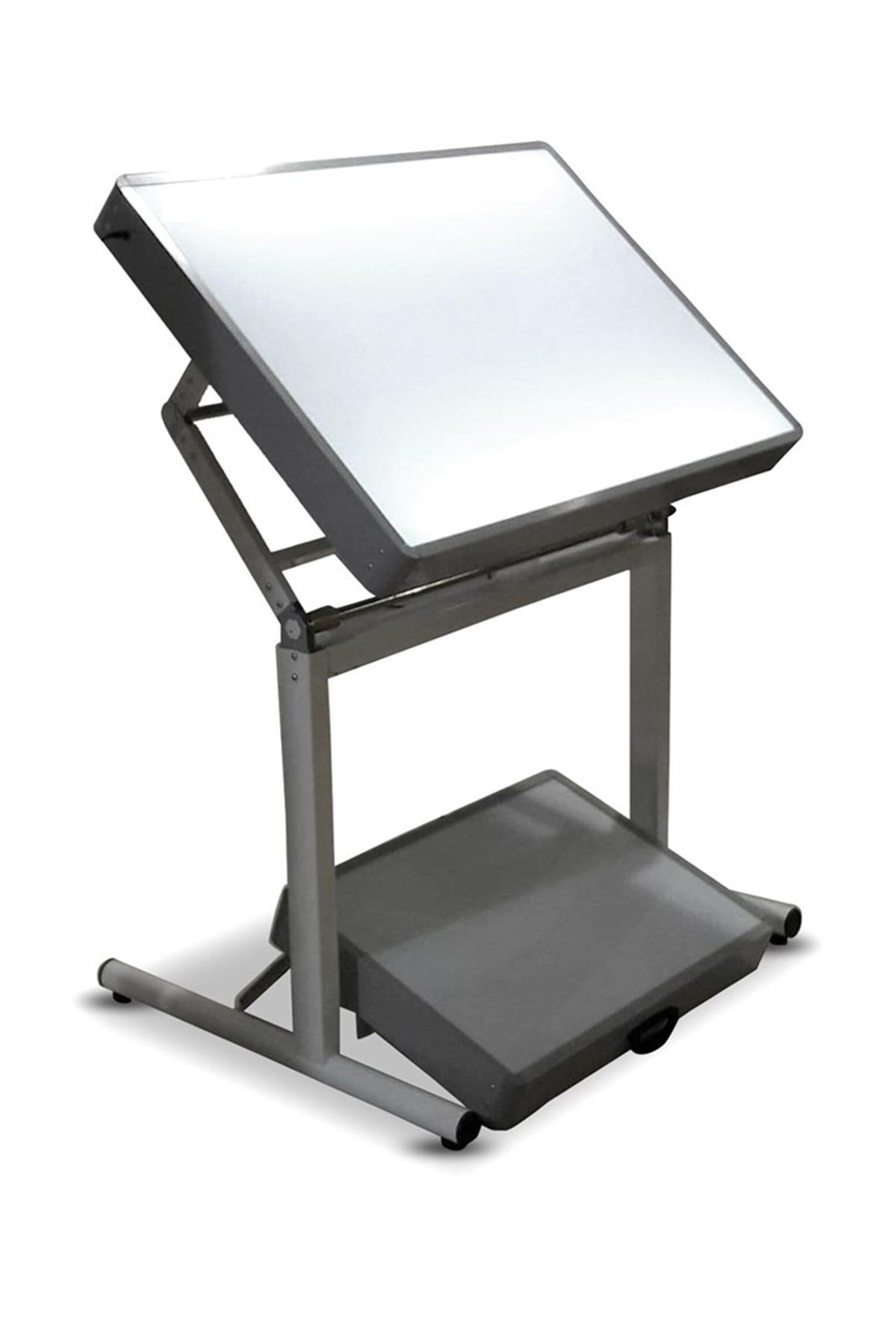

The table has 180° horizontal adjustable angle (upper arm).
Height adjustment is suitable for 40 cm up and down positioning (lower arm).
Mechanism structure is suitable for all kinds of table mounting.
You can use the mechanism by mounting tables of other sizes or features other than the table that comes with the product.
The size of the mechanism is standard, only the size of the trays varies.
With the height adjustment screws on the legs, height differences on the floor are eliminated.


Table Features:
The smooth surface and PVC framed table allows you to make millimeter drawings.
The drawing table mechanism and table top are shipped disassembled in two separate packages.
There are no screw holes in the table. The table is mounted to the drawing table mechanism with the screws sent with the product.
The installation is extremely simple and all you need is a screwdriver or rechargeable screwdriver.




Installation - Assembly :
The product is shipped in two separate packages as Table and Mechanism.
The two legs coming out of the mechanism box are mounted to the mechanism with the help of the key sent in the product box.
The table is placed on the floor (it can be on any side, it does not matter) and positioned symmetrically to the mechanism holders where the table will be mounted.
With the help of a screwdriver or rechargeable screwdriver, the table is tightened to the mechanism holders (with the screws sent with the product).
