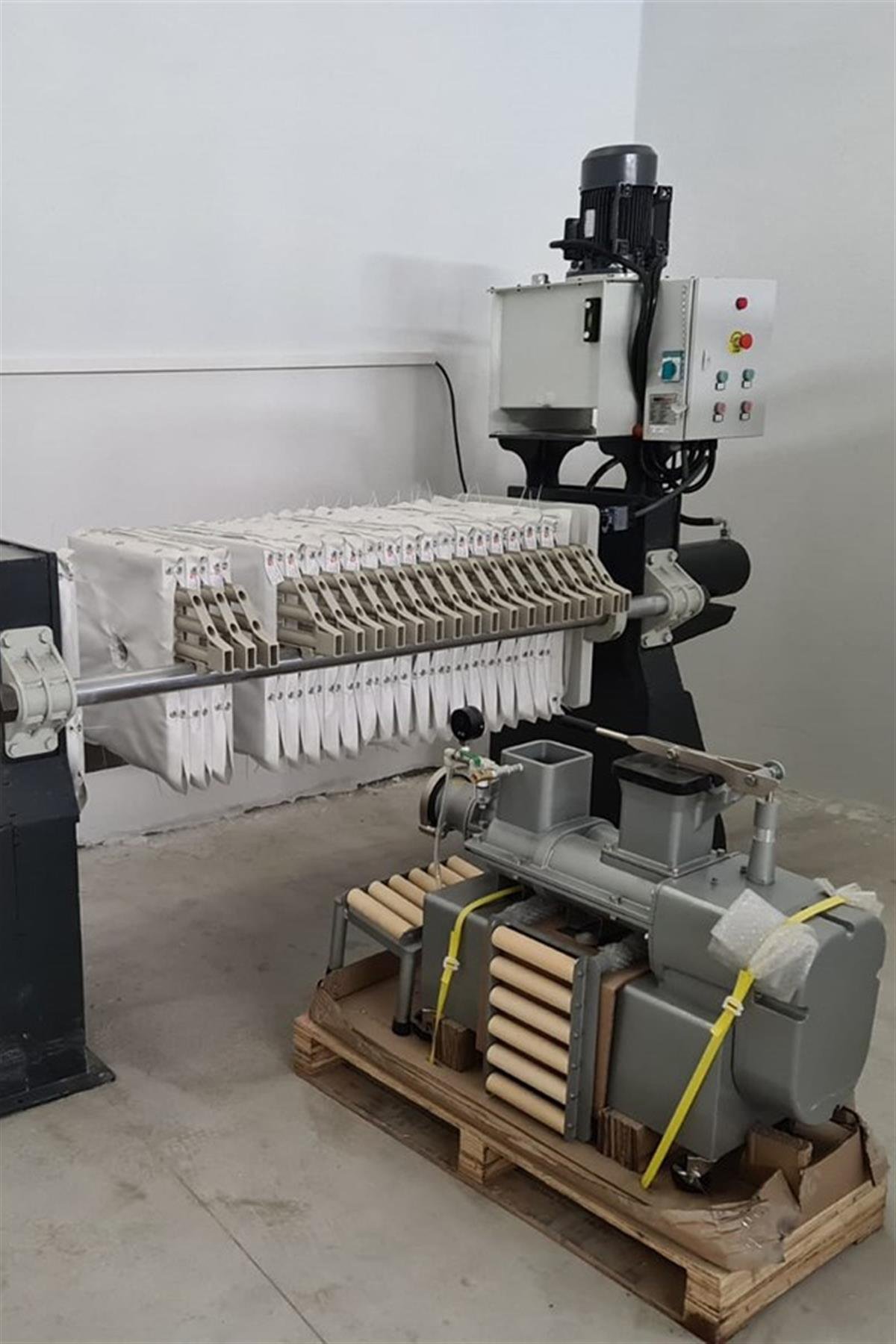

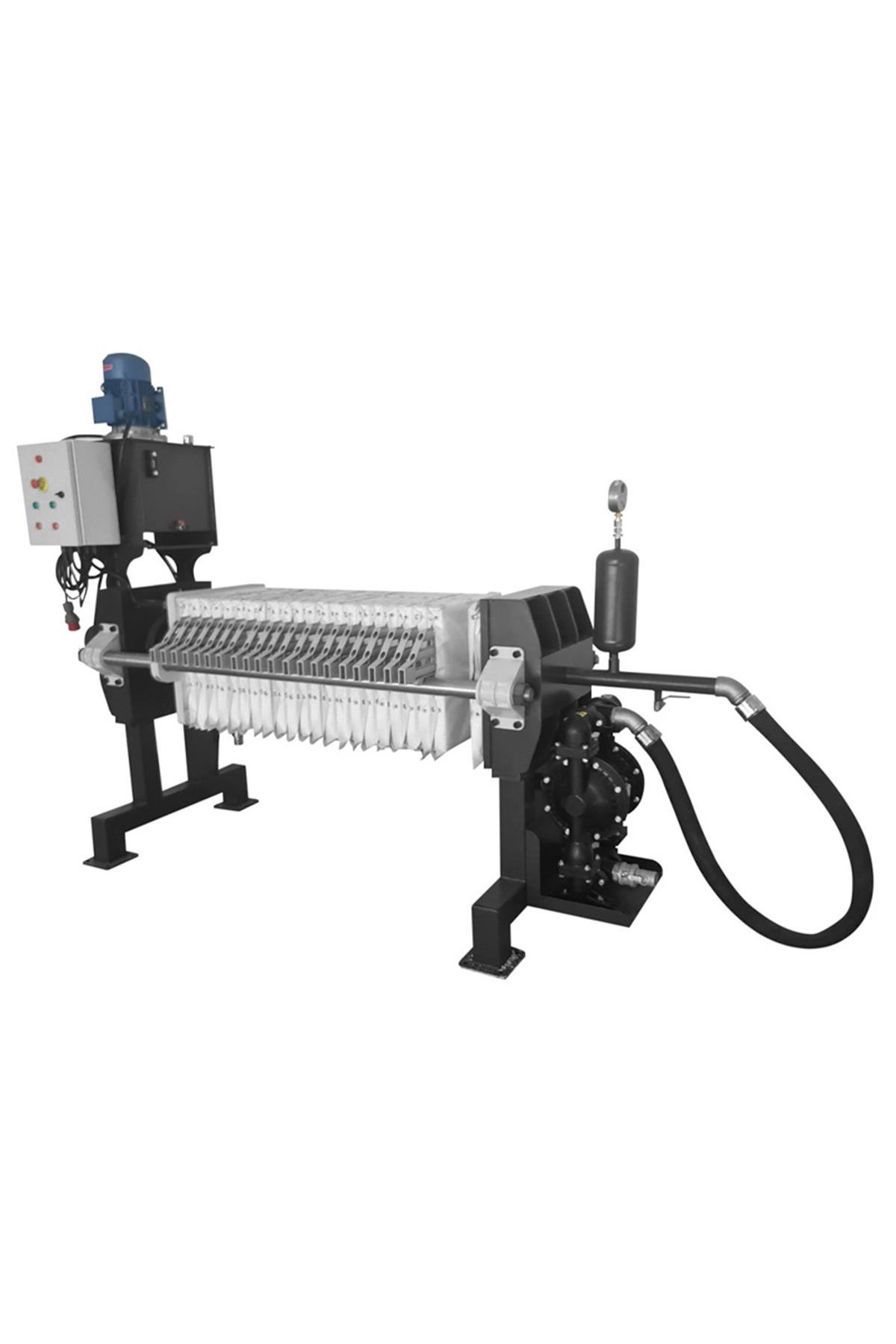

Filter Press 50X50 Cm 10 Plate 9100 (R20938)


Plate dimensions : 500x500 mm
Plate type: Chamber type

Plate material : 1st quality raw material. Polypropylene. Absolutely no Recycling Material is used.
Motor Power: 3 KW.
Electric Panel is on it. Pressure adjustment is done automatically from here.
Number of plates: 20 pieces
The entire chassis is made of 10 mm. sheet metal.

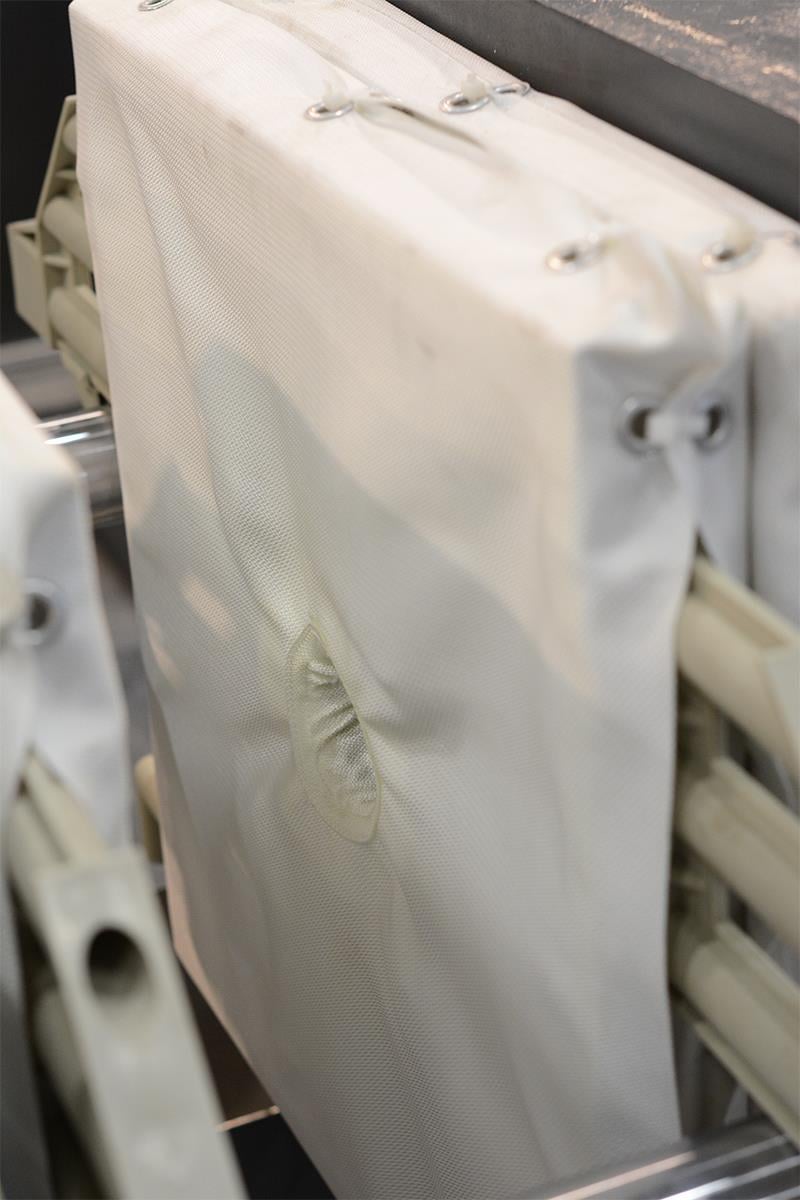

Filter cloth : Special for ceramic clay (PP)
Charging Time : 75 min. for Porcelain Clay / 105 minutes for Ceramic Clay.

NOTE : With 8 Bar air pressure, the sludge is filled in 1 hour. It waits inside for 1.5 - 2 hours. 2.5 - 3 hours can be considered for 1 charge. 3 charges / Shift.

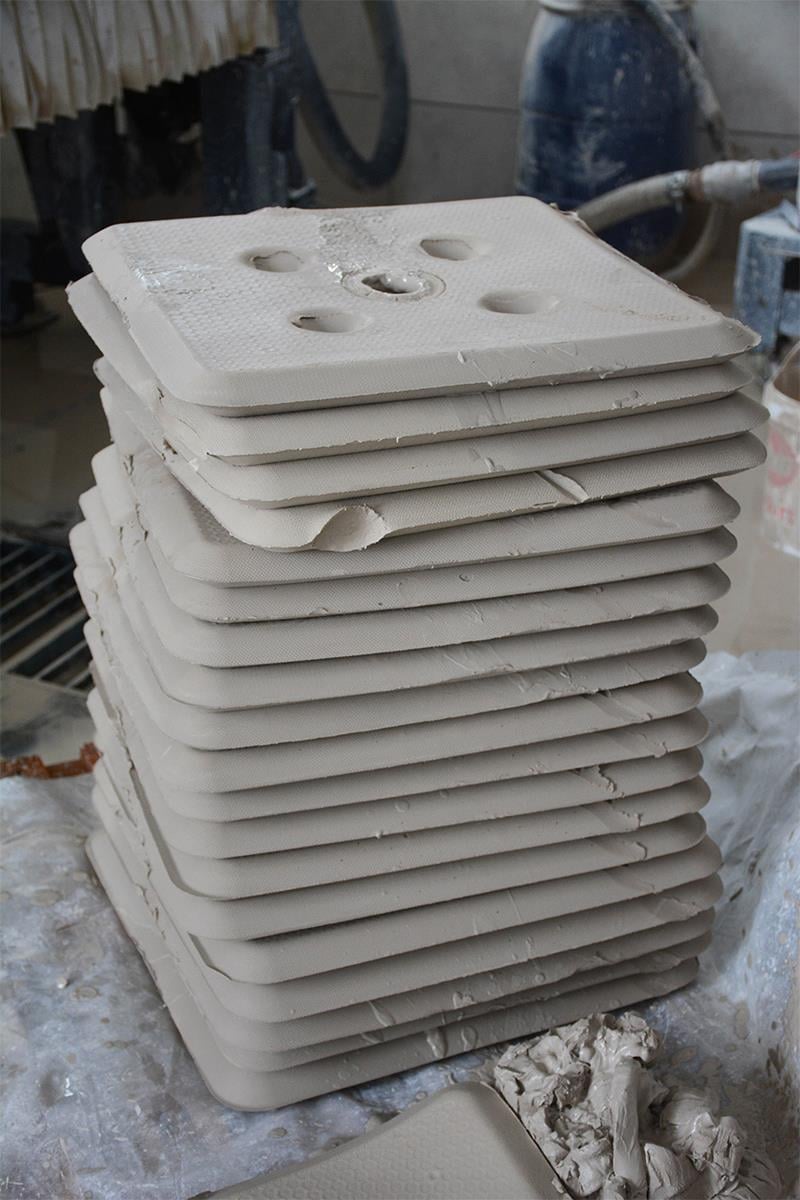

Cake Thickness: 32mm

Capacity = 11 Kg * Number of Plates = 11 Kg.* 20 Plates = 220 Kg./Charge

Note: 2-3 more plates can fit in between upon request.
Discharge Open or closed discharge upon request
Feed: Center feed
(Optionally feeding can be done from the top)

CHASSIS SPECIFICATIONS

Material : St 37 carbon steel 10 mm. supported
The plate surfaces are specially flattened in the milling machine.
Surface protection Paint: Electrostatic Painted
Filtrate outlet : Open discharge
Drainage water channel: St -37 + Electrostatic Painted
Filter arms : St-52 carbon steel + AISI-304 stainless steel coated induction 60 mm shaft
Working pressure : 0-16 bar range
Plate clamping : Hydraulic
License plate spacing : Manual
Hydraulic clamping pressure : Max. 200 bar

CE Certified.

2 Year Warranty against workmanship defects

OPTIONAL

1. Pulley mixer
2. Pump

PUMP FEATURES

Connection Input-Output: 1"
Connection Type: Threaded
Capacity Range: 0 - 160 lt/min
Thrust Distance: 0 - 84 mss
Max. Suction Height: 6 - 8 m
Max. Solid Part Size: 4 mm
Pump Body Materials: Aluminum, Cast Iron, Stainless Steel (316)
Pump Internal Materials: Neoprene, Buna-n, Teflon, Viton, Santoprene, EPDM
Air Line Aluminum (Center Hub, Air Valve, Pilot Valve, Air Inlet Cover, Inner Covers)
Air Connection: 1/2"
Air Working Pressure: 0-8.4 bar
Air Consumption: 10 - 67 m3/h

See Filter Press Cloth, Filter Press Plate, Pump parts which are COMBINED.
