Qty

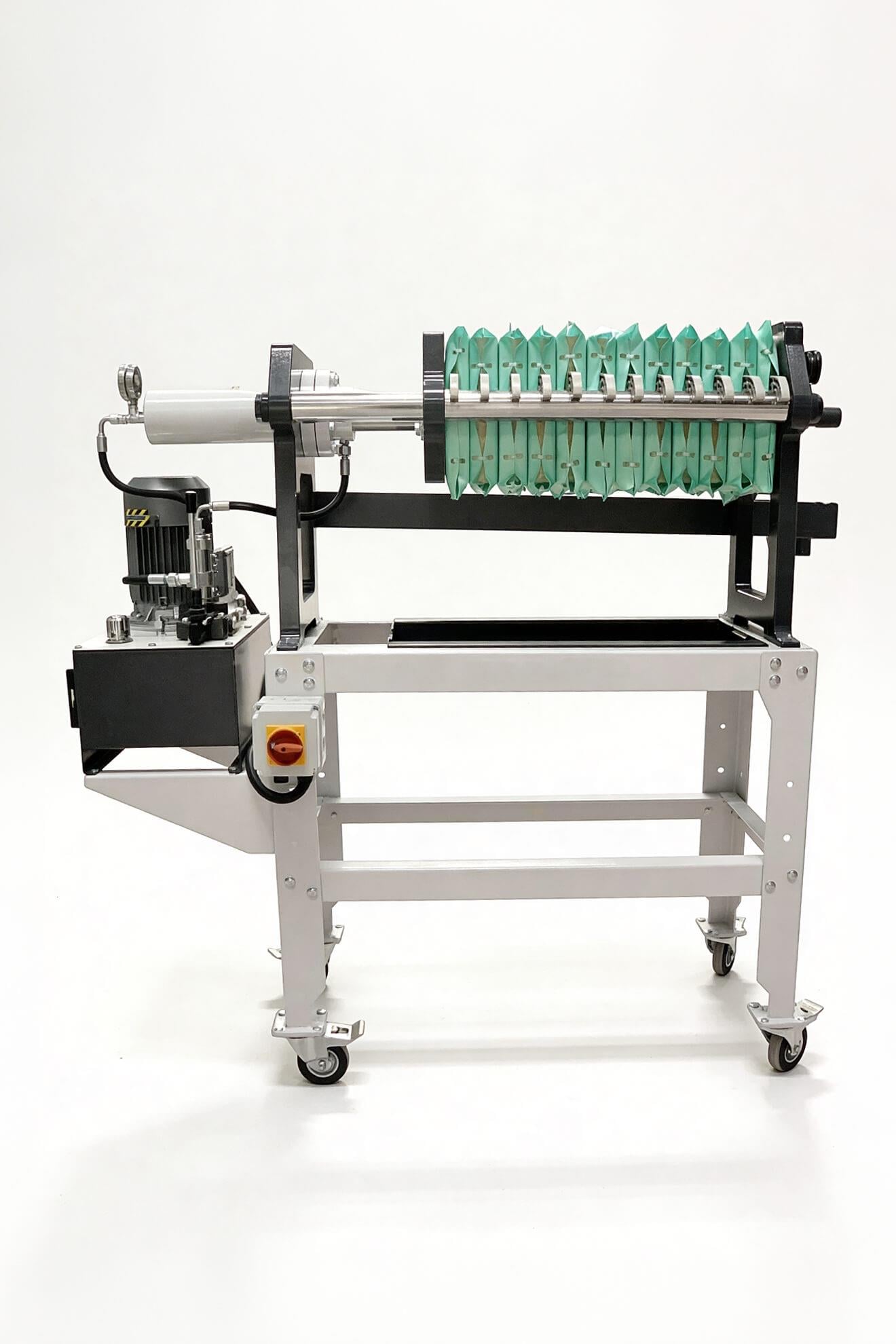

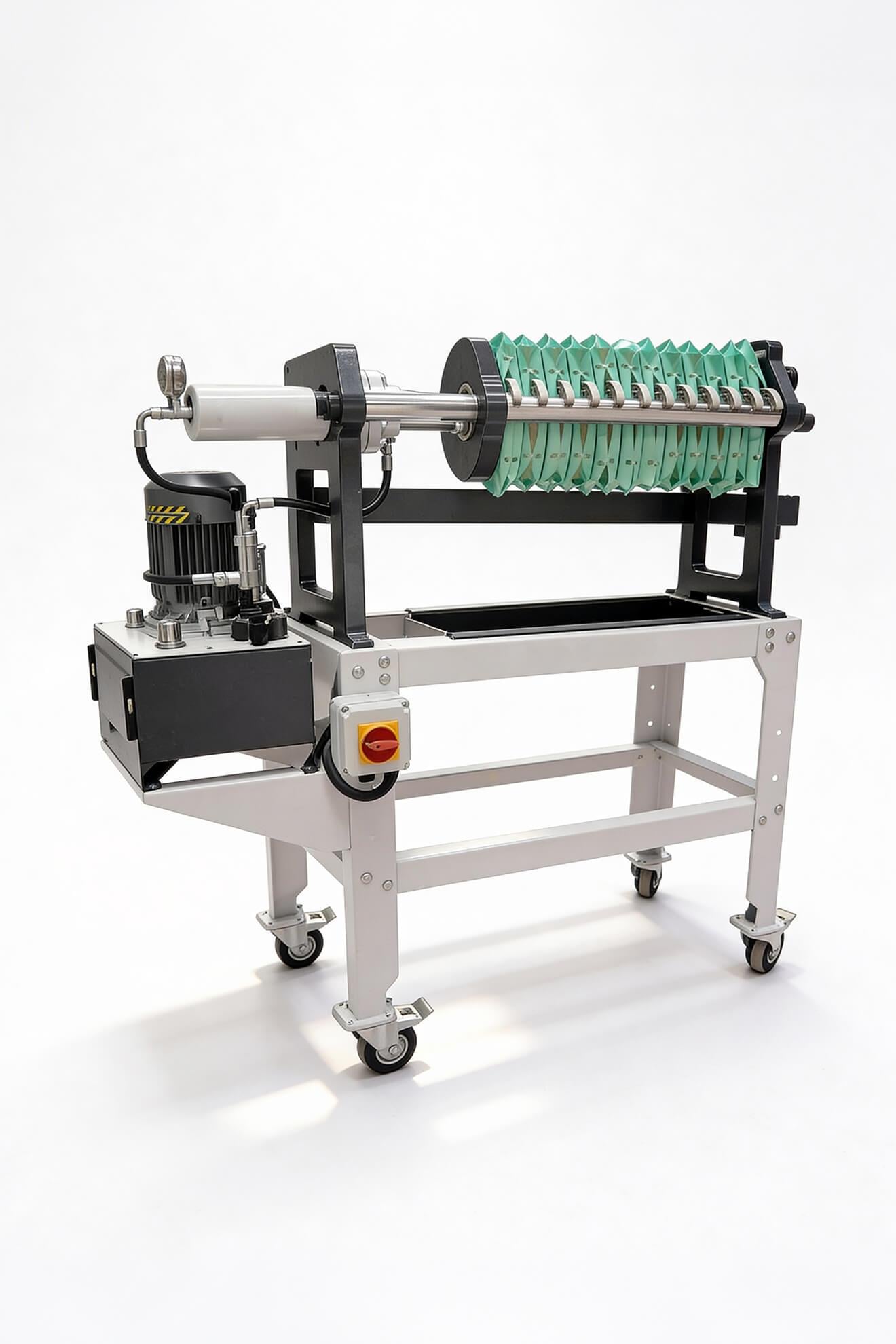

FILTER PRESS
Plate dimensions : 250x250 mm Plate type: Chamber type Plate material : Polypropylene Number and volume of license plates: 12 pieces Filter cloth : Special for ceramic mud (PP) Total Capacity : 15 lt. Sludge Total Capacity : (Cake Weight) 25 Kg. (Density is 1.7 according to Ceramic Clay) Charging Time : Approx. 1 hour
CHASSIS SPECIFICATIONS
Material : St 37 Carbon Steel Head End Thickness: 40 mm. Surface Protection : Electrostatic Painted Filtrate Outlet : Open discharge Drainage water channel: St -37 + Electrostatic Painted Filtrepres arms : Chrome Plated induction Shaft Power : 1.5 KW. Plate clamping : Automatic, Hydraulic License plate spacing : Manual Hydraulic clamping pressure : 100-300 bar
CE Certified.
2 Year Warranty against workmanship defects
OPTIONAL
1. Pulley mixer 2. Pump
PUMP FEATURES
Connection Input-Output: 1" Connection Type: Threaded Capacity Range: 0 - 160 lt/min Thrust Distance: 0 - 84 mss Max. Suction Height: 6 - 8 m Max. Solid Part Size: 4 mm Pump Body Materials: Aluminum, Cast Iron, Stainless Steel (316) Pump Internal Materials: Neoprene, Buna-n, Teflon, Viton, Santoprene, EPDM Air Line Aluminum (Center Hub, Air Valve, Pilot Valve, Air Inlet Cover, Inner Covers) Air Connection: 1/2" Air Working Pressure: 0-8.4 bar Air Consumption: 10 - 67 m3/h
See Filter Press Cloth, Filter Press Plate, Pump parts which are COMBINED.
