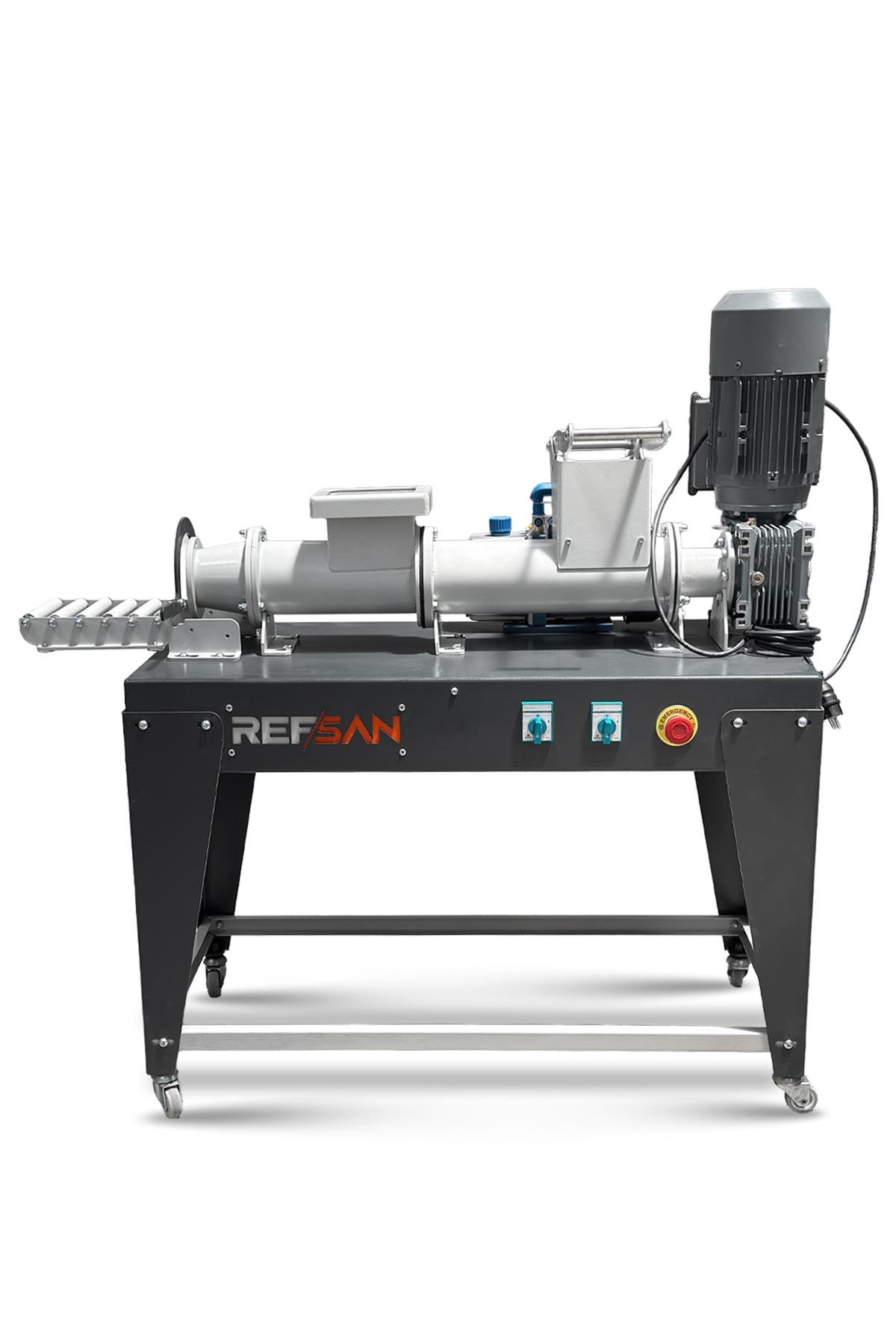

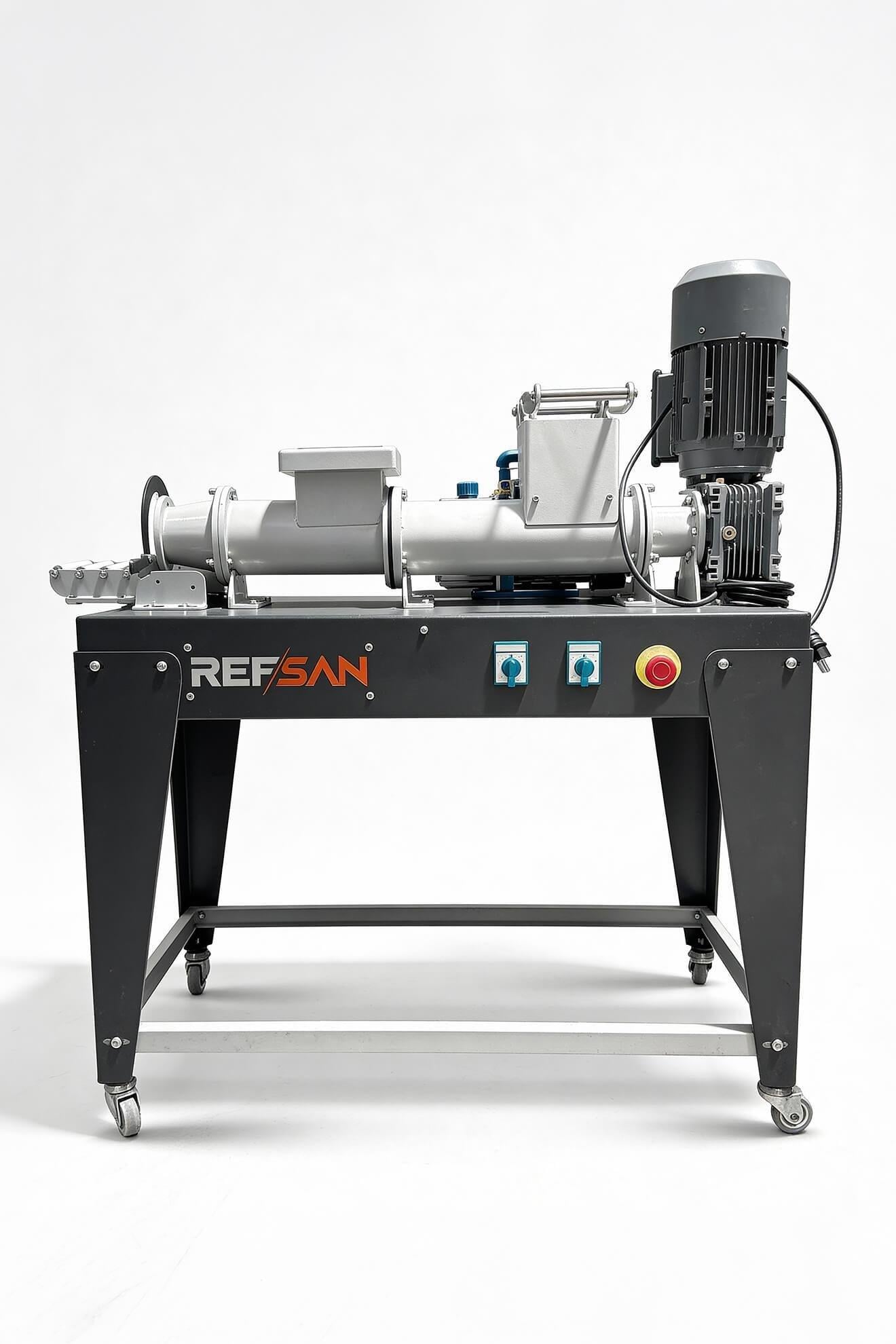

Standing Pugmill (R21633)

0.00
Brand : REFSAN
Price : 2.968,00€
Barkod : 8681910604766
Add to Favorites
Add to Collection
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

ADET

Artır Azalt
Write a comment
Questions and Answers

Standing Pugmill



It is produced in different sizes and capacities.

Product feature table;







MODEL Pug-mill 55mm
without vakuum		 Pug-mill 85 mm
without vakuum		 Pug-mill 100 mm without vakuum Pug-mill 85 mm
with vakuum		 T-type pug-mill 100 mm
 with vakuum		 T-type pug-mill 150 mm
with vakuum
STOCK CODE R6480 R11618 R20800 R20767 R21745 R21809
OUTPUT DIAMETER - Ø L (mm) 55 85 100 85 100 150
BODY DIAMETER - Ø K (mm) 90 115 141 115 168 215
ENGINE POWER - KW 1,1 1,1 1,5 1,5 2,2 4
RPM - RPM (rpm) 22 22 22 22 25-29 25-29
BODY MATERIAL 304 Stainless steel 304 Stainless steel 304 Stainless steel 304 Stainless steel 304 Stainless steel 304 Stainless steel
VOLTAGE 230V 230V 400V 230V 400V 400V
CAPACITY KG/HOUR 150 250 400 250 1600 3000
TOTAL WIDTH - A (cm) 55 55 55 55 146 170
WIDTH - B (cm) 50 50 50 50 133 150
LENGTH - C (cm) 82 91 100 102 127 149
CLAY EXIT ROLLERS D (cm) 20 20 20 20 34 45
TABLE TOP HEIGHT - H1 (cm) 41 43 43 43 66 76
TABLE HEIGHT - H2 (cm) 70 70 70 70 75 75
Total Height  - HT (cm)(DESKTOP) 55 57 57 57 - -
Total Height  - HT (cm)(STANDING) 111 113 113 113 141 151
Pomp ( m3 / hour) - - - 10.2 M3/H 25  M3/H 63 M3/H
