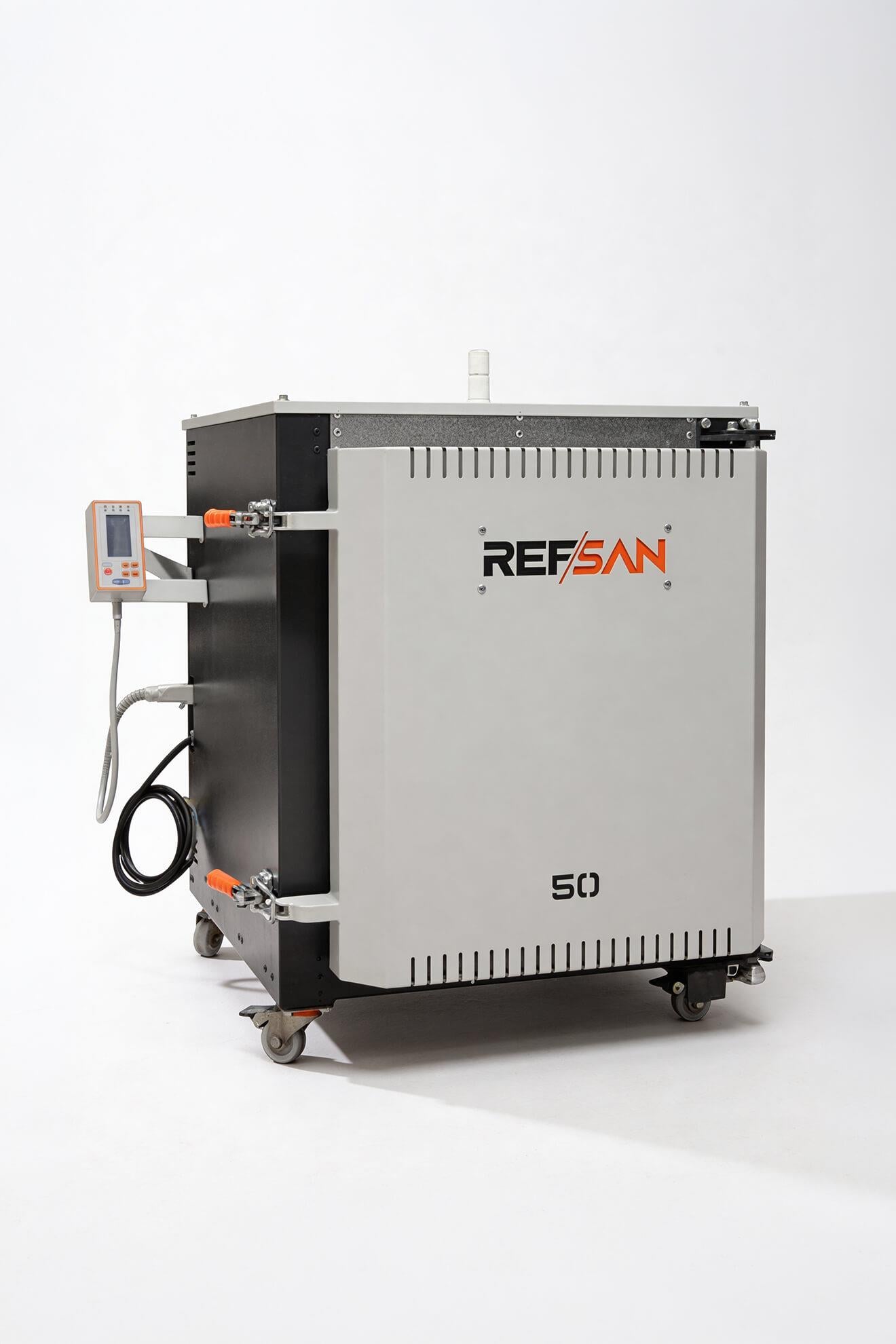

RD50 Annealing - Heat Treatment Furnace

Large-Capacity Heat Treatment Furnace for Metal, Steel, Knives and Technical Materials

RD50 Large Capacity, Controlled Annealing and Heat Treatment Processes

The RD50 Annealing - Heat Treatment Furnace is a large-capacity chamber furnace developed for controlled heating, annealing, hardening and tempering of metal, steel, knives, cutting tools, glass and technical materials. It can be safely preferred by workshops, production facilities, knife makers, metalworking companies and technical application areas.

With 1200°C and 1320°C maximum temperature options, it provides stable, homogeneous and repeatable heat treatment performance in annealing, hardening, tempering and controlled heating applications.

RD50 Annealing - Heat Treatment Furnace
Kanthal A1 Resistance System

Powerful Insulation for Heat Treatment Processes

The high-density alumina bricks resistant up to 1430°C used inside the RD50 help keep heat evenly balanced inside the furnace during annealing and heat treatment processes. Its strong insulation structure improves energy efficiency, while its fiber-free design provides a safer working environment for workshops, production and technical application areas.

RD50 Annealing - Heat Treatment Furnace Technical Structure

RD50 combines its large internal volume with professional control systems to deliver reliable performance in heat treatment processes for metal, steel, knives, cutting tools, glass and technical materials. With controlled temperature management, it provides balanced use in stress relief, hardness control, tempering and annealing applications.

Digital Program Control

With the RF860 programmer, temperature increase, holding time and heat treatment steps are managed in a controlled way.

Precise Temperature Measurement

The thermocouple system monitors the internal furnace temperature and helps achieve repeatable results in annealing, hardening and tempering processes.

Alumina Brick Insulation

The brick structure resistant up to 1430°C keeps heat balanced inside the chamber and provides a reliable heat treatment environment.

Kanthal A1 Resistance

Supports balanced results in metal, steel, knives, glass and technical materials by providing homogeneous heat distribution.

RD50 annealing and heat treatment furnace technical usage image

What Is the RD50 Annealing - Heat Treatment Furnace Ideal For?

Annealing Processes

Helps reduce internal stresses, control brittleness and improve workability in metal, glass and technical materials.

Hardening and Tempering

Provides a controlled heat treatment environment for knives, cutting tools and steel parts to reach the desired hardness, durability and performance in use.

Workshop and Production

Provides large-capacity use for metalworking, knife making, jewelry, automotive supply industry, machine manufacturing and technical production areas.

Monitor Your Furnace Processes from Anywhere

Thanks to SuperWise technology, you can instantly monitor your furnace’s temperature data and annealing - heat treatment process from your mobile device. This gives you greater control over heating, holding, hardening and tempering steps while helping save time.

Real-Time Temperature Monitoring
Heat Treatment Control
Power and Voltage Analysis
End-of-Process Notification
Standard equipment includes the REFSAN RF860 programmer. WiFi-supported TC75, TC95 and TX95 options are optional.
SuperWise Mobile App

Safe and Controlled Annealing - Heat Treatment

A reliable working environment supported by professional safety systems

100% Fiber-Free

100% Fiber-Free

Healthy insulation structure that does not contain fiber-based materials.

Door Switch Safety

Door Safety

Safety support for front-loading operation.

Smart Monitoring System

Smart Monitoring

A system that helps manage the annealing and heat treatment process in a controlled way.

Technical Specifications

RD27, RD50 and RS80 annealing - heat treatment furnaces are used for controlled high-temperature applications in metal, steel, knives, glass and technical materials. The main differences between the models are internal volume, capacity and size options.

Features
RD 27 RD 27
RD 50 RD 50
RS 80 RS 80
Volume
27 L
50 L
80 L
Power Supply
230V
230V
230V - 400V
Insulation Type
European Alumina Brick
European Alumina Brick
European Alumina Brick
Heating Surfaces
2-Sided (Right - Left)
2-Sided (Right - Left)
3-Sided (Right - Left - Bottom)
Control Unit
Digital Programmer
Digital Programmer
Digital Programmer
Internal Dimensions (WxDxH)
30x30x30cm
35x35x40cm
40x40x50cm
External Dimensions (WxDxH)
70x65x80cm
70x80x85cm
80x80x125cm
Power
5.5 kW
6 kW
8 kW
Average Mug Capacity
Approx. 14 pcs
Approx. 30 pcs
Approx. 68 pcs
Weight
Approx. 136 kg
Approx. 165 kg
Approx. 260 kg
WiFi Kilns Industrial Logo

Programmer Options

Features
REFSAN RF860

TC75

TC95

TX95
Display Type Digital, 9-line information display LED 2.8-inch TFT Color 4.1-inch High Resolution
Program / Step Count 5 Programs / 15 Sets 6 Programs / 4 Steps 20 Programs / 20 Steps 100 Programs / 50 Steps
WiFi & Remote Monitoring - Available Available Available
Power and Voltage Monitoring - - - Available (Smart Analysis)
Detailed Furnace Analysis Last 8 reports Available Available Available
The RD50 annealing - heat treatment furnace includes the REFSAN RF860 programmer as standard equipment. TC75, TC95 and TX95 options are optional for WiFi features.
Model
RD50
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
50 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
70x80x85cm
Inner Dimensions (WxDxH)
35x35x40cm
Weight
165 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse (Amps) 1X32
Connected Load kW
6kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Contact Type
SSR
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Heating Sides
2 SIDES (LEFT+RIGHT)
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Door Lock
AVAILABLE
Protection Switch
AVAILABLE
Wheels
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
30*30 cm
