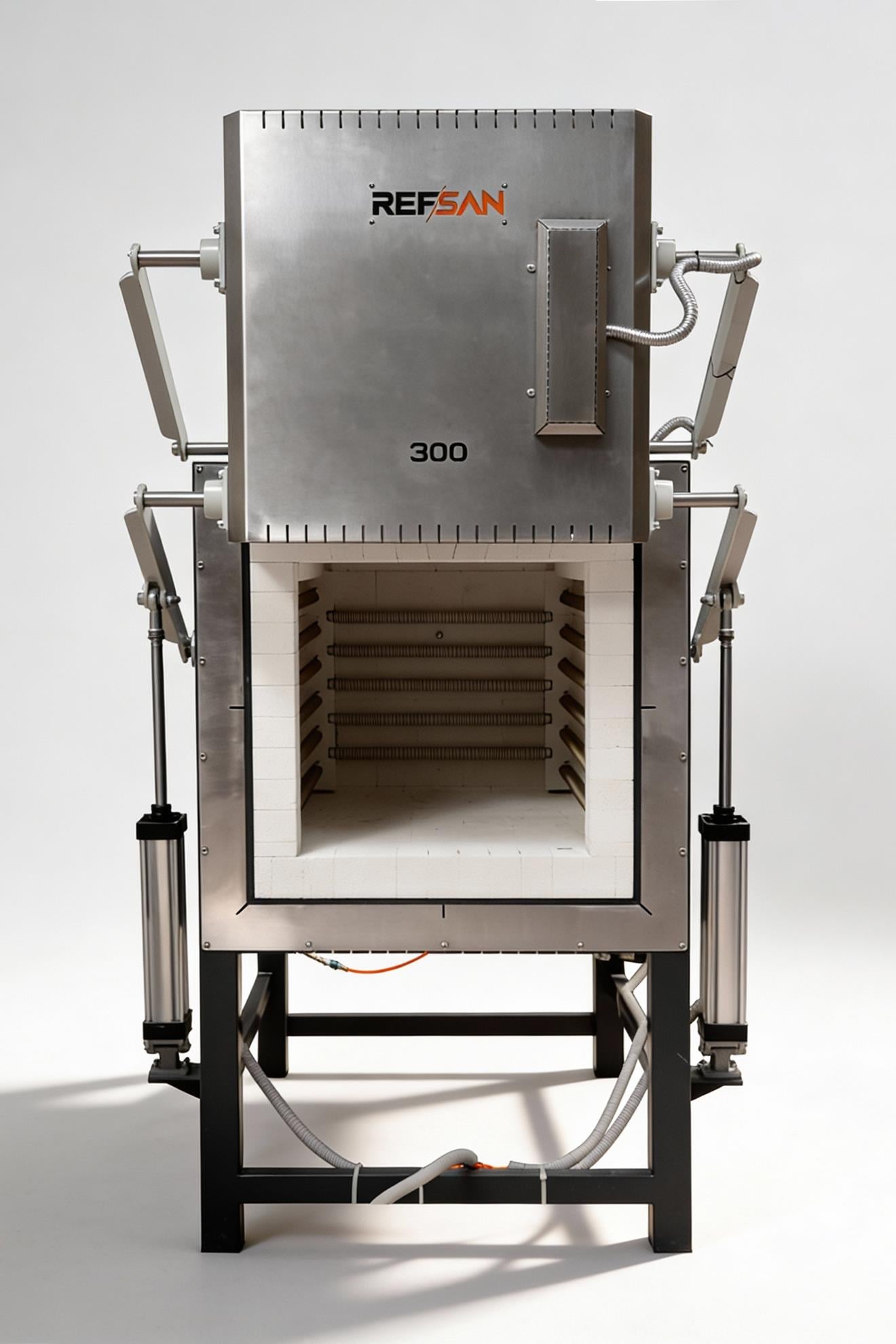

RT300 CUPELLATION KILN
RT300 CUPELLATION KILN
RT300 CUPELLATION KILN

RKP300 Coupling Roasting Furnace



Internal dimensions: d70 x w70 x h60cm - 300dm³.
Power: 17 KW
Max. temperature 1200 C
Insulation content: Furnace interior 1430°C Alumina brick.
Door mouth 1540°C resistant Alumina JM28 Brick.
Paint : Electrostatic powder paint (baked at 200ºC).
Resistance: KANTHAL A1 (1400ºC).
Pneumatic piston with upward opening lid
3 way heating (right, left, rear)
Control RF850 Digital.
5 Program + 15 sets. (15 sets can be entered in each program.



On Digital Display
Date, Time, Program Used and Total Steps
Current Step in Operation, Set Value of the Set Step
Time Set to O set Value, Start/ Stop Status
The current Temperature and the Time Remaining until the End of the Program can be seen at the same time.
Automatically activates itself in case of power cuts.
You can see the temperature of the last 8 burns in a 2-minute time period as a report.
You can see what happened at what time and at what temperature.
Temperature measurement: K Type NiCr-Ni 25-1200ºC.
Furnace cooling system is free cooling.
Kiln is on wheels.
600x600 mm. 1 shelf is placed on the base and arranged towards the top.





Product Dimensions:
140 x 140 x 180 cm

Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
300 LT.
Maximum Temperature
1200°C
Outer Dimensions (WxDxH)
140x140x180 cm
Inner Dimensions (WxDxH)
70x70x60cm
Weight
675 kg
Power
400V
Connected Load kW
17kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Body Material
Stainless Steel (Easy-Cleaning)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Stainless Steel (304 Grade) Galvanized
Heating Type
ELECTRIC RESISTANCES KANTHAL SPECIAL ALLOY
Contact Type
SSR
Ceramic Fiber
N/A
Wheels
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS) DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
Door Opening System
Pneumatic System
Automatically Exhaust Control
AVAILABLE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop
