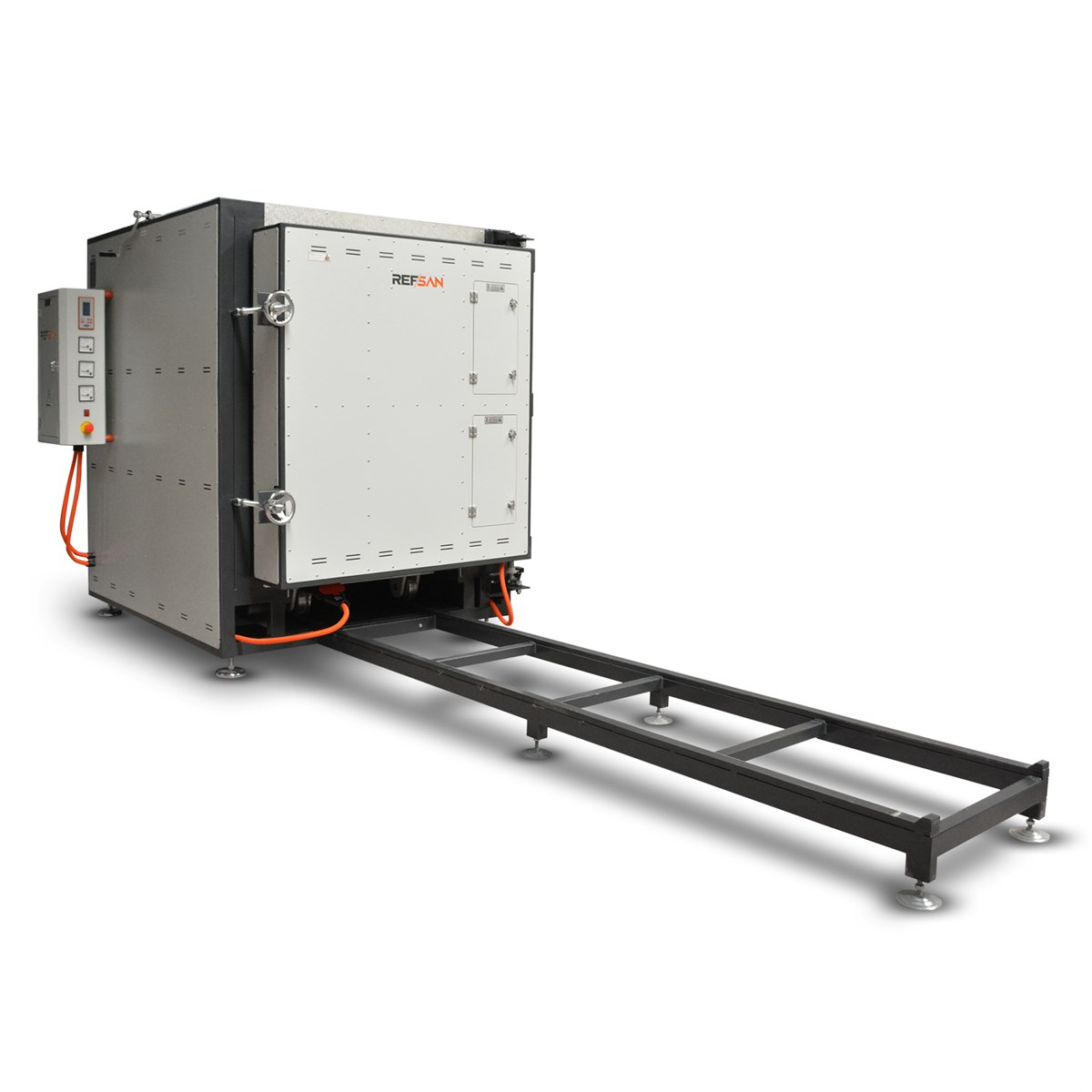

RSA750 TROLLEY KILN


Product Features

Heating elements are installed on both sides and at the base and positioned on the Ceramic Tube.

Long life of the heating elements is ensured as a result of adaptive wire calculations.
Fast rhythmization of the switching processes ensures precise heat dissipation.
Double coated cover with low external temperatures.
Lid contact switch with forced disconnection.
Insulation of the furnace chamber with lightweight firebrick and special backside isolation for low electricity consumption
6 surfaces inside the oven are completely alumina bricks, no fiber containing carcinogenic materials is used in the oven.
It lasts 3-4 times longer than ovens using fiber and saves a lot of electricity.
Infinitely adjustable air supply and discharge for short cooling times.
Air discharge place on the oven
The oven panel is enclosed.


Digital RF800/850/860 Programmer Features:
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that set value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.



Note

The place where the oven will be placed and the width required for installation must be set by you in advance.

Cables, fuses, etc. that will be required for the electrical line will be notified by our company, the place where the oven will be installed and electrical connections must be prepared up to the oven and the panel before the oven delivery.
The shelf system inside the oven is not included in the price.
304 or 310 quality stainless steel is recommended.


Transportation and Installation

Transportation will be done by the buyer. If it is desired to be provided by Refsan, it will be discussed mutually.

If the transportation will be organized by the customer, insurance is recommended.

The crane or forklift that will be needed during the unloading process will be provided by the buyer.

If the unloading will be done with Refsan vehicle, there is no need for a forklift or crane to lower it down since there is a lift behind it.



Optional Features

Geared trolley system

2. Car and rail system

Remote telephone operation system
Telephone notification system in case of malfunction
Automatic power cut-off system when the door is opened
Writing your company or your name on your oven with laser

Model
RS750
Kiln Type
KILN WITH TROLLEY
Volume
750 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
175x190x180cm
Inner Dimensions (WxDxH)
90x90x90cm
Weight
1200 Kg. (Ray Sistemi Hariç)
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X16 - Fuse (Amps) 3X80 Requirements for 400V RSH Model; Cable Thickness 5X16 - Fuse (Amps) 3X80
Connected Load kW
50kW 40kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
