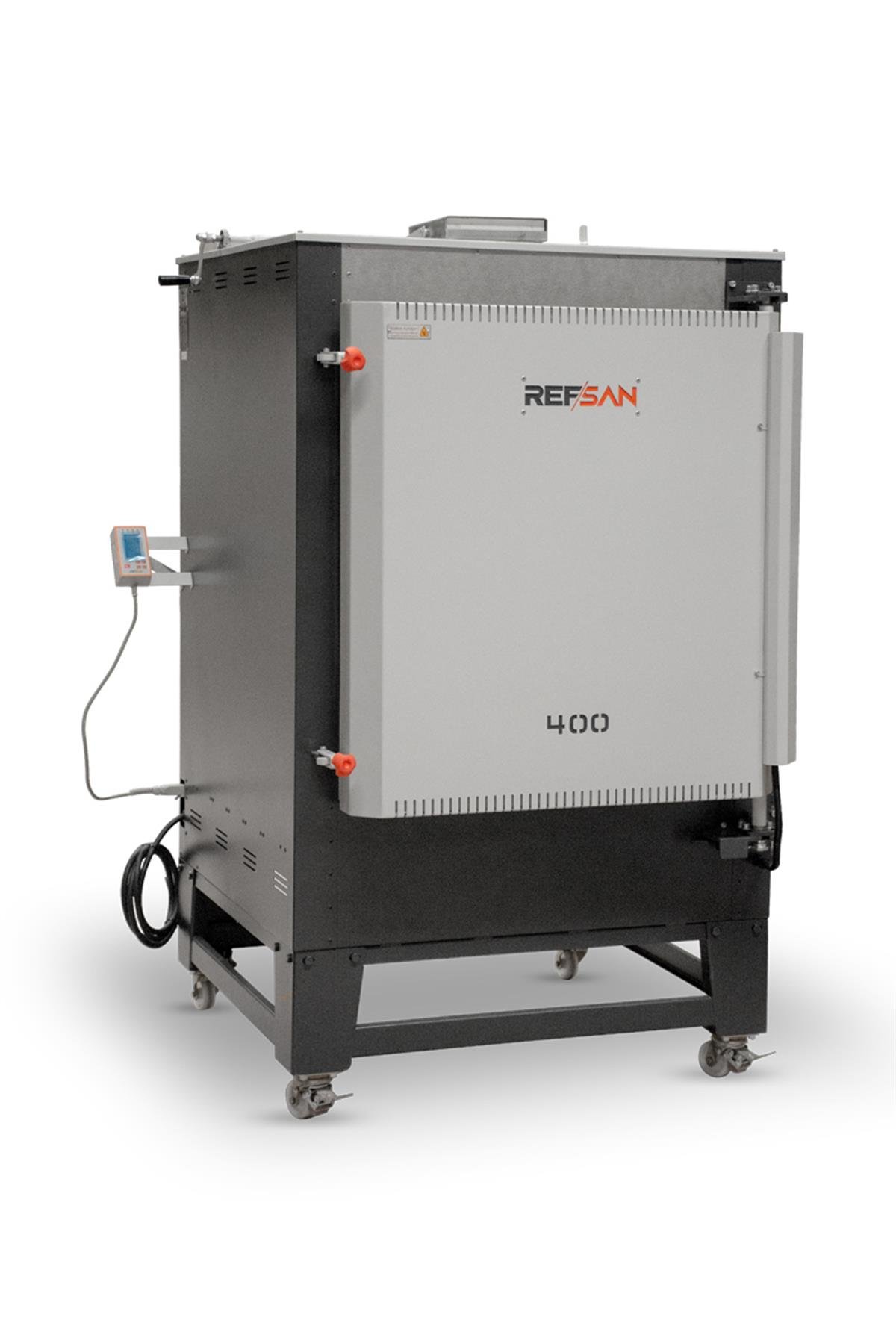

REFSAN RS400 CHAMBER TYPE KILN




Product Features

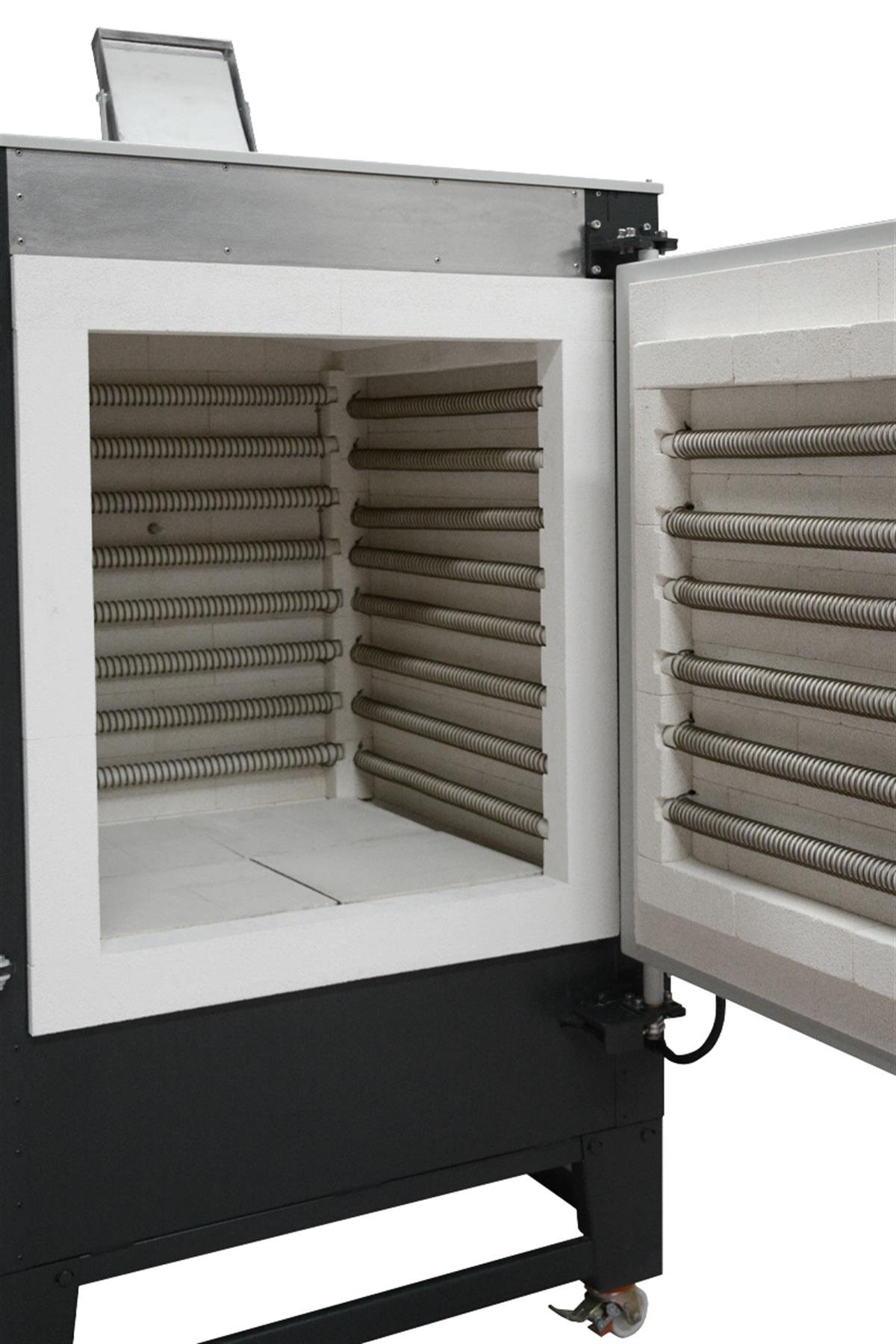

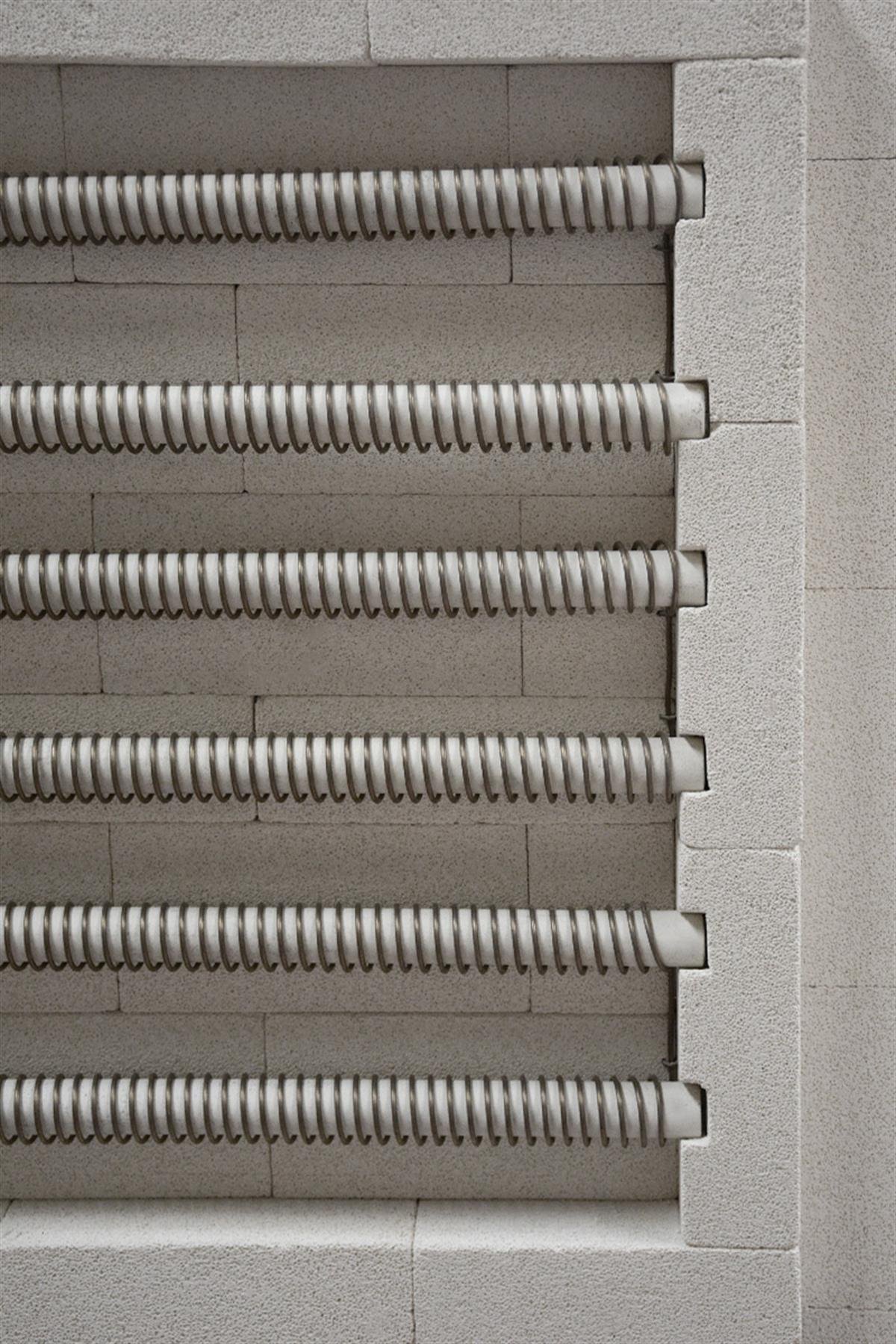

Heating elements are installed on both sides and at the base and positioned on the Ceramic Tube.

Long life of the heating elements is ensured as a result of adaptive wire calculations.
Fast rhythmization of switching operations ensures precise heat flow.
Double coated cover with low external temperatures.
Lid contact switch with forced disconnection.
Insulation of the furnace chamber with lightweight firebricks and special backside isolation for low electricity consumption
Complete Alumina Brick on 6 surfaces inside the furnace, absolutely no fiber containing carcinogenic materials is used inside the furnace.
Infinitely adjustable air supply and discharge for short cooling times.
Air discharge place on the kiln

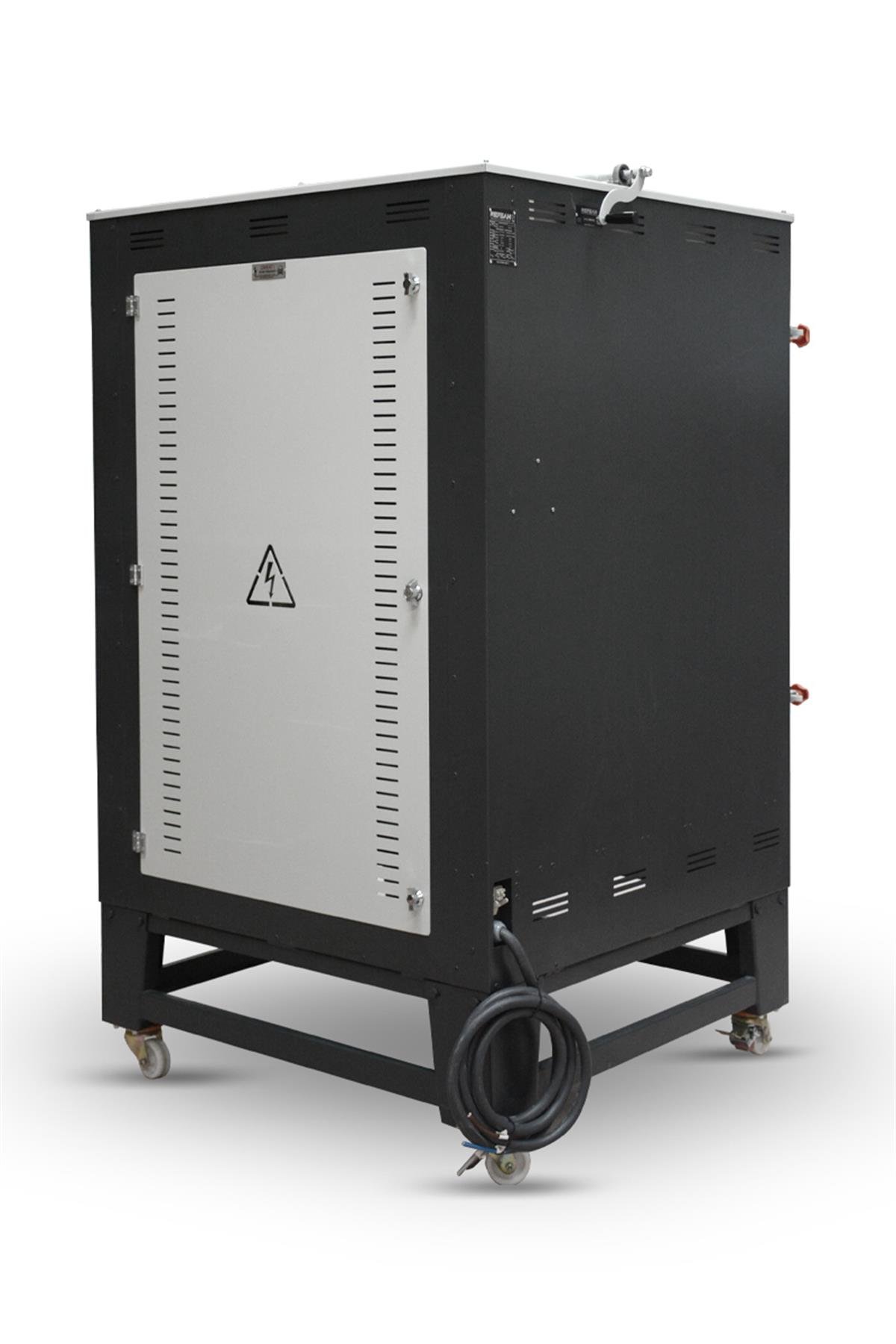

The kiln panel is enclosed at the back of the kiln.


Digital RF800/850/860 Programmer Features:
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that set value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.



Note

The place where the kiln will be placed and the width required for installation must be set by you in advance.

Cables, fuses etc. that will be required for the electrical line are notified by our company, the place where the kiln will be installed and the electrical connections must be prepared up to the kiln and the panel before the oven delivery.


Transportation and Installation

Transportation will be done by the buyer. If it is desired to be provided by Refsan, it will be discussed mutually.

If the transportation will be organized by the customer, insurance is recommended.

The crane or forklift that will be needed during the unloading process will be provided by the buyer.

If the unloading will be done with Refsan vehicle, there is no need for a forklift or crane to lower it down since there is a lift behind it.

Model
RS400 RSH400
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
400 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
110x120x190cm
Inner Dimensions (WxDxH)
70x70x80cm
Weight
675 kg
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X6 - Fuse (Amps) 3X40 Requirements for 400V RSH Model; Cable Thickness 5X10 - Fuse (Amps) 3X50
Connected Load kW
30kW 20kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Paint of Kiln
Electrostatic Powder Dye
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Door Lock
AVAILABLE
Wheels
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
60*60 cm.
