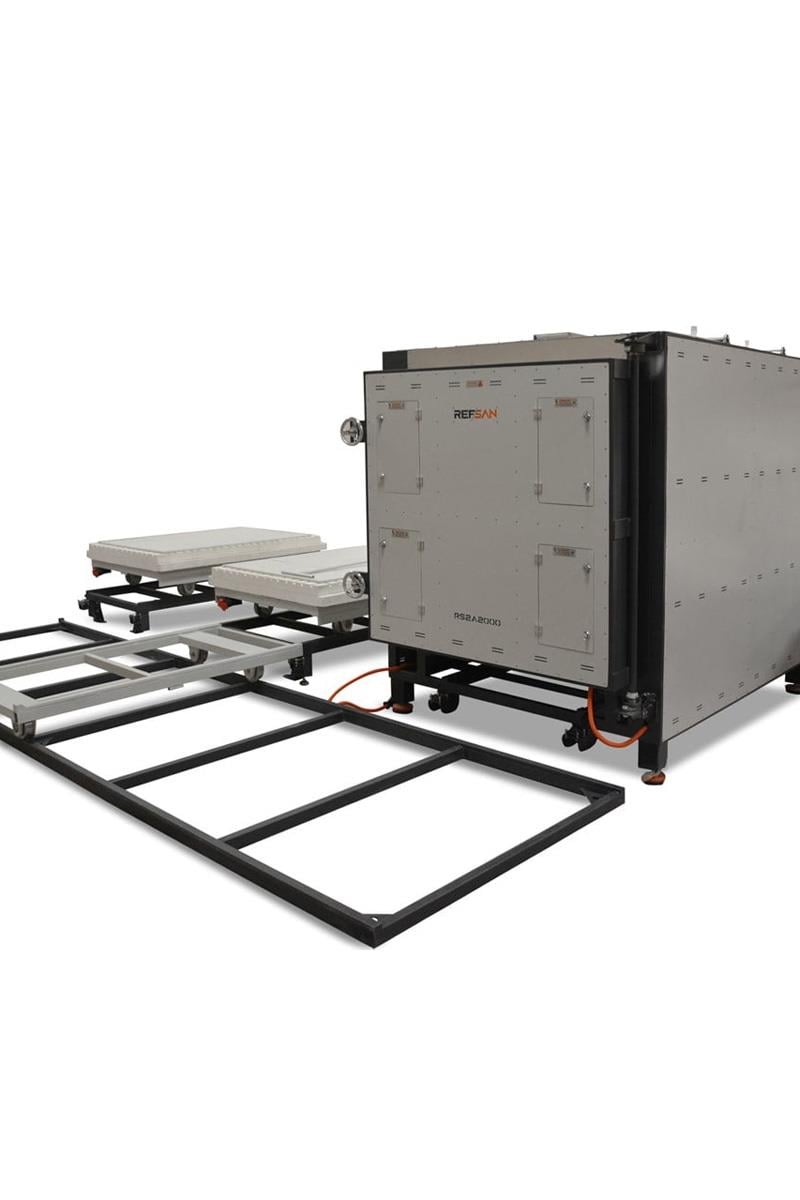

RS2A3.000 Trolley Kiln


Technical Specifications
Internal dimensions: 110x250x110cm - 3000 dm³ usable internal volume.
Power: 110 - 140 KW. (To be determined according to the work done)
Door: opens to the right or left.
Oven type: Chamber type, with two trolleys (front back door or single door system).

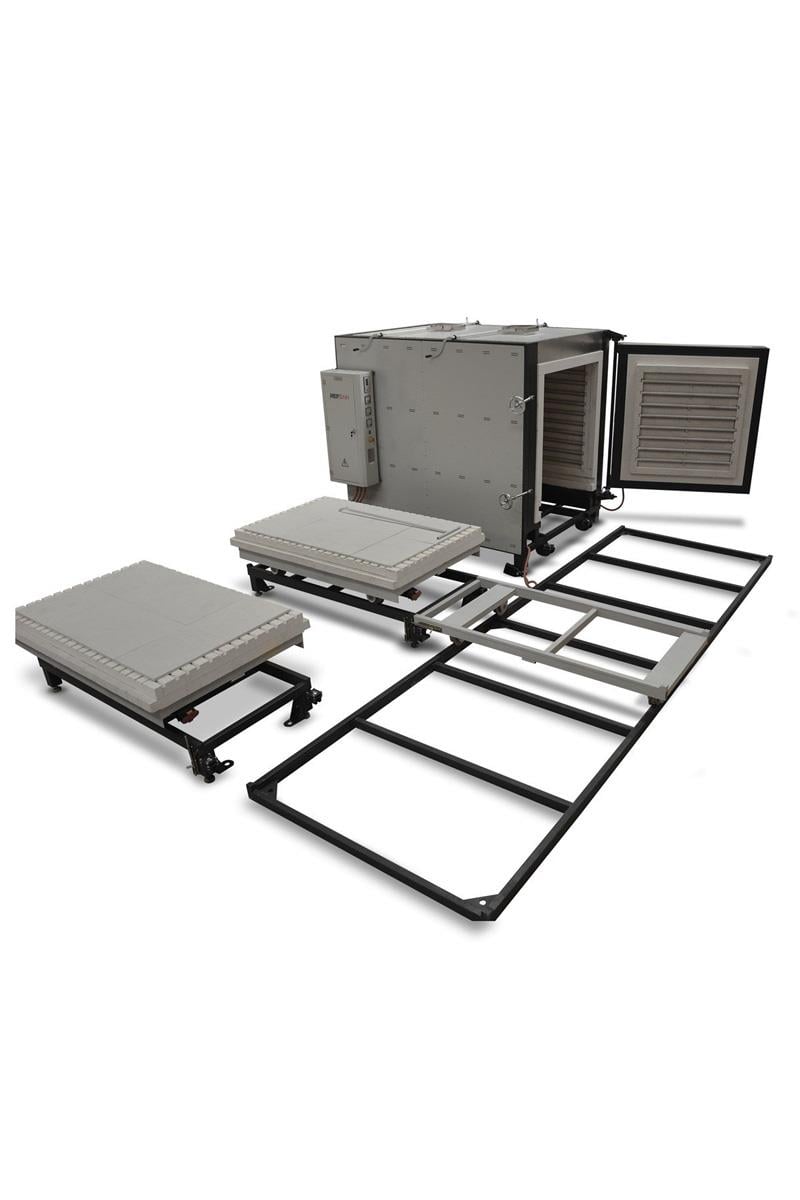

Two trolley system with manual movement on the rail, in and out of the oven.
Interior and exterior surfaces are electrostatic powder coated (baked at 200ºC), completely resistant to decay.
Oven floor level is at a suitable height from the ground for ease of operation.

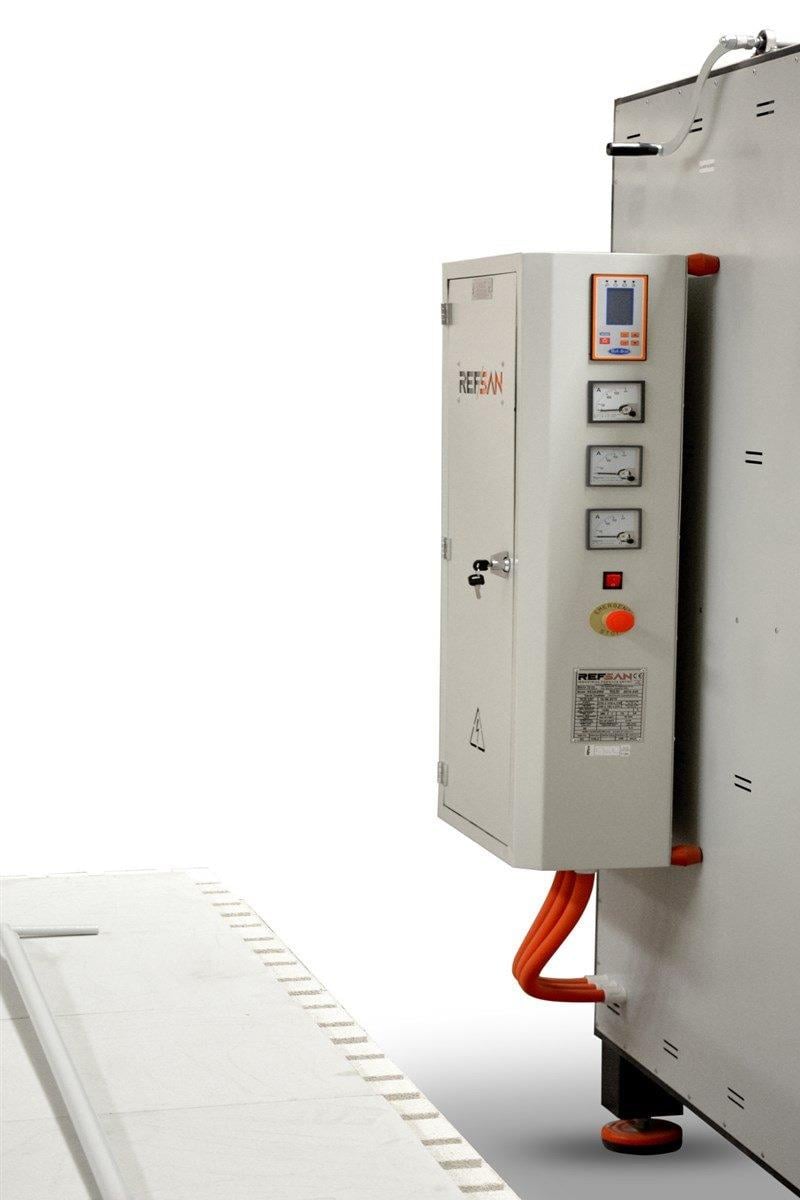

The control panel on the oven and oven electrical connections are protected.
40 mm ventilation gap on 4 surfaces. (provides easy heating and cooling of the oven, easy removal of gas and water vapor and long life of the metal parts)
With ventilation flap at the top and flap at the bottom (in proportion to the internal volume)
Control: RF800 is a digital programmer with 5 programs and 15 sets in each program. It also shows date, time, program, step, set temperature, time to exit, current temperature and remaining time.


Accessories-Optional
European shelf made of 400x500x15 mm cordierite material with 1200ºC resistance to be used in the oven.
5cm long, round, 1200ºC resistant, interlocking shelf leg (support) to be used in the oven.



Optional Features
Geared trolley system
2. Car and rail system



Kiln Type
KILN WITH TROLLEY
Volume
3000 LT. (3 m3)
Maximum Temperature
1200°C 1320°C
Power
400V
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Themocouple Count
3 (Floor+Middle+Top)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Contact Type
SSR
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Start-up on Any Desired Time
AVAILABLE
Automatically Continuation After Power Cut
AVAILABLE
Product Origin
TÜRKİYE
Automatically Exhaust Control
AVAILABLE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop
Kiln Shelves (Optional)
40*50 cm.
