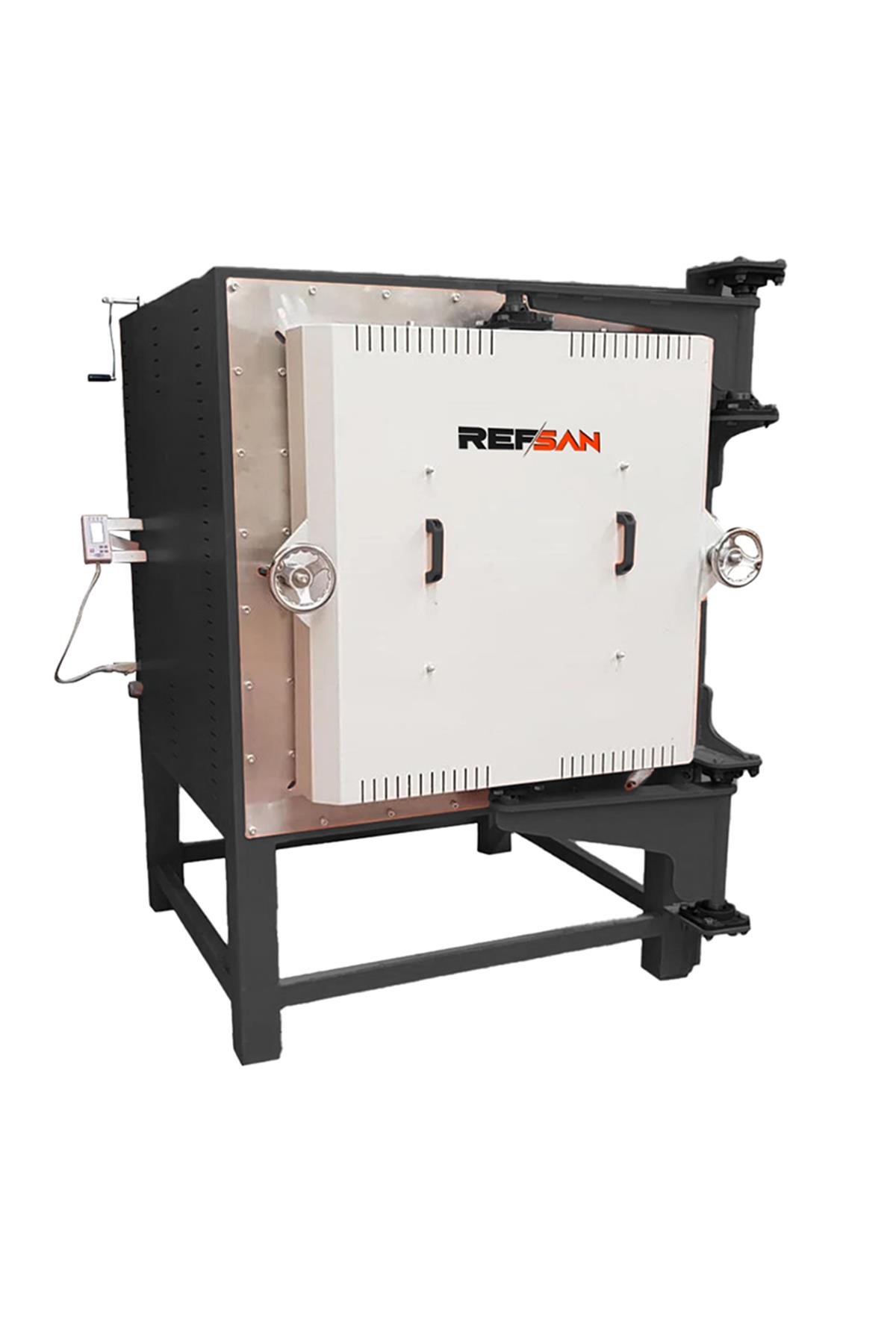

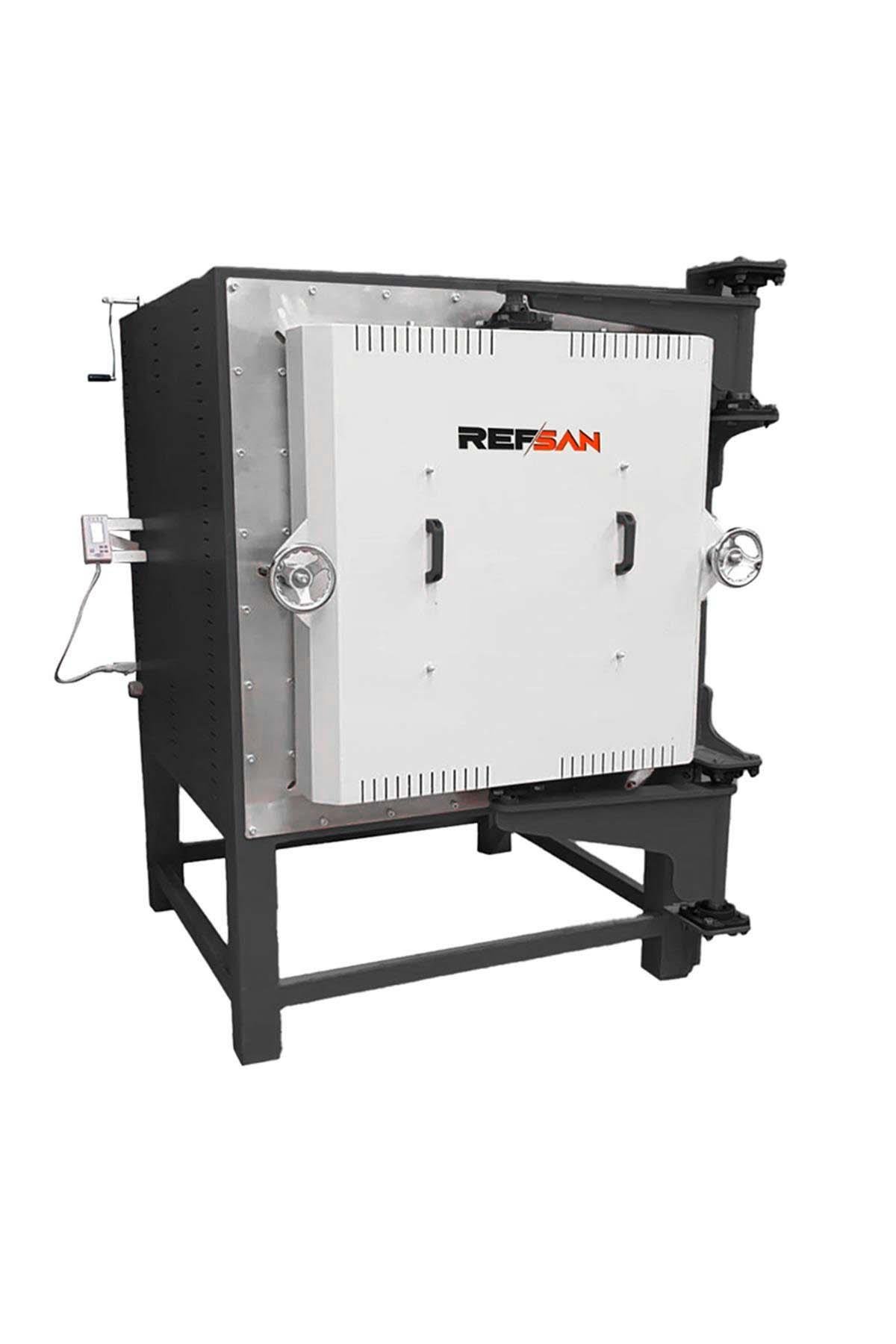

RS1000 SMELTING FURNACE
RS1000 SMELTING FURNACE

RS1.000 smelting - Casting Furnace



Heating elements are installed on both sides and positioned on the Ceramic Pipe
Long lifetime of the heating elements is ensured as a result of adaptive wire calculations
Silent operation of the heating system is ensured by solidstaterelais type relays
Fast rhythmization of switchgear processes results in precise heat flow
Double coated cover with low external temperatures
Lid contact switch with forced disconnection
Insulation of the kiln chamber with lightweight firebricks and special backside isolation for low electricity consumption
6 surfaces inside the kiln are completely Alumina Brick, there is absolutely no fiber containing carcinogenic materials inside the kiln.
Body sheets are made of precious and shaped steel sheet and painted with electrostatic paint
Infinitely adjustable air supply and discharge for short cooling times



Digital RF800/850/860 Programmer Features:
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that set value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.







Note
Elements that may cause problems such as doors and stairs that the kiln will pass to the place where it will be placed should be known and taken into consideration in advance.
The electrical connections at the place where the kiln will be operated must be ready and able to handle the power of the kiln.
This type of door opening is generally used in the foundry sector.
At high temperatures (900 - 1100 °C) the door is opened and the material is taken with tongs.
Kiln interior dimensions are made according to customer request.

Model
RS1000
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
1000 LT. (1 m3)
Maximum Temperature
1100°C
Inner Dimensions (WxDxH)
100x90x110cm
Weight
1430 kg
Power
400V
Connected Load kW
57kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Contact Type
SSR
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
Automatically Exhaust Control
AVAILABLE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
