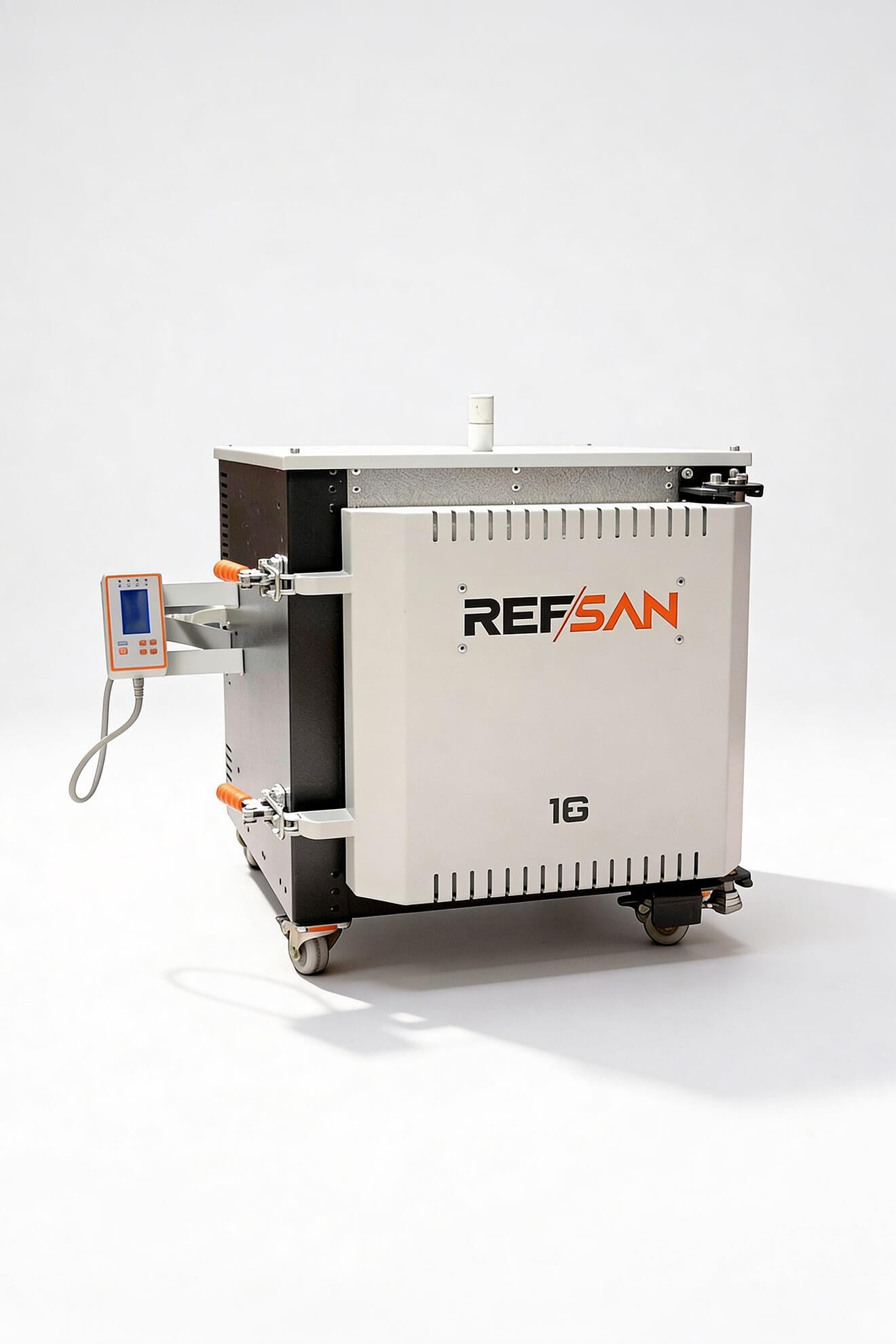

RD16 / RDH16 TEST KILN
RD16 / RDH16 TEST KILN
RD16 / RDH16 TEST KILN
RD16 / RDH16 TEST KILN
RD16 / RDH16 TEST KILN
RD16 / RDH16 TEST KILN

TEST KILNS



Test kilns are being used in many industrial processes, and they are working in many heating ranges. Their heating ranges specify according to the type of industrial processes. REFSAN has been producing test kilns for many industrial or laboratory processes between 0 to 1300°C.





All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years of technical Support

CE Certificate





Model
RD16
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
16 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
70x60x66cm
Inner Dimensions (WxDxH)
23x30x23cm
Weight
116 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse(Amps) 1X25
Connected Load kW
5kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Heating Sides
2 SIDES (LEFT+RIGHT)
Contact Type
SSR
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop
